Power Probe PPTM01AS Maestro Diagnostic Test Tool, 12V and 24V Systems

Power Probe PPTM01AS Maestro Diagnostic Test Tool, 12V and 24V Systems

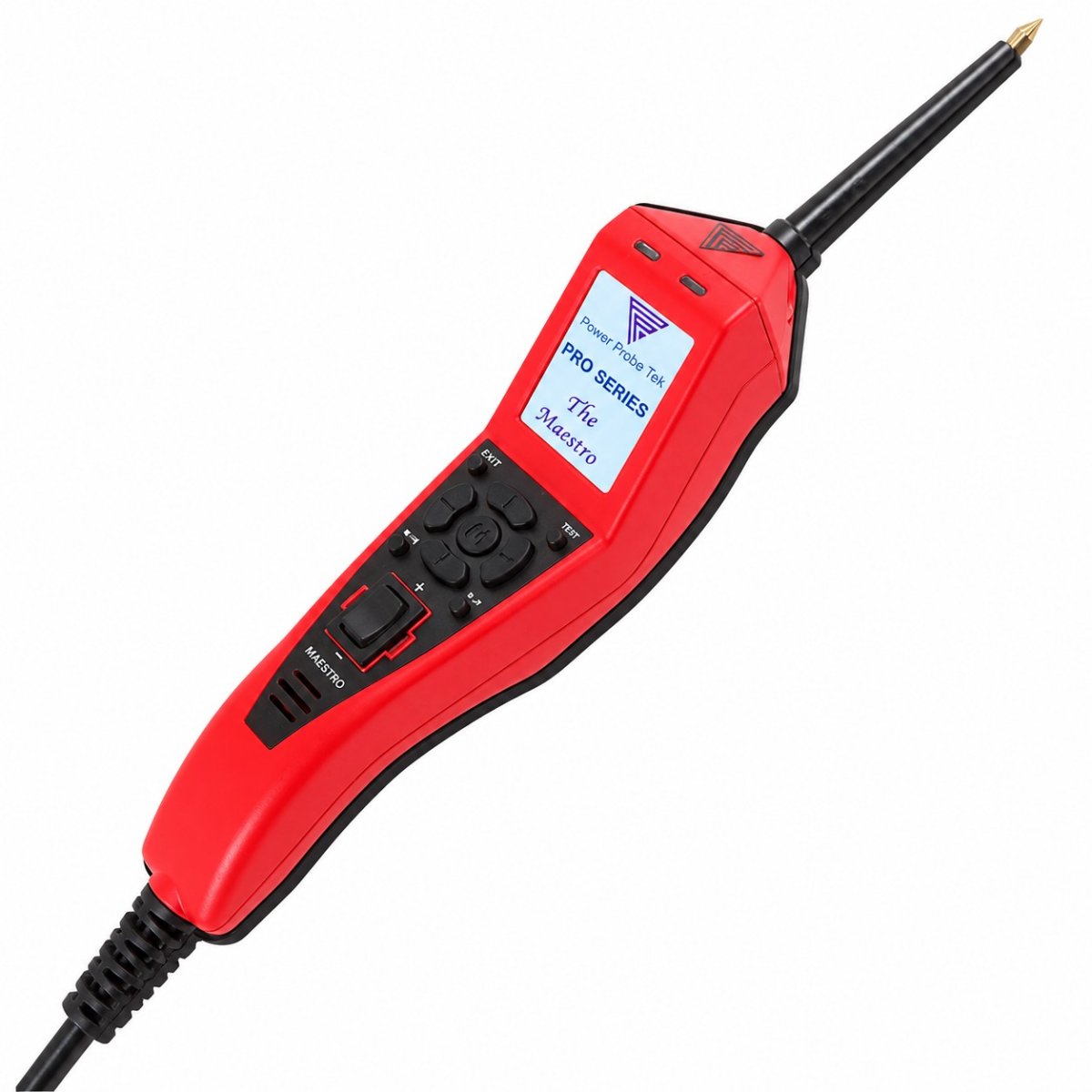

• Power Probe PPTM01AS Maestro is a diagnostic electronic circuit and component tester for automotive electrical troubleshooting. It combines multimeter functions, guided diagnostics, fuel injector testing, trace mode, and battery-supplied power or ground application.
• Features:
  • Connects with the Power Probe TEK App for wireless diagnostic functionality, visual trace recording, and screenshot data logging.
  • Trace mode offers oscilloscope-type measurements for electrical signal analysis.
  • DC voltmeter function can apply battery-supplied voltage or ground at the tool tip.
  • AC voltmeter functions include TRMS, peak-to-peak, min/max, frequency, and duty cycle readings.
  • Self-resetting 8 amp thermal circuit breaker protects the tool during powered circuit testing.
• Includes:
  • Power Probe Maestro
  • 4 inch probe tip
  • Battery clipset
  • Alligator clip adapter
  • Instruction manual
• Specifications:
  • Manufacturer: Power Probe
  • Part Number: PPTM01AS
  • UPC: 816724021647
  • EAN: 8435394784878
  • Product Type: Diagnostic test tool
  • System Voltage: 12V and 24V
  • Minimum Operating Voltage: 9 VDC
  • Maximum Operating Voltage: 30 VDC
  • Maximum Tip Voltage: 450 V
  • Voltage Measurement: -100 to 200 VDC/VAC
  • Resistance Measurement: 0.01 ohms to 10K ohms
  • Frequency Measurement: 1Hz to 9999Hz
  • Power Feed Test: Less than 30 mA
  • Probe Tip Resistance to Ground: 350K ohms
  • Computer Safe: 0.1 mA floating tip
  • Circuit Breaker: 8 amp thermal auto reset
  • Quantity: 1
• The Maestro Diagnostic Test Tool can also be referred to as automotive circuit tester, diagnostic circuit tester, component tester, electrical diagnostic tool, and Power Probe Maestro tester.

Power Probe develops automotive electrical diagnostic tools for technicians, including circuit testers, multimeters, circuit tracers, battery service tools, and EV diagnostic equipment for vehicle electrical troubleshooting.

Q: What app works with the PPTM01AS Maestro?
A: The PPTM01AS Maestro connects with the Power Probe TEK App for wireless diagnostic functionality, visual trace recording, and screenshot data logging.

Q: What system voltage does the Maestro operate on?
A: The Maestro operates on 12V and 24V systems.

Q: What components are included with PPTM01AS?
A: PPTM01AS includes the Power Probe Maestro, 4 inch probe tip, battery clipset, alligator clip adapter, and instruction manual.
