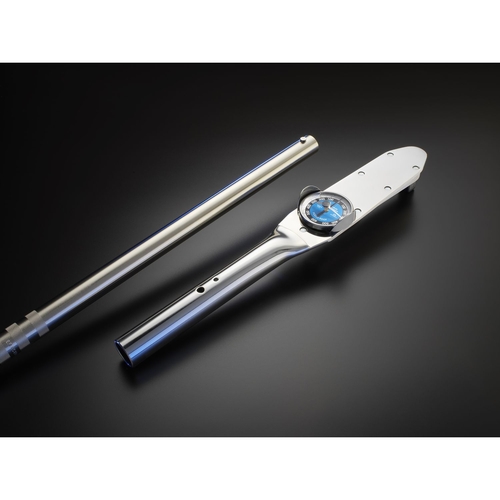

Precision Instruments D2F150HM 3/8" Drive Dial Type Torque Wrench, Fixed Drive, Memory Needle, 30 to 150 Pound-Inches

Precision Instruments D2F150HM 3/8" Drive Dial Type Torque Wrench, Fixed Drive, Memory Needle, 30 to 150 Pound-Inches

• Precision Instruments D2F150HM is a dial type torque wrench for measuring applied torque with a visible dial. It serves quality control testing, production torque checks, and breakaway torque applications where a memory pointer model is useful.
• Features:
  • Memory pointer retains the highest torque reading for reference.
  • Dial type wrench is accurate to 2% of reading from 20% of full scale to full scale in clockwise and counterclockwise directions.
  • Dial type wrench is not affected by the hand-hold position on the wrench.
  • All steel construction with nickel/chrome finish.
  • Meets or exceeds GGG-W-686C and ANSI B107.14M specifications.
• Specifications:
  • Manufacturer: Precision Instruments
  • Part Number: D2F150HM
  • Product Name: 3/8" Drive Dial Type Wrench
  • Product Type: Fixed-drive dial type torque wrench
  • Drive Size: 3/8"
  • Drive Type: Fixed drive
  • Primary Units: Pound-Inches
  • Torque Range: 30 to 150 Pound-Inches
  • Increments: 2.5 Pound-Inches
  • Memory Needle: Yes
  • Lighted: No
  • Overall Length: 9-29/32"
  • Effective Length: 8"
  • Width: 2-11/16"
  • Overall Height: 2-11/32"
  • Tool Weight: 1.13 Pounds
  • Weight With Plastic Case: 1.88 Pounds
  • Finish: Nickel/chrome
  • Accuracy: 2% of reading from 20% of full scale to full scale, clockwise and counterclockwise
  • Standards: GGG-W-686C, ANSI B107.14M
  • Quantity: 1 wrench
• The 3/8" Drive Dial Type Torque Wrench can also be referred to as dial torque wrench, fixed drive torque wrench, memory pointer torque wrench, 30 to 150 Pound-Inches torque wrench, and Precision Instruments D2F150HM wrench.

Precision Instruments was incorporated in 1938 to manufacture torsion bar dial type wrenches. The company operates two buildings with 50,000 square feet in Des Plaines, Illinois, handling machining, polishing, plating, assembly, and calibration on site.

Q: What does the memory pointer do?
A: The memory pointer retains the highest torque reading for reference after the pull.

Q: Is the D2F150HM lighted?
A: No. The D2F150HM is configured as a memory needle model without a light signal.

Q: What accuracy is stated for this dial torque wrench?
A: It is accurate to 2% of reading from 20% of full scale to full scale in clockwise and counterclockwise directions.
