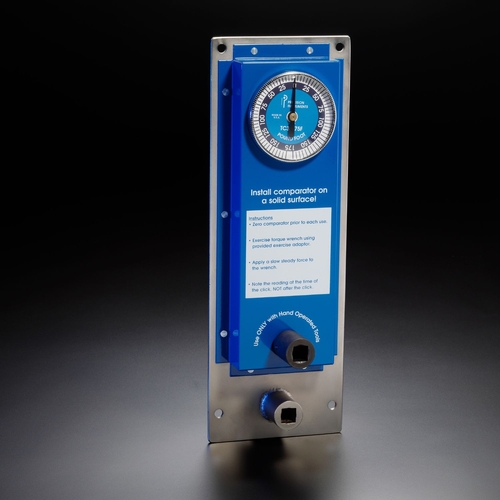

Precision Instruments TC4F600F 3/4" Drive Analog Torque Comparator, 120 to 600 Pound-Feet

Precision Instruments TC4F600F 3/4" Drive Analog Torque Comparator, 120 to 600 Pound-Feet

• Precision Instruments TC4F600F is an analog torque comparator for checking torque wrench output against a dial reading. It mounts to a stable work surface for controlled click and dial wrench comparison in shop, industrial, and quality control settings.
• Features:
  • Accurate within 2% of reading from 20% to 100% of full scale when used according to the manual.
  • Female square drive mounted to the baseplate is used to exercise the torque wrench before testing.
  • Comparator must be securely mounted to a flat, stable surface using all mounting holes in the baseplate.
  • Torque wrench square drive must be completely seated in the comparator before force is applied.
  • Meets or exceeds GGG-W-686C and ANSI B107.14M specifications.
• Specifications:
  • Manufacturer: Precision Instruments
  • Part Number: TC4F600F
  • Product Name: 3/4" Drive Torque Comparator
  • Product Type: Analog torque comparator
  • Drive Size: 3/4 Inch
  • Drive Type: Fixed drive
  • Primary Units: Pound-Feet
  • Capacity: 120 to 600 Pound-Feet
  • Full Scale Capacity: 600 Pound-Feet
  • Increments: 10 Pound-Feet
  • Length: 14.324 Inches
  • Width: 4.750 Inches
  • Overall Height: 3.634 Inches
  • Weight: 8.40 Pounds
  • Finish: Nickel/chrome
  • Accuracy: 2% of reading from 20% to 100% of full scale
  • Mounting Requirement: Secure to a flat, stable surface using all mounting holes in the baseplate
  • Standards: GGG-W-686C, ANSI B107.14M
  • Quantity: 1 torque comparator
• The 3/4" Drive Analog Torque Comparator can also be referred to as torque comparator, analog torque comparator, torque wrench tester, 120 to 600 Pound-Feet comparator, and Precision Instruments TC4F600F comparator.

Precision Instruments manufactures torque tools including split-beam click wrenches, micrometer click wrenches, dial wrenches, drivers, multiplier-driven indicators, torque comparators, and service parts for vehicle, industrial, quality control, airplane maintenance, and bottling markets.

Q: How should the TC4F600F be mounted for use?
A: It must be securely mounted to a flat, stable surface using all mounting holes in the baseplate.

Q: What is the baseplate female square drive used for?
A: It is used to exercise the torque wrench before testing; the manual recommends applying torque at least three times at roughly 50% of full scale.

Q: Can impact tools be used with this torque comparator?
A: No. The user manual states that using the comparator with impact tools will destroy it.
