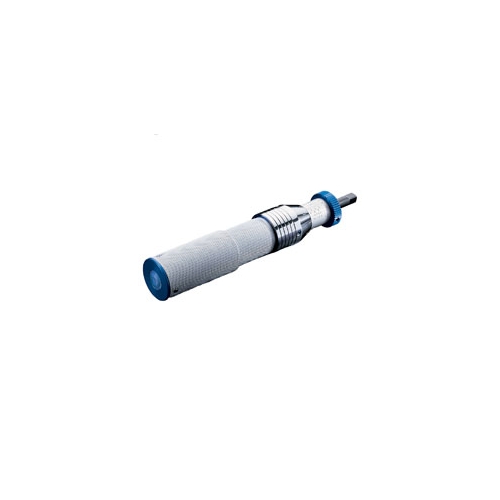

Precision Instruments MD1F35H 1/4" Fixed Drive Fully-Releasing Torque Driver, 5 - 35 lb.in.

Precision Instruments MD1F35H 1/4" Fixed Drive Fully-Releasing Torque Driver, 5 - 35 lb.in.

• Torque drivers are more convenient than torque wrenches for some applications. Delicate low-torque applications such as fuel injectors and fasteners used in plastics have extremely tight tolerance requirements, and a torque driver is ideally suited for those applications without hand-hold sensitivity.
• Features:
  • More convenient than torque wrenches for some applications.
  • Ideally suited for delicate low-torque applications where tolerance is extremely tight.
  • Low-torque examples include fuel injectors and fasteners used in plastics.
  • Not hand-hold sensitive.
• Specifications:
  • Manufacturer: Precision Instruments
  • Part Number: MD1F35H
  • Product Type: Fully-releasing torque driver
  • Drive Size: 1/4"
  • Drive Type: Fixed drive
  • Primary Units: lb.in.
  • Torque Range: 5 - 35 lb.in.
  • Increments: 0.5 lb.in.
  • Maximum Length: 6-27/64"
  • Minimum Height: 8-7/64"
  • Width: 2-9/32"
  • Finish: Nickel / Chrome
  • Packaging Type: Plastic case
  • Product Weight: 0.90 lb
  • Weight With Plastic Case: 1.50 lb
  • Standard: MIL-W-26497C
  • Quantity: Each
• The 1/4" Fixed Drive Fully-Releasing Torque Driver can also be referred to as 1/4 inch torque driver, fully releasing torque screwdriver, 5-35 lb.in. torque driver, fixed drive torque driver, and low-torque screwdriver.

Precision Instruments manufactures torque wrenches, torque drivers, torque testers, and related torque products from Des Plaines, Illinois. The company was incorporated in 1938 and performs machining, assembly, and calibration on site.

Q: What applications are noted for MD1F35H?
A: Delicate low-torque applications include fuel injectors and fasteners used in plastics.

Q: Is the torque driver hand-hold sensitive?
A: No. The fully-releasing driver is not hand-hold sensitive.

Q: What increment does the scale use?
A: The scale uses 0.5 lb.in. increments.
