Precision Instruments C5D600F Split-Beam Click Torque Wrench, 1" Drive, 200-600 ft-lb

Precision Instruments C5D600F Split-Beam Click Torque Wrench, 1" Drive, 200-600 ft-lb

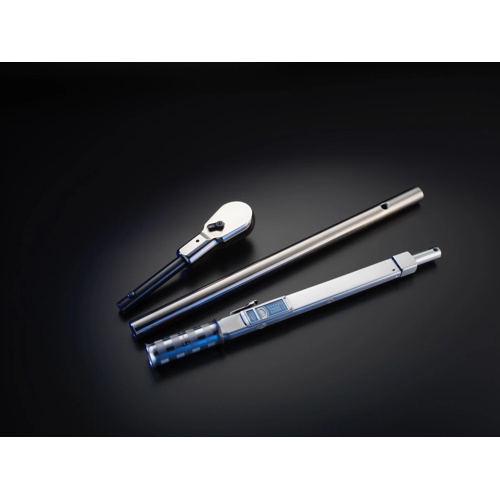

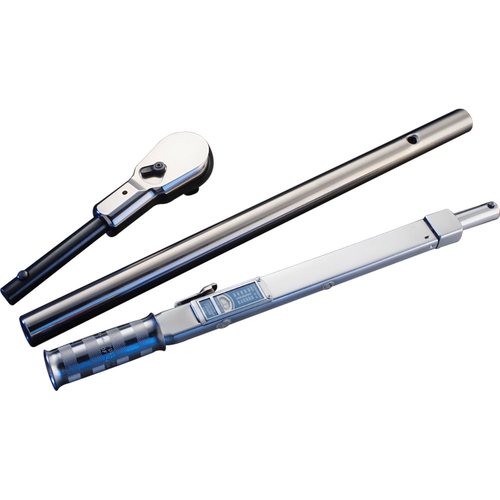

• The Precision Instruments C5D600F split-beam click torque wrench is a 1 inch drive tool with a 200-600 ft-lb torque range, built for heavy-duty industrial bolting, maintenance, and assembly where high-torque accuracy is required. This tool features a detachable ratchet head, rugged welded construction, and no internal spring mechanism for enhanced durability.
• Features:
  • Torque range 200 to 600 ft-lb provides coverage for heavy fasteners and industrial applications.
  • 1 inch square drive and detachable ratchet head enable use with standard heavy sockets and flexibility in configuration.
  • Split-beam architecture minimizes internal moving parts; fewer welded components mean greater durability and resistance to rugged use environments.
  • Accurate and repeatable with a micro-adjustable setting mechanism (increments 10 ft-lb) and calibration certificate available.
  • Overall length 48-29/64 Inch, effective length 44-31/32 Inch, weight 11.76 lb (tool alone) for leverage and stability in high torque applications.
• Specifications:
  • Manufacturer: Precision Instruments
  • Part Number: C5D600F
  • Product Type: Split-Beam Click Torque Wrench
  • Drive Size: 1 Inch square drive
  • Torque Range: 200 to 600 ft-lb
  • Overall Length: 48-29/64 Inch
  • Effective Length: 44-31/32 Inch
  • Weight: 11.76 lb (tool without case) / 14.18 lb with plastic case
  • Finish: Nickel/Chrome
  • System Compatibility / Application: Heavy industrial bolting, aerospace structural joints, machinery assembly and maintenance where 1 inch drive torque tools are specified.
• The Split-Beam Click Torque Wrench can also be referred to as 1 inch drive high-capacity torque wrench, industrial click torque wrench 200-600 ft-lb, Precision Instruments C5 series torque tool, and split-beam heavy duty torque wrench.

Precision Instruments manufactures precision torque-measuring and indicating tools for automotive, industrial, and calibration laboratory use. Their split-beam and micrometer click wrench product lines are widely accepted in heavy-duty bolting and torque control applications.

Q: What is the difference between a split-beam and micrometer click torque wrench?
A: A split-beam click torque wrench (like the C5D600F) uses welded beam construction with minimal spring or internal parts for durability in industrial settings, whereas a micrometer click wrench uses a scale adjustment and internal spring mechanism suited to lighter duty applications.

Q: Is the range exactly 200-600 ft-lb or in lb?
A: The manufacturer lists the C5D600F at a torque range from 200 to 600 ft-lb (not in lb) for the 1 inch drive version.

Q: Can this wrench be calibrated and what service kit is available?
A: Yes, calibration services are available; the service kit for the 1 inch drive split-beam C5 series is R54AR-RK.
