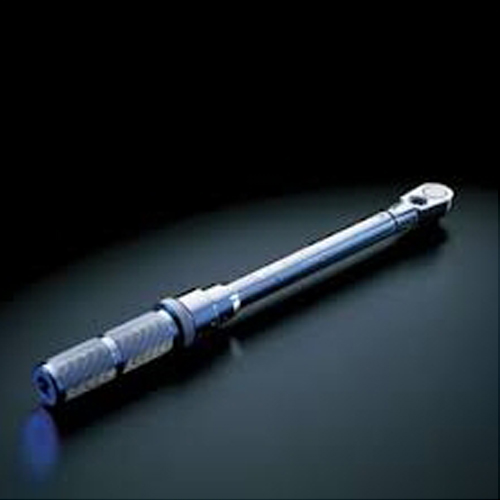

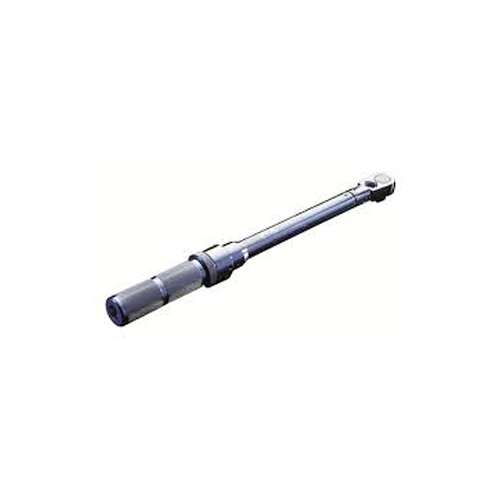

Precision Instruments M1R200HX Micrometer Click Torque Wrench, 1/4" Drive, 30 to 200 in lb

Precision Instruments M1R200HX Micrometer Click Torque Wrench, 1/4" Drive, 30 to 200 in lb

• Precision Instruments M1R200HX is a micrometer adjustable click torque wrench for fastener tightening in the 30 to 200 in lb range. The rigid ratchet with flexible head and patented roller release mechanism provide repeatable clicks and long calibrated life for automotive, machinery, and electronics assembly.
• Features:
  • 30 to 200 in lb adjustable range to cover common small fasteners with controlled, audible click at set torque
  • Micrometer scale enables precise setpoints and quick repeats to help maintain specification compliance across jobs
  • Rigid ratchet with flexible head helps access tight spaces while keeping the drive square aligned under load
  • Patented roller release mechanism reduces wear for consistent release and extended service life
  • Accuracy rated within 3 percent from 20 percent of full scale to full scale for reliable torque application
• Specifications:
  • Manufacturer: Precision Instruments
  • Part Number: M1R200HX
  • Product Type: Micrometer click torque wrench
  • Drive Size: 1/4 Inch
  • Torque Range: 30 to 200 in lb
  • Head / Mechanism: Rigid ratchet, flexible head; roller release mechanism
  • Overall Length: 9.87 Inch (approximate)
  • Accuracy: ±3 percent from 20 percent to full scale
  • System Compatibility / Application: General torqueing of small fasteners in automotive service, machinery maintenance, and electronics where inch pound values are specified
  • Alternate / Cross Reference: PRIM1R200HX (distributor ordering code for M1R200HX)
• The Micrometer Click Torque Wrench can also be referred to as micrometer click torque wrench, 1/4 inch drive torque wrench, 30 to 200 in lb torque wrench, precision torque wrench, and adjustable click torque wrench.

Precision Instruments manufactures professional torque tools and accessories used in automotive, aerospace, and industrial maintenance, including micrometer click wrenches and split beam designs known for durable mechanisms and dependable accuracy.

Q: Is PRIM1R200HX the same as M1R200HX?
A: Yes. PRIM1R200HX is a distributor ordering code that corresponds to the manufacturer model M1R200HX.

Q: What accuracy should I expect?
A: The M series micrometer click wrenches are rated to within 3 percent from 20 percent of full scale to full scale when properly used and maintained.

Q: What is the overall length and drive?
A: The wrench has a 1/4 Inch drive and an overall length of about 9.87 Inch, suited for access in compact spaces.
