RTi R500DMP-LPM-G DMP Regulator, 1/2 inch NPT, 0-100 PSI Gauge

RTi R500DMP-LPM-G DMP Regulator, 1/2 inch NPT, 0-100 PSI Gauge

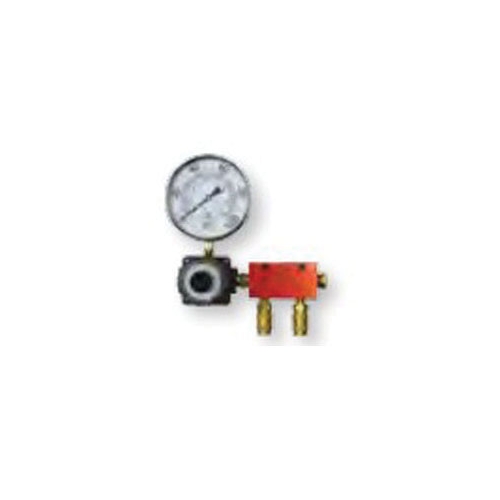

• RTi R500DMP-LPM-G is a DMP regulator for compressed air pressure control in shop air systems. The regulator uses a multiport manifold with quick disconnects and an oversized gauge for pressure adjustment and monitoring.
• Features:
  • Oversized 0-100 PSI gauge has a glass face for clear pressure reading.
  • MA500-4 multiport manifold includes quick disconnects for air line connection points.
  • Adjustment knob rapidly removes downstream pressure when turned.
  • Two 1/4 inch NPT gauge ports are usually used for additional outlets.
  • 1/2 inch NPT inlet and outlet ports connect the regulator into compatible compressed air systems.
• Specifications:
  • Manufacturer: Reading Technologies, Inc.
  • Part Number: R500DMP-LPM-G
  • Brand: RTi
  • Product Type: DMP regulator
  • Gauge Range: 0-100 PSI
  • Gauge Face: Glass
  • Manifold: MA500-4 multiport manifold
  • Gauge Ports: Two 1/4 inch NPT ports
  • Inlet Size: 1/2 inch NPT
  • Outlet Size: 1/2 inch NPT
  • Quantity: 1
• The DMP Regulator can also be referred to as compressed air regulator, shop air regulator, RTi regulator, multiport air regulator, and air pressure regulator with gauge.

Reading Technologies, Inc. manufactures compressed air treatment products, including filters, dryers, regulators, and accessories for automotive refinishing, industrial compressed air, and pneumatic equipment applications.

Q: What gauge range does the R500DMP-LPM-G use?
A: The R500DMP-LPM-G uses an oversized 0-100 PSI gauge with a glass face.

Q: What manifold is included on this regulator?
A: The regulator includes an MA500-4 multiport manifold with quick disconnects.

Q: What are the inlet and outlet port sizes?
A: The inlet and outlet ports are 1/2 inch NPT.
