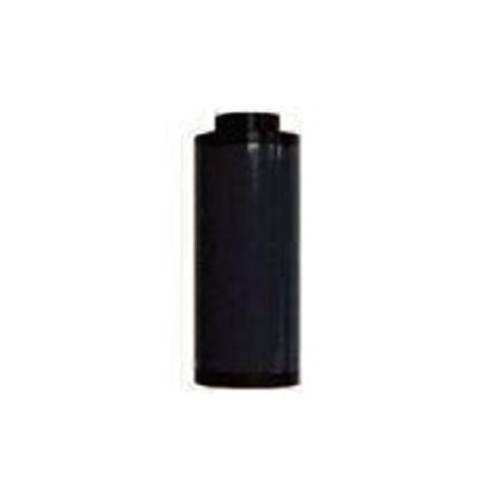

Reading Technologies 3C-150 Second-Stage Coalescing Filter Replacement Element, 0.01 Micron, 150 SCFM

Reading Technologies 3C-150 Second-Stage Coalescing Filter Replacement Element, 0.01 Micron, 150 SCFM

• This replacement coalescing element is used in compatible Reading Technologies Eliminizer and Eliminex compressed air filtration units for fine oil and particulate removal.
• Features:
  • Borosilicate coalescing media provides the filtration element construction.
  • Element dimensions are 2.75" diameter by 5.25" high.
  • Rated flow capacity is 150 SCFM at 100 psi.
• Specifications:
  • Manufacturer: Reading Technologies
  • Part Number: 3C-150
  • Product Type: Replacement Coalescing Filter Element
  • Stage: Second Stage
  • Filter Rating: 0.01 Micron
  • Flow Capacity: 150 SCFM at 100 psi
  • Material: Borosilicate
  • Diameter: 2.75"
  • Height: 5.25"
  • Compatible Systems: Eliminizer and Eliminex Coalescing Units
  • UPC: 696450069140
• The Reading Technologies 3C-150 Replacement Coalescing Filter Element can also be referred to as compressed air coalescing element, second-stage filter element, 0.01 micron air filter element, 150 SCFM filter element, and coalescer replacement element.

Reading Technologies manufactures compressed air treatment equipment, including coalescing filters, particulate filters, dryers, separators, drains, and replacement filtration components for industrial compressed air systems.

Q: What filtration rating does the Reading Technologies 3C-150 provide?
A: The element has a 0.01 micron filtration rating.

Q: What is the rated flow capacity of the 3C-150?
A: The rated flow capacity is 150 SCFM at 100 psi.

Q: What are the dimensions of the 3C-150 element?
A: The element measures 2.75" in diameter and 5.25" high.

Q: What filtration systems use the 3C-150 element?
A: It is a replacement element for compatible Reading Technologies Eliminizer and Eliminex coalescing units.
