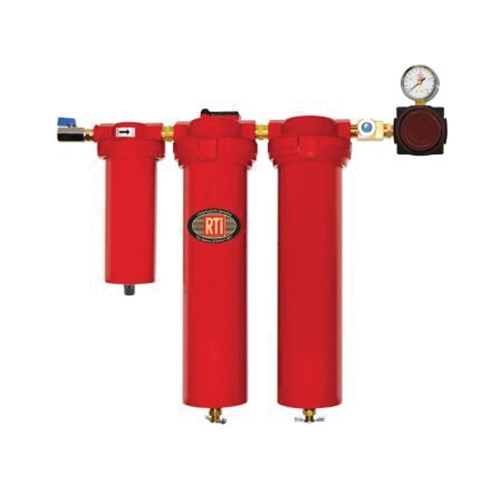

RTi EH7000-4R Eliminator II 3-Stage Desiccant Dryer, 1/2 inch Regulator and Gauge Assembly, 30 SCFM

RTi EH7000-4R Eliminator II 3-Stage Desiccant Dryer, 1/2 inch Regulator and Gauge Assembly, 30 SCFM

• RTi EH7000-4R is a compressed air desiccant dryer for paint booths and prep stations. The unit removes water, dirt, oil, and water vapor from compressed air used for refinishing and shop air applications.
• Features:
  • Three-stage filtration includes activated carbon pre-filtering, coalescing filtration, and contained desiccant drying.
  • 0.01 micron coalescer removes fine particulate and oil aerosols from compressed air.
  • Contained desiccant cartridge lowers humidity to a -40 F dew point with no desiccant dust migration.
  • Spin-on and spin-off elements allow tool-free service access.
  • Automatic drain on the first stage and manual petcock drains on the second and third stages manage collected moisture.
• Specifications:
  • Manufacturer: RTi
  • Part Number: EH7000-4R
  • Product Type: 3-stage desiccant dryer
  • Series: Eliminator II
  • Port Size: 1/2 inch
  • Flow Capacity: 30 SCFM at 100 PSI
  • Maximum Pressure: 150 PSIG
  • Dryer Capacity: -40 F dew point
  • Filter Capacity: 0.01 micron and larger
  • Oil Absorption: 0.003 ppm
  • Differential Pressure: Less than 5.0 PSID at rated flow
  • Regulator: 1/2 inch regulator and gauge assembly
  • Applications: Paint booths and prep stations
  • Quantity: 1
• The Eliminator II 3-Stage Desiccant Dryer can also be referred to as compressed air desiccant dryer, paint booth air dryer, RTi air dryer, 3-stage filter dryer, and compressed air moisture filter.

Reading Technologies, Inc. manufactures compressed air treatment products, including filters, dryers, regulators, and accessories for automotive refinishing, industrial compressed air, and pneumatic equipment applications.

Q: What shop applications is the EH7000-4R used for?
A: The EH7000-4R is used in paint booths and prep stations where dry, oil-free compressed air is required.

Q: What filtration stages are included?
A: The dryer includes activated carbon pre-filtering, coalescing filtration, and contained desiccant drying.

Q: What replacement elements are used with this dryer?
A: The listed replacement elements are 4P-060 for the first stage, 3C-090 for the second stage, and DE401 for the third stage.
