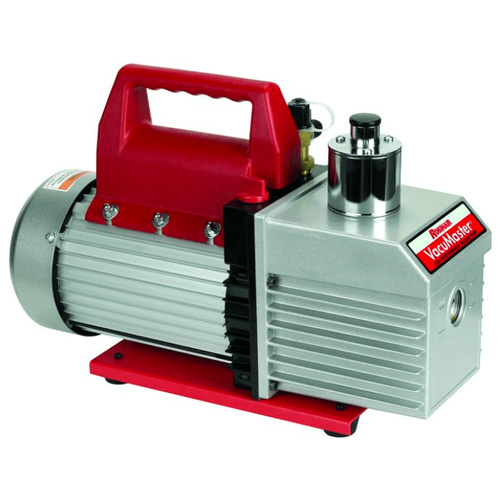

Robinair 15800 VacuMaster 8 CFM Vacuum Pump, 2-Stage, 115V

Robinair 15800 VacuMaster 8 CFM Vacuum Pump, 2-Stage, 115V

• Its 2-stage rotary vane design offers powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time. A heavy-duty sealed-bearing, high-torque motor aids startup and operation, while angled oil drain, easy-view sight glass, and top oil fill features make oil service more accessible.
• Features:
  • 2-stage rotary vane design delivers powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time.
  • Heavy-duty sealed-bearing, high-torque motor for easy startup and efficient operation.
  • Angled oil drain valve for faster, more complete draining.
  • Easy-view sight glass makes oil levels visible.
  • Top oil fill port for better access when refilling oil.
• Specifications:
  • Manufacturer: Robinair
  • Part Number: 15800
  • UPC: 637335035287
  • Product Type: Vacuum pump
  • Series: VacuMaster
  • Free Air Displacement: 8 CFM
  • Factory Micron Rating: 35 microns
  • Stages: 2
  • Intake Fitting: 1/4" MFL and 3/8" MFL
  • Oil Capacity: 18.6 ounces
  • Motor Size: 1 hp
  • Voltage: 115V 60 Hz
  • Approval: CSA
  • Recommended Use: Up to 70 tons (246 kW)
  • Cord Length: 6 ft
  • Dimensions: 16" H x 6" W x 10" L
  • Product Weight: 37 lb
  • Quantity: Each
• The VacuMaster 8 CFM Vacuum Pump can also be referred to as A/C vacuum pump, HVAC vacuum pump, two-stage vacuum pump, rotary vane vacuum pump, and refrigerant system evacuation pump.

Robinair is a Bosch Automotive Service Solutions brand focused on automotive and HVAC/R air conditioning service equipment, including refrigerant recovery, recycling, recharge machines, vacuum pumps, leak detection, manifolds, gauges, and service tools.

Q: What intake fittings are on the Robinair 15800?
A: The intake fittings are 1/4" MFL and 3/8" MFL.

Q: What oil capacity does the pump have?
A: The oil capacity is 18.6 ounces.

Q: What refrigerant systems should not be used with this pump?
A: Do not use it with ammonia or lithium bromide systems, A4L, or other flammable refrigerants.
