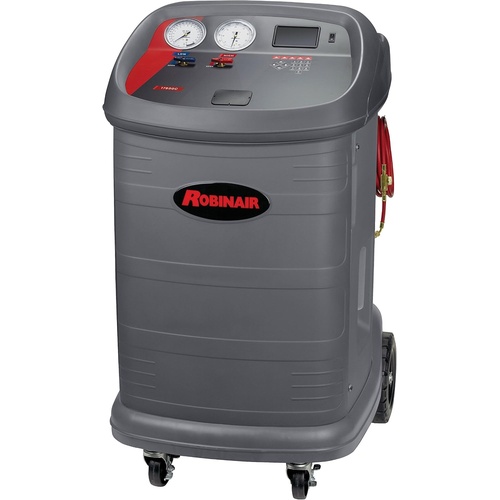

Robinair 17800C Multi-Refrigerant Recover, Recycle, Recharge Machine, 5 CFM, 115VAC 60Hz

Robinair 17800C Multi-Refrigerant Recover, Recycle, Recharge Machine, 5 CFM, 115VAC 60Hz

• Prompts lead operators through programming and signal when to change the filter-drier, vacuum pump oil, and compressor oil. The machine automatically adjusts from liquid to vapor for efficient recovery, weighs recovered refrigerant, provides tank overfill protection, and has 6 CFM capacity for evacuation before recharging.
• Features:
  • Prompts lead you through programming and signal when it is time to change the filter-drier, vacuum pump oil, and compressor oil.
  • Automatically adjusts from liquid to vapor for efficient recovery.
  • Recharges to factory specifications, weighs recovered refrigerant, and provides tank overfill protection.
  • 6 CFM capacity thoroughly evacuates the system, readying it for recharging.
  • Rotates to one side for 1/4 inch fittings and to the other for 1/2 inch Acme fittings to prevent mixing of refrigerants.
• Includes:
  • 17800C ACS machine
  • 50 lb general recovery tank
  • Red tank fill hose
  • Blue tank fill hose
  • Yellow tank air purge hose
  • 18 ft red service hose with 1/4" FFL connector
  • 18 ft blue service hose with 1/4" FFL connector
  • Operators manual
  • Robinair Service Center list
• Specifications:
  • Manufacturer: Robinair
  • Part Number: 17800C
  • UPC: 637335046269
  • Product Type: Multi-refrigerant recover, recycle, recharge machine
  • Voltage: 115VAC, 60Hz
  • Operating Temperature Range: 50 to 105 F (11 to 41 C)
  • Recovery Rate: Vapor 0.5 lb/min and liquid 1 lb/min
  • Vacuum Pump: 6 CFM
  • Hose Length: 18 ft
  • Recycling Filter Capacity: 300 lb refrigerant capacity
  • External Cylinder: 50 lb generic recovery tank; 40 lb capacity
  • Dimensions: 47" H x 26" W x 30" D
  • Product Weight: 280 lb without tank
  • Certification: UL 1963
  • Compatible Refrigerants: R12, R22, R134A, R401A, R401B, R402A, R402B, R404A, R407A, R407B, R407C, R410A, R500, R502, and R507
  • Optional Printer: 30038
  • Quantity: Each
• The Multi-Refrigerant Recover, Recycle, Recharge Machine can also be referred to as multi-refrigerant recovery machine, refrigerant recycling machine, refrigerant recharge machine, A/C recovery and recycling machine, and HVAC/R service machine.

Robinair is a Bosch Automotive Service Solutions brand focused on automotive and HVAC/R air conditioning service equipment, including refrigerant recovery, recycling, recharge machines, vacuum pumps, leak detection, manifolds, gauges, and service tools.

Q: Which refrigerants are listed for the Robinair 17800C?
A: Listed refrigerants include R12, R22, R134A, R402A, R402B, R404A, R407A, R407B, R407C, R410A, R500, R502, and R507.

Q: What maintenance prompts does the machine provide?
A: It notifies when it is time to change the filter drier and vacuum pump oil.

Q: Is this machine for light-duty passenger vehicles?
A: No. It cannot be used on Class I-III light-duty passenger vehicle refrigerant systems.
