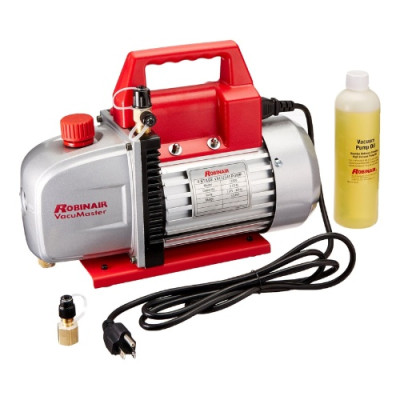

Robinair 15300 VacuMaster Vacuum Pump, 3 CFM, Two-Stage, 110V, Heavy-Duty Motor

Robinair 15300 VacuMaster Vacuum Pump, 3 CFM, Two-Stage, 110V, Heavy-Duty Motor

• The Robinair 15300 VacuMaster is a robust vacuum pump designed for efficient air conditioning and refrigeration service. It features a powerful two-stage rotary vane design, ensuring deep vacuum levels for thorough system evacuation.
• Features:
  • Two-stage rotary vane design for deep vacuum levels
  • Heavy-duty motor with high torque for easy startup and efficient operation
  • Durable die-cast aluminum housing for reduced weight and increased durability
  • Easy-view sight glass to monitor oil levels and color
  • Top oil fill port for convenient oil refills
  • Angled oil drain valve for quick and complete oil drainage
• Specifications:
  • Manufacturer: Robinair
  • Part Number: 15300
  • Product Type: Vacuum Pump
  • Free air displacement: 3 CFM
  • Factory micron rating: 35 microns
  • Stages: 2
  • Motor size: 1/3 hp
  • Voltage: 115V 60Hz
  • Oil capacity: 7.5 oz. (220 mil)
  • Weight: 28 lbs. (12.5 kg)
  • Dimensions: 10" H x 5" W x 13" L
  • Certifications: CSA Approved
• The Robinair 15300 VacuMaster Vacuum Pump can also be referred to as a dual-stage vacuum pump, HVAC vacuum pump, refrigeration vacuum pump, 3 CFM vacuum pump, and 110V vacuum pump.

Robinair is a trusted manufacturer in the HVAC industry, known for their high-performance tools and equipment. Their VacuMaster series is designed to meet rigorous standards, providing reliable and efficient service in a wide range of applications.
