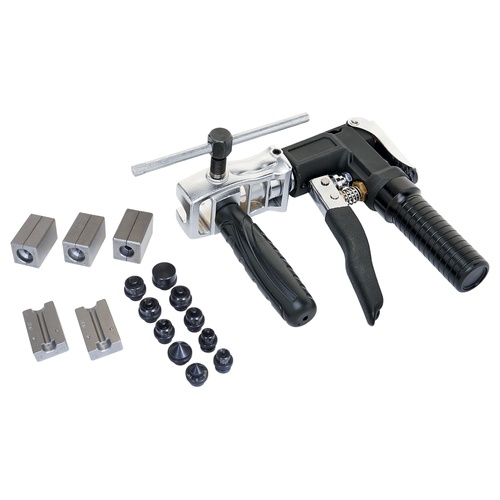

S.U.R.&R. PFT409 Pistol Grip Hydraulic Flaring Tool, 3/16" - 3/8" and 4.75mm, 45 Degree

S.U.R.&R. PFT409 Pistol Grip Hydraulic Flaring Tool, 3/16" - 3/8" and 4.75mm, 45 Degree

• The S.U.R.&R. PFT409 is a pistol grip hydraulic flaring tool for flaring tubing sizes 3/16", 1/4", 5/16", 3/8", and 4.75mm at a 45 degree flare angle. It features dual handles for control and positioning and a hydraulic ram rated at over 6,000 PSI crimping pressure. The kit includes 10 punches and 4 dies and is designed for use with S.U.R.&R. UltraBEND, steel, and coated tubing, and is compact enough for on-car flaring or bench use in a vise.
• Features:
  • Dual handles for control and positioning when flaring tubing.
  • Heavy-duty hydraulic ram with over 6,000 PSI crimping pressure.
  • Can be used on or off the vehicle, including within a vise, for tight engine bay working spaces.
  • Magnetic yoke and detent ball help secure tube positioning during flaring.
  • Compatible with S.U.R.&R. UltraBEND tubing, steel tubing, and coated tubing.
  • 5/16" and 3/8" dies are grooved for extra grip when used with steel and coated tubing.
  • 45 degree and DIN flare types supported.
• Includes:
  • 3/16" - 45 Degree and DIN Die
  • 1/4" - 45 Degree and DIN Die
  • 5/16" - 45 Degree and DIN Die
  • 3/8" - 45 Degree Die
  • 3/16" - 45 Degree Punch
  • 1/4" - 45 Degree Punch
  • 5/16" - 45 Degree Punch
  • 3/8" - 45 Degree Punch
  • 3/16" - DIN Punch
  • 1/4" - DIN Punch
  • 5/16" - DIN Punch
  • 3/16" Punch
  • 1/4" - 45 Degree Punch
  • 5/16" Punch
  • 3/8" - 45 Degree Punch
  • OP0 Punch
  • PFT409 Yoke Set Screw Handle
  • PFT409 Yoke
  • PFT409 Yoke Handle
  • PFT409 Hydraulic Handle
  • PFT409 Case
• Compatible Applications:
  • Fuel Line Flaring
  • Brake Line Flaring
  • A/C Line Flaring
  • Hydraulic Line Flaring
• Specifications:
  • Manufacturer: S.U.R.&R. Auto Parts
  • Part Number: PFT409
  • Model Name: PFT409
  • Product Type: Pistol Grip Hydraulic Flaring Tool
  • Operation Type: Hydraulic, Pistol Grip Actuation
  • Tubing Capacity: 3/16", 1/4", 5/16", 3/8", 4.75 mm
  • Flare Angle: 45 Degree, DIN
  • Crimping Pressure: Over 6,000 PSI
  • Item Dimensions: 3" x 14" x 18"
  • Package Dimensions: 17.6" x 14.1" x 3.1"
  • Package Weight: 9.3 lbs.
• This item is also often referred to as a flaring tool, hydraulic flaring tool, pistol grip flaring tool, S.U.R.&R. compact flare tool, and PFT409 V-flare tool.

S.U.R.&R. manufactures automotive fluid line repair products, fittings, adapters, tubing, and replacement kits for brake, fuel, transmission, cooling, and related vehicle service applications.

Q: Can I use this flaring tool while a tube is still installed?
A: Yes, its compact design allows on-car flaring even in tight spaces such as within an engine bay.

Q: What is the maximum crimp pressure?
A: The hydraulic ram delivers over 6,000 PSI of force for clean, consistent flares.

Q: Which tube and flare types does it support?
A: It supports steel, coated, and soft tubing in 3/16", 1/4", 5/16", 3/8", and 4.75mm sizes, producing both 45 degree and DIN flare types.

Q: What is included with the PFT409 kit?
A: The kit includes dies, punches, the yoke assembly with magnetic yoke and detent ball, a hydraulic handle, and a carrying case.
