SATA 1174606 SATAjet X 5500 RP Nozzle Set, 1.3 mm, Clear Coat

SATA 1174606 SATAjet X 5500 RP Nozzle Set, 1.3 mm, Clear Coat

• SATA 1174606 is a nozzle set for the SATAjet X 5500 RP spray gun used in clear coat application. It provides the matched nozzle configuration for the gun's RP technology and clear coat spray setup.
• Features:
  • RP nozzle technology uses optimized high-pressure technology for maximum working speed with VOC-compliant transfer rates and flexible handling.
  • Quick change configuration is included for changing nozzle setups.
  • Standard nozzle type is paired with RP technology and a cc spray fan.
  • Compatible with SATAjet X 5500 RP Standard & Digital spray guns.
  • Air setup data includes 290 Liters per Minute air consumption, 0.5 to 2.4 Bar air inlet pressure, and 2 Bar recommended dynamic inlet pressure.

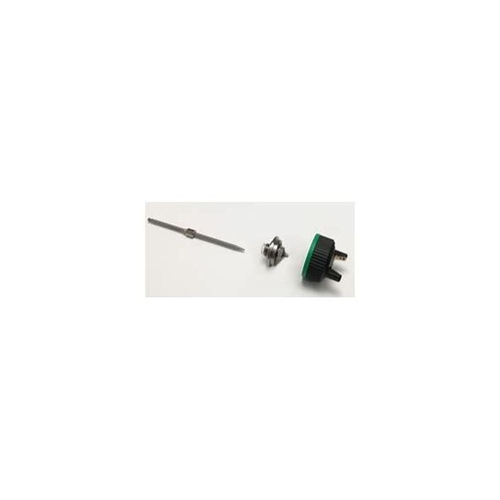

• Includes:
  • Paint needle
  • RP air cap
  • Fluid tip
• Specifications:
  • Manufacturer: SATA
  • Part Number: 1174606
  • Product Type: Spray gun nozzle set
  • Compatible Systems: SATAjet X 5500 RP Standard & Digital spray guns
  • Application: Clear coat application
  • Nozzle Size: 1.3 mm
  • Nozzle Technology: RP
  • Nozzle Type: Standard
  • Spray Fan: cc
  • Quick Change: Yes
  • Air Consumption: 290 Liters per Minute
  • Air Inlet Pressure Field of Application: 0.5 to 2.4 Bar
  • Recommended Dynamic Inlet Air Pressure: 2 Bar
  • Recommended Spraying Distance: 17 to 21 Centimeters
  • Packaging Unit: Pieces
  • Packaging Type: Each
  • Quantity: 1 Piece
• The SATAjet X 5500 RP Nozzle Set can also be referred to as SATA 1174606 nozzle set, SATAjet X 5500 RP nozzle kit, 1.3 mm clear coat nozzle set, RP spray gun nozzle set, and spray gun needle air cap and fluid tip set.

SATA GmbH & Co. KG holds a leading position worldwide in wet paint technologies and supplies distribution partners in more than 100 export markets. Its systems cover spray guns, cup systems, breathing protection, and compressed air technology for vehicle repair, industrial, carpentry, and painting users.

Q: Which spray gun platform does SATA 1174606 fit?
A: It is for SATAjet X 5500 RP spray guns, including Standard & Digital configurations.

Q: What components are in the nozzle set?
A: The set includes a paint needle, RP air cap, and fluid tip.

Q: What air setup values are specified for this nozzle set?
A: Air consumption is 290 Liters per Minute, the air inlet pressure field is 0.5 to 2.4 Bar, and recommended dynamic inlet air pressure is 2 Bar.
