SATA 1200013 jet X HVLP Spray Gun, 1.1 I Control Nozzle, BASIC, No Cup

SATA 1200013 jet X HVLP Spray Gun, 1.1 I Control Nozzle, BASIC, No Cup

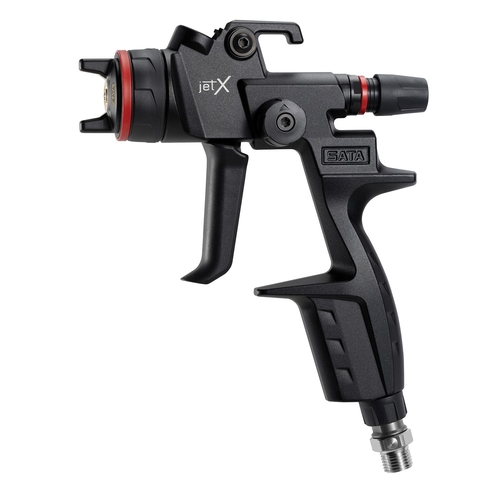

• SATA 1200013 is a jet X HVLP pneumatic spray gun for automotive refinish work. The BASIC configuration uses the 1.1 I Control nozzle setup and ships without a cup.
• Features:
  • Labyrinth airflow and X-nozzle system deliver fine, homogeneous, almost pulsation-free atomization.
  • HVLP nozzle technology and I Control spray fan match the 1.1 BASIC configuration.
  • QCC cup connection and quick change configuration are part of the setup.
  • Suitable for water-based and solvent-based basecoats as well as 1K/2K topcoat systems.
  • Spraygun cup system is no cup, so a compatible cup is selected separately.
• Specifications:
  • Manufacturer: SATA
  • Part Number: 1200013
  • Product Type: Pneumatic paint spray gun
  • Model: jet X HVLP
  • Application: Automotive refinish
  • Suitable Coatings: Water-based and solvent-based basecoats, 1K/2K topcoat systems
  • Nozzle Size: 1.1
  • Nozzle Technology: HVLP
  • Spray Fan: I Control
  • Digital Unit Version: BASIC
  • Spraygun Cup System: No cup
  • Air Connection Thread: 1/4" male thread
  • Air Connection: Swivel joint
  • Air Consumption: 420 Liters per Minute
  • Air Inlet Pressure Field of Application: 0.5 to 2.4 Bar
  • Recommended Dynamic Inlet Air Pressure: 2 Bar
  • Recommended Spraying Distance: 10 to 15 Centimeters
  • QCC: Yes
  • Quick Change: Yes
  • Packaging Type: Each
  • Quantity: 1 Piece
• The jet X HVLP Spray Gun can also be referred to as SATA 1200013 spray gun, SATA jet X HVLP gun, 1.1 I Control spray gun, BASIC HVLP spray gun, and no cup spray gun.

SATA GmbH & Co. KG holds a leading position worldwide in wet paint technologies and supplies distribution partners in about 100 countries, with products covering spray guns, cup systems, breathing protection systems, and compressed air technology.

Q: What coatings is this spray gun suitable for?
A: It is suitable for water-based and solvent-based basecoats as well as 1K/2K topcoat systems.

Q: Does the BASIC configuration include a cup?
A: No. The spraygun cup system is no cup.

Q: What air setup values are specified?
A: Air consumption is 420 Liters per Minute, the air inlet pressure field is 0.5 to 2.4 Bar, and the recommended dynamic inlet air pressure is 2 Bar.
