SATA 1202001 adam X pro Digital Pressure Measuring Device, for jet X Except BASIC

SATA 1202001 adam X pro Digital Pressure Measuring Device, for jet X Except BASIC

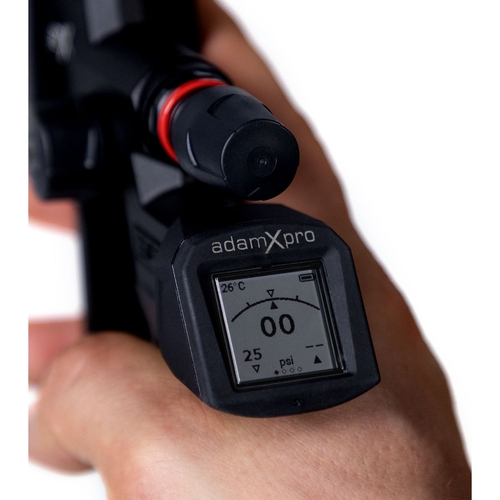

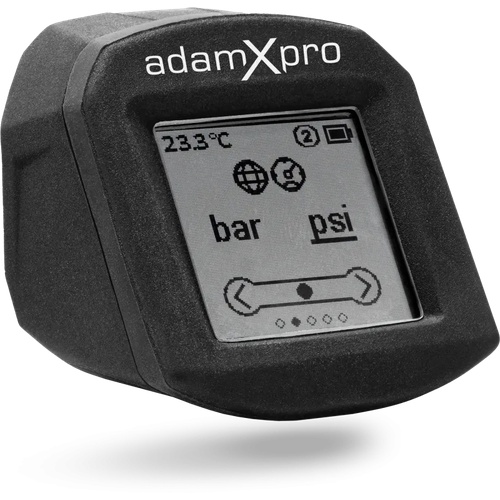

• SATA 1202001 is an adam X pro digital pressure measuring device for retrofitting compatible jet X DIGITAL ready paint spray guns except BASIC. The device adds pressure setup, operating data, and digital dashboard transfer capability to compatible spray gun configurations.
• Features:

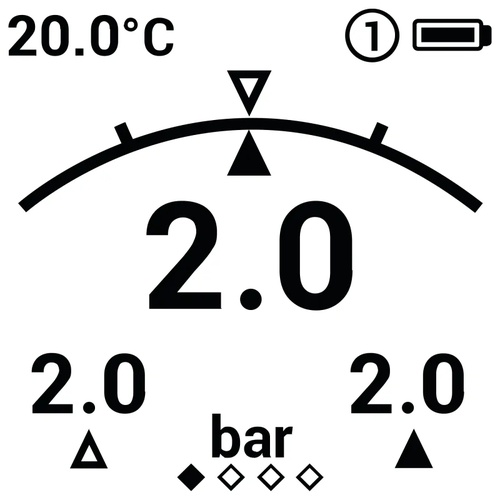

  • Actual and target pressure display switches between Bar and pounds per square inch.

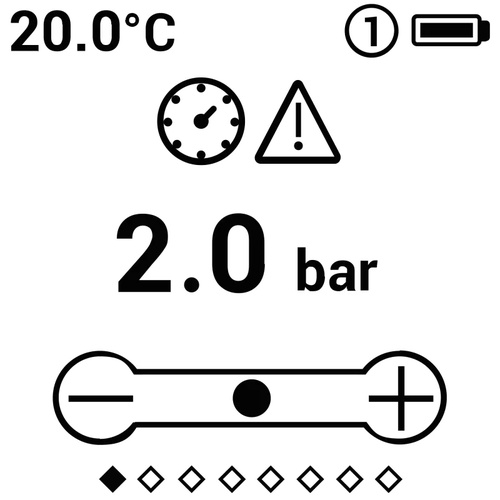

  • Graphical deviation display shows an alarm symbol when actual and target pressure differ by more than 0.2 Bar.
  • Ambient temperature indicator switches between Celsius and Fahrenheit.
  • Operating statistics include operating hours, painting time, and number of trigger pulls.

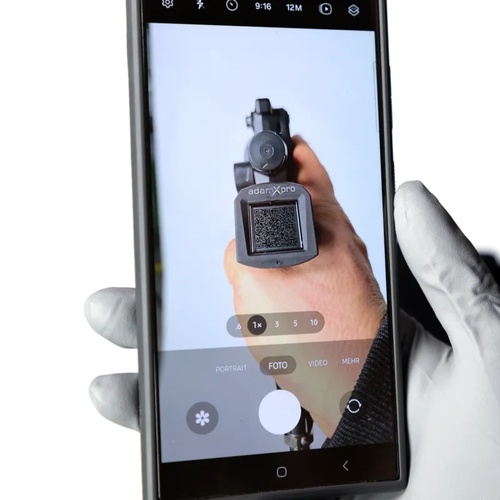

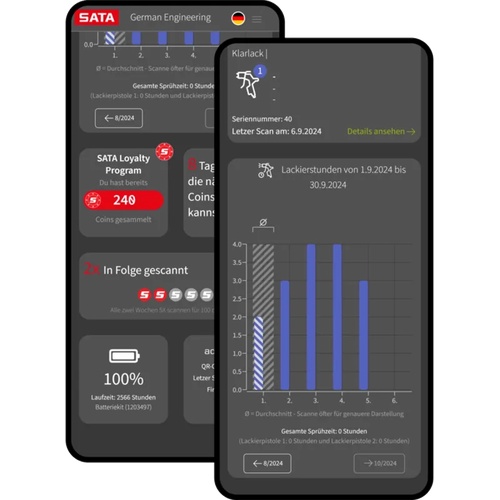

  • QR code data transfer connects the unit to a digital dashboard on a PC or smartphone.
• Specifications:
  • Manufacturer: SATA
  • Part Number: 1202001
  • Product Type: Digital pressure measuring device
  • Model: adam X pro for jet X except BASIC
  • Compatible Systems: jet X DIGITAL ready paint spray guns except BASIC
  • Display Functions: Actual pressure, target pressure, pressure deviation, ambient temperature, operating hours, painting time, trigger pulls, and battery status
  • Pressure Display Units: Bar and pounds per square inch
  • Temperature Display Units: Celsius and Fahrenheit
  • Data Transfer: QR code to digital dashboard
  • Operation: Double-tap and tilt menu selection
  • Maximum Storage Temperature: 60 Celsius
  • Minimum Storage Temperature: -20 Celsius
  • EAN: 4027533276395
  • Packaging Unit: 1 Piece
• The adam X pro Digital Pressure Measuring Device can also be referred to as SATA adam X pro gauge, SATA 1202001 pressure measuring device, jet X digital pressure display, digital spray gun pressure monitor, and adam X pro retrofit unit.

SATA GmbH & Co. KG holds a leading position worldwide in wet paint technologies and supplies distribution partners in about 100 countries. Its products include spray guns, cup systems, breathing protection systems, and compressed air technology.

Q: What pressure display modes are available on SATA 1202001?
A: The pressure display can switch between Bar and pounds per square inch.

Q: What happens when pressure deviation exceeds 0.2 Bar?
A: The graphical deviation display shows an alarm symbol when actual and target pressure differ by more than 0.2 Bar.

Q: How does SATA 1202001 transfer painting data?
A: It uses a QR code to connect the digital unit to a digital dashboard on a PC or smartphone.
