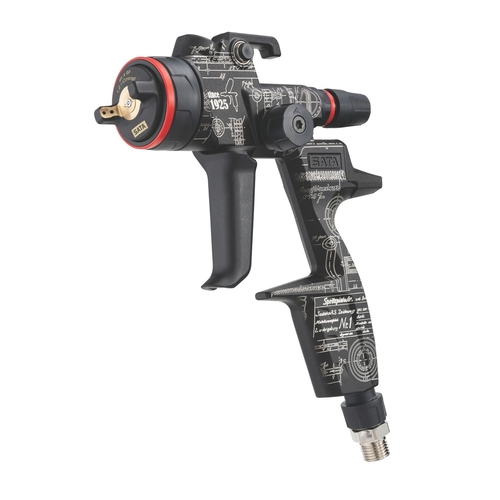

SATA 1240530 jet X 100 Years Edition HVLP 1.3 mm I Control DIGITAL Ready Spray Gun, No Cup

SATA 1240530 jet X 100 Years Edition HVLP 1.3 mm I Control DIGITAL Ready Spray Gun, No Cup

• SATA 1240530 is a jet X 100 Years Edition HVLP spray gun for automotive refinish work with water- and solvent-based basecoats as well as 1K/2K topcoat systems. This DIGITAL ready configuration accepts optional SATA adam X or adam X pro digital pressure display use.
• Features:
  • Labyrinth airflow and X-nozzle system create fine, homogeneous, almost pulsation-free atomization.
  • HVLP low-pressure technology achieves particularly high transfer rates.
  • Optional SATA adam X or adam X pro digital pressure displays are available for the DIGITAL ready configuration.
  • 3 in 1 air inlet combines a swivel joint with an air micrometer for inlet pressure adjustment.
  • 100 Years Edition surface features the original technical drawing of SATA's first spray gun, No. 1.
• Specifications:
  • Manufacturer: SATA
  • Part Number: 1240530
  • Product Type: Automotive refinish spray gun
  • Product Name: jet X 100 Years Edition HVLP 1.3 mm I Control DIGITAL Ready Spray Gun
  • Nozzle Size: 1.3 mm
  • Nozzle Technology: HVLP
  • Spray Fan: I Control
  • Digital Unit Version: DIGITAL ready
  • Spraygun Cup System: No cup
  • Applications: Water- and solvent-based basecoats and 1K/2K topcoat systems
  • Air Connection Thread: 1/4" male thread
  • Air Connection: With swivel joint
  • Air Consumption: 420 Liters per minute
  • Air Inlet Pressure Field of Application: 0.5 to 2.4 Bar
  • Recommended Dynamic Inlet Air Pressure: 2 Bar
  • Recommended Spraying Distance: 10 to 15 Centimeters
  • Maximum Storage Temperature: 60 Celsius
  • Minimum Storage Temperature: -20 Celsius
  • Packaging Unit: 1 Piece
  • Quantity: 1
• The jet X 100 Years Edition Spray Gun can also be referred to as SATA 1240530 spray gun, SATAjet X HVLP spray gun, SATA jet X 1.3 mm I Control, DIGITAL ready refinish spray gun, and HVLP automotive refinish spray gun.

SATA GmbH & Co. KG holds a leading position worldwide in wet paint technologies and supplies distribution partners in about 100 countries. Its products include spray guns, cup systems, breathing protection systems, and compressed air technology.

Q: Does SATA 1240530 include a spray cup?
A: The spraygun cup system is no cup, and the scope of delivery is one SATA spray gun jet X HVLP 1.3 I Control DIGITAL ready.

Q: Which digital pressure displays are available for this DIGITAL ready spray gun?
A: SATA adam X or adam X pro digital pressure displays are optional for the DIGITAL ready configuration.

Q: What air setup data applies to SATA 1240530?
A: Technical data includes 420 Liters per minute air consumption, a 0.5 to 2.4 Bar application pressure field, 2 Bar recommended dynamic inlet pressure, and a 10 to 15 Centimeters recommended spraying distance.
