Schley Products 18100 Ball Joint Press Tool Master Set with Cups, 2 to 1 Pivot Action, 18 Ton Force

Schley Products 18100 Ball Joint Press Tool Master Set with Cups, 2 to 1 Pivot Action, 18 Ton Force

• Schley Products 18100 is a high pressure ball joint press master set with cups engineered to remove and install press in ball joints on late model pickup platforms. The patented 2 to 1 pivot action and forged alloy steel construction deliver up to 18 ton force with ample clearance for on vehicle service. Designed for Ford, Dodge/Ram 2500 to 5500, and select GM applications.
• Features:

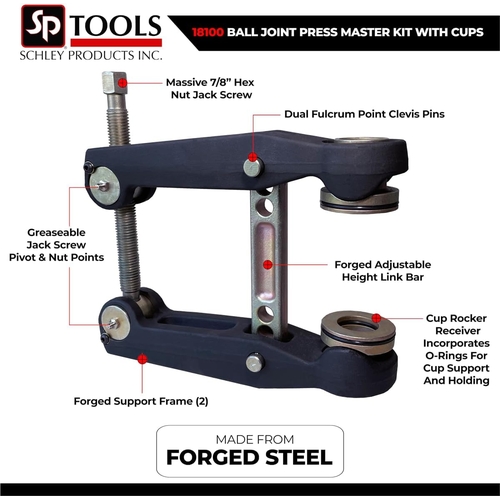

  • Patented 2 to 1 pivot action increases effective pressing force to tackle stubborn joints while reducing operator effort

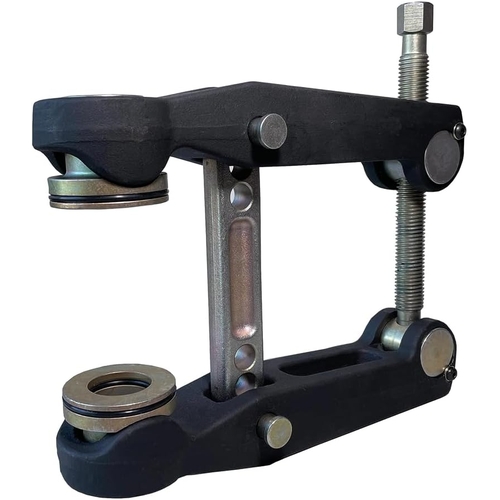

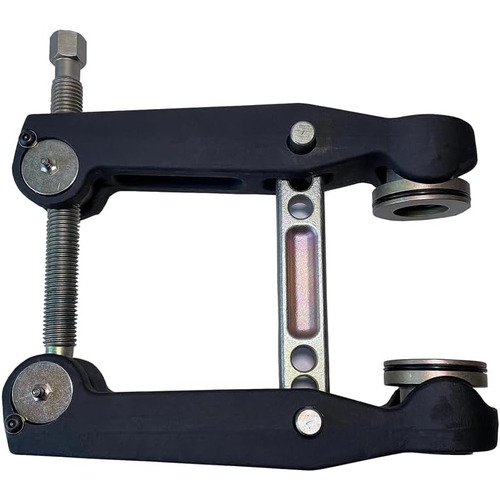

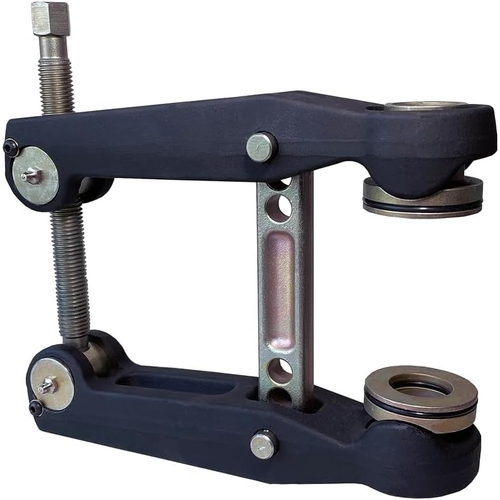

  • Open frame geometry provides clearance to service ball joints on the vehicle without removing the steering knuckle
  • Forged alloy steel frame members and coarse thread jack screw support durable, repeatable pressing under high loads
  • Proprietary cup locking design helps keep adapters seated to reduce slippage and component damage
  • Vehicle application focused: designed for late model Ford and Dodge/Ram 2500 to 5500 series trucks and select GM 4500 to 5500 platforms
  • Assembled, approximately 25 pounds, with compact footprint for lift or alignment rack use

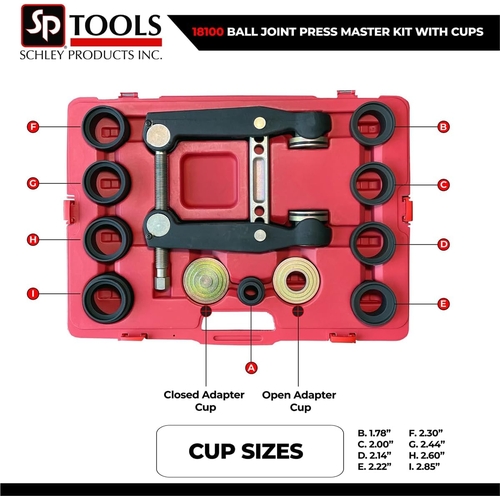

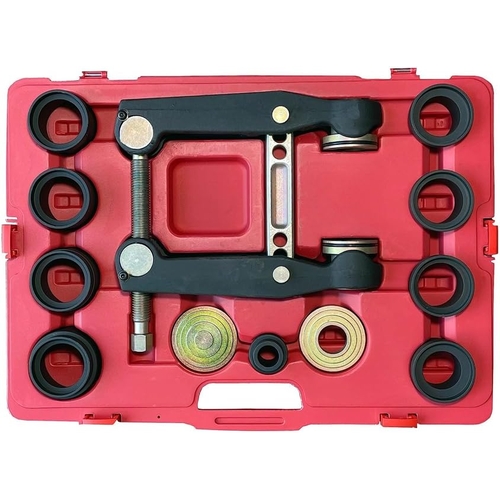

• Includes:

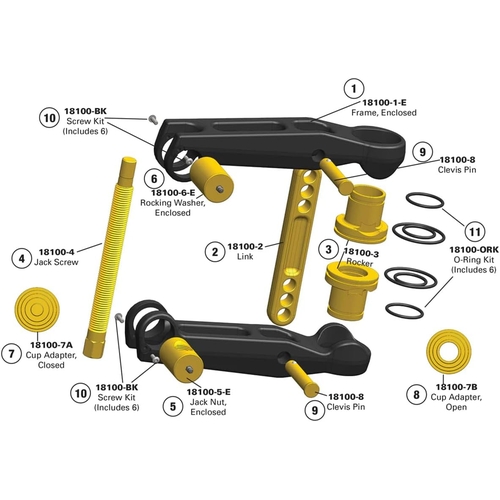

  • Ball joint press assembly (frame, link, rockers, jack screw, jack nut, rocking washer)
  • Cup adapter, closed
  • Cup adapter, open
  • Pusher, 1.0 L
  • Pusher, 1.5 L
  • Installer cup, 1.78 D
  • Installer cup, 2.0 D
  • Installer cup, 2.14 D
  • Installer cup, 2.22 D
  • Receiver cup, 2.3 D
  • Receiver cup, 2.44 D
  • Receiver cup, 2.6 D
  • Clevis pins, fastener kit, and blow molded case
• Specifications:
  • Manufacturer: Schley Products
  • Part Number: 18100
  • Product Type / Function: High pressure ball joint press master set with cups
  • Force Output: Up to 18 ton equivalent with 2 to 1 pivot action
  • Construction: Forged alloy steel frame members; coarse thread jack screw
  • Cup Count: 9 or more adapter cups (see Includes list)
  • Approximate Dimensions: 12 inch wide x 10 inch high x 2.5 inch deep
  • Approximate Weight: 25 pounds
  • System Compatibility or Application: Designed for late model Ford and Dodge/Ram 2500 to 5500 trucks and select GM 4500 to 5500; general press fit service for ball joints with pre fitted straight grease fittings
• The Ball Joint Press Tool Master Set with Cups can also be referred to as high pressure ball joint press, pivot action ball joint press, truck ball joint press kit, heavy duty ball joint press set, and Schley 18100.

Schley Products designs and manufactures specialty service tools for professional technicians, focusing on engineered solutions that improve access, speed, and safety in undercar, engine, and chassis repairs.

Q: What vehicles is the 18100 designed for?
A: It is designed for late model Ford and Dodge/Ram 2500 to 5500 series trucks and select GM 4500 to 5500 platforms; always consult the vehicle service manual and the cup application chart before use.

Q: Can I service ball joints on vehicle without removing the steering knuckle?
A: Yes. The open frame and pivoting design provide clearance intended for on vehicle service on a lift or alignment rack when procedures allow.

Q: How many cups and adapters are included?
A: The master set includes multiple pushers, installer cups, receiver cups, and cup adapters as listed above; Schley also offers add on GM specific cup kits if needed for certain applications.
