OTC 4122A 50 Ton Hollow Center Hydraulic Ram, Single-Acting, 3 Inch Stroke

OTC 4122A 50 Ton Hollow Center Hydraulic Ram, Single-Acting, 3 Inch Stroke

• OTC 4122A is a hydraulic ram for use with Grip-O-Matic pullers, push-pullers, and shop presses. Its center opening accepts jacking screws, cables, puller screws, and similar items during high-force, short-stroke service.
• Features:
  • Center-hole feature lets extending jacking screws, cables, puller screws, and more pass through the ram.
  • Engineered for increased strength and durability and meets ASME B30.1 standards.
  • For use with Grip-O-Matic pullers, push-pullers, and shop presses.

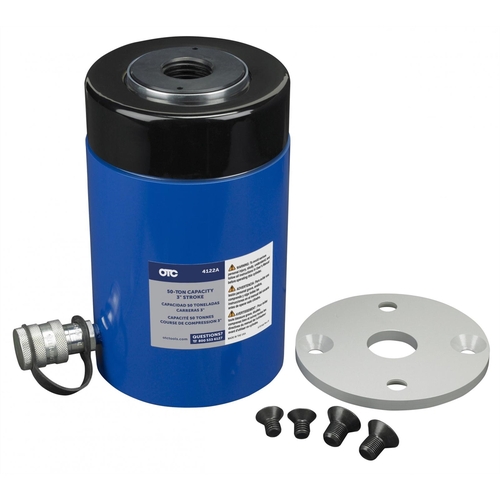

• Includes:
  • Single-acting hydraulic ram
  • P/N 573810 threaded saddle
  • Protective base plate and bolts
  • Ram half coupler
• Specifications:
  • Manufacturer: OTC
  • Part Number: 4122A
  • Product Name: 50-Ton Hollow Center Hydraulic Ram
  • Product Type: Hollow center single-acting hydraulic ram
  • Capacity: 50 Ton
  • Stroke: 3 Inches
  • Length: 10.27 Inches
  • Diameter: 6.26 Inches
  • Collar Thread: 6-12 UN X 2.0
  • Saddle Thread ID: 1 5/8 Inch - 5 1/2 UNC-2B
  • Oil Capacity: 29.19 Cubic Inches
  • Effective Ram Area: 9-3/4 Square Inches
  • Standard: ASME B30.1
  • Compatible Equipment: Grip-O-Matic pullers, push-pullers, and shop presses
  • Product Dimensions: 9 x 6 x 13 Inches
  • Product Weight: 74 Pounds
  • Packaging Type: Each
  • Quantity: 1 hydraulic ram
• The OTC 4122A 50 Ton Hollow Center Hydraulic Ram can also be referred to as center-hole hydraulic ram, 50 Ton hydraulic ram, single-acting hydraulic ram, hydraulic puller ram, and shop press ram.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What equipment is the OTC 4122A used with?
A: It is for use with Grip-O-Matic pullers, push-pullers, and shop presses.

Q: What can pass through the center hole?
A: The center hole accepts extending jacking screws, cables, puller screws, and similar items through the ram.

Q: What components are included with the 4122A?
A: It includes a single-acting hydraulic ram, P/N 573810 threaded saddle, protective base plate and bolts, and ram half coupler.
