OTC 4240A 30 Ton King Pin Pusher Set, 7/8 Inch to 2 Inch Pin Diameter

OTC 4240A 30 Ton King Pin Pusher Set, 7/8 Inch to 2 Inch Pin Diameter

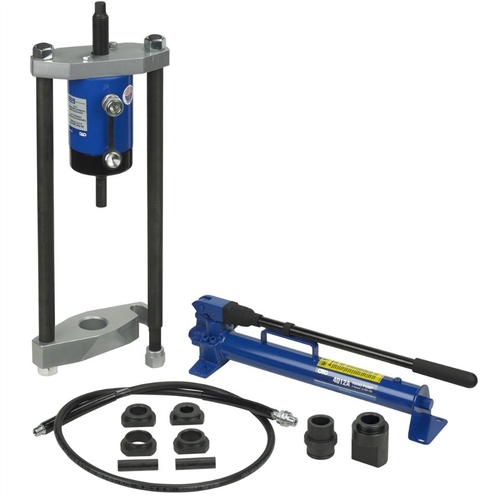

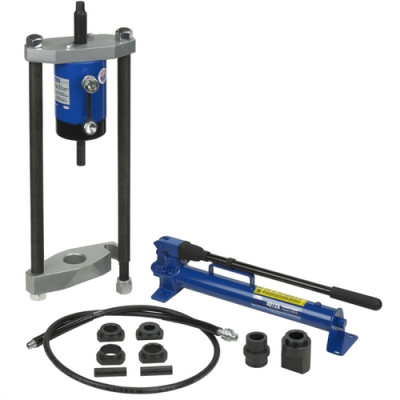

• OTC 4240A is a heavy duty kingpin and brake anchor pin pusher that uses a hydraulic cylinder and hand pump for service on straight and tapered kingpins. It is also configured for brake anchor pin removal with the included adapter.
• Features:
  • Five special collars and two pins allow the unit to work on both straight and tapered kingpins.
  • Product design accommodates pins up to 11-1/4 Inches in length for many models of trucks and buses.
  • The special adapter installs in the pusher base block for brake anchor pin removal when the unit is positioned over the brake spider.
  • Hydraulic hollow center cylinder applies 30 Ton force for kingpin and brake anchor pin removal.
  • Hand pump output is 0.662 Cubic Inches per pump stroke.
• Includes:
  • OTC 4241 pusher frame and adapter set
  • OTC 4121A-MA hydraulic cylinder
  • OTC 4012A two-speed hand pump
  • OTC 36886 hose assembly
  • OTC 25599 hose half coupler
• Specifications:
  • Manufacturer: OTC
  • Part Number: 4240A
  • Product Name: 30 Ton King Pin Pusher Set
  • Product Type: Hydraulic king pin and brake anchor pin pusher set
  • Force Capacity: 30 Ton
  • Pin Type: Straight and tapered kingpins
  • Kingpin Diameter Range: 7/8 Inch to 2 Inches
  • Maximum Kingpin Length: 11-1/4 Inches
  • Hand Pump Output: 0.662 Cubic Inches per pump stroke
  • Product Dimensions: 27.7 x 10.5 x 4.3 Inches
  • Product Weight: 102.5 Pounds
  • Used For: Trucks and buses
  • Application: Removal of straight and tapered kingpins and brake anchor pins
  • Packaging Type: Each
  • Quantity: 1 pusher set
• The OTC 4240A 30 Ton King Pin Pusher Set can also be referred to as hydraulic kingpin pusher, brake anchor pin pusher, heavy duty kingpin tool, 30 Ton pin remover, and OTC 4240A pusher set.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What kingpin sizes does the OTC 4240A accommodate?
A: It accommodates kingpins from 7/8 Inch to 2 Inches in diameter and up to 11-1/4 Inches in length.

Q: Can this set remove brake anchor pins?
A: Yes. The special adapter in the pusher base block removes brake anchor pins when the unit is positioned over the brake spider.

Q: What components are included with the 4240A set?
A: It includes the OTC 4241 pusher frame and adapter set, OTC 4121A-MA hydraulic cylinder, OTC 4012A two-speed hand pump, OTC 36886 hose assembly, and OTC 25599 hose half coupler.
