OTC 4247 Hendrickson Suspension Bushing Master Tool Kit, Steel Construction, 25-Ton Hydraulic System Included

OTC 4247 Hendrickson Suspension Bushing Master Tool Kit, Steel Construction, 25-Ton Hydraulic System Included

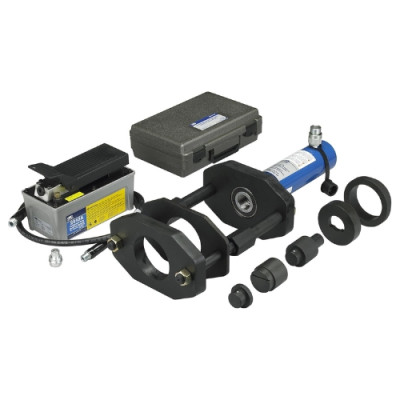

• The OTC 4247 Hendrickson Suspension Bushing Master Tool Kit provides a complete solution for removing and installing pivot and D-pin bushings on Hendrickson rear suspensions. It includes a 25-ton hydraulic cylinder, OTC 2510A air/hydraulic pump, hose, coupler, and alignment adapters.
• Features:
  • Mounts directly to the suspension, eliminating the need to hold the tool during operation
  • Centering adapters align the tool with the bushing axis to minimize misalignment and prevent component damage
  • Compatible with Hendrickson Primaax EX, Comfort Air, and FCCC V-Ride pivot and D-pin bushing systems
  • Includes a heavy-duty 25-ton single-acting hydraulic cylinder for handling seized or corroded bushings
• Includes:
  • 25-ton single-acting hydraulic cylinder (OTC 4106A)
  • OTC 2510A air/hydraulic pump with hose and coupler
  • Alignment adapters and centering fixtures for pivot and D-pin bushings
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: 4247
  • Material: Steel structure and components
  • Hydraulic Cylinder Capacity: 25 tons
  • Application: Designed for Hendrickson rear suspension systems including Primaax EX, Comfort Air, and FCCC V-Ride pivot and D-pin bushings

OTC, part of Bosch Automotive Service Solutions, engineered the 4247 Master Tool Kit to streamline Hendrickson rear suspension service. With its 25-ton hydraulic system, centering adapters, and included air/hydraulic pump, the kit delivers precise, efficient bushing replacement performance.

Q: What is the hydraulic cylinder capacity?
A: The included single-acting hydraulic cylinder provides 25 tons of force for removing and installing bushings.

Q: Does the kit include the pump and hose?
A: Yes. The OTC 2510A air/hydraulic pump, hose, and coupler are included to power the system using standard shop air.

Q: Which Hendrickson suspension systems is it compatible with?
A: The kit supports Hendrickson Primaax EX, Comfort Air, and FCCC V-Ride pivot and D-pin suspension bushings.
