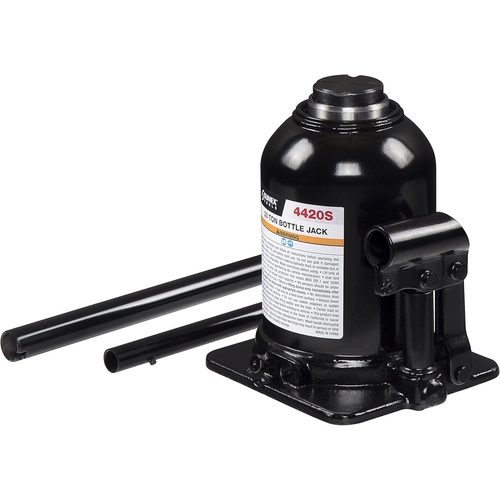

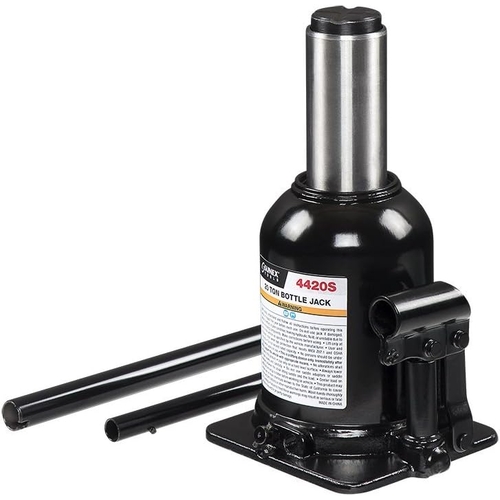

Sunex Tools 4420S Fully Welded Heavy Duty 20 Ton Short Bottle Jack, 7.48 to 13.78 Inch Lift Height

Sunex Tools 4420S Fully Welded Heavy Duty 20 Ton Short Bottle Jack, 7.48 to 13.78 Inch Lift Height

• Sunex Tools 4420S is a hydraulic short bottle jack rated at 20 tons. It lifts vehicles and equipment within a 7.48 to 13.78 inch range, featuring a fully welded base, extension screw for reach, and a safety valve. This jack is for lifting only and requires jack stands for support.
• Features:
  • 20 ton capacity for common shop and roadside lifting tasks, improving service versatility.
  • Fully welded base helps reduce leak risk and increases structural durability over time.
  • Built in safety valve helps prevent ram over extension during operation.

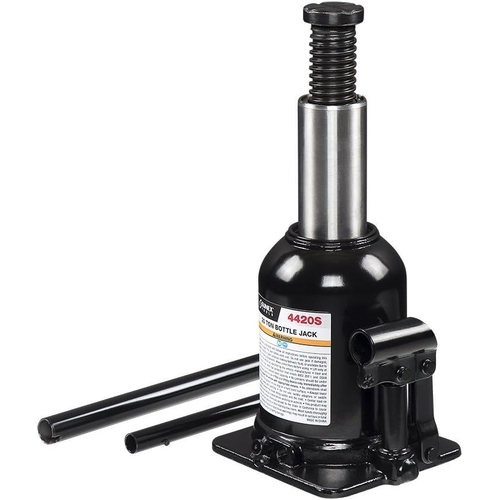

  • Extension screw provides added reach to contact lift points more easily.
  • Short profile with 7.48 inch closed height fits under lower clearance vehicles.
• Specifications:
  • Manufacturer: Sunex Tools
  • Part Number: 4420S
  • Category: Lifting equipment
  • Product Type: Hydraulic short bottle jack
  • Capacity: 20 ton
  • Lift Range: 7.48 to 13.78 inch
  • Power Lift Stroke: 6.3 inch
  • Base Size: 6.4 x 5.6 inch
  • Handle: Two piece, approximately 16.5 inch length
  • System Compatibility / Application: Lifts approved vehicle and equipment lift points up to 20 ton; use with appropriately rated jack stands
  • Quantity: Single jack
• The 20 ton short bottle jack can also be referred to as hydraulic bottle jack 20 ton, short bottle jack 20 ton, low clearance bottle jack, welded base bottle jack, and Sunex 4420S jack.

Sunex Tools provides professional automotive and industrial service equipment, hand tools, and shop solutions for technicians and maintenance operations across repair, fleet, and industrial markets.

Q: What minimum and maximum lift heights does the 4420S provide?
A: The closed height is 7.48 inch and the raised height is 13.78 inch. The power lift stroke is 6.3 inch.

Q: Does the 4420S include a handle?

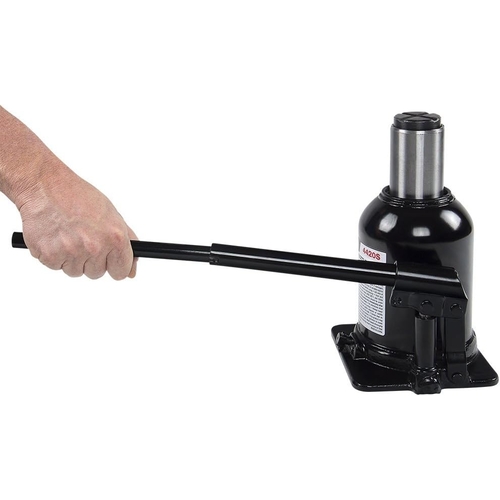

A: Yes. It is supplied with a two piece pump handle for operation.

Q: Can I use the 4420S to hold a vehicle in place?
A: No. It is a lifting device only. After lifting, support the load with properly rated jack stands at approved lift points.
