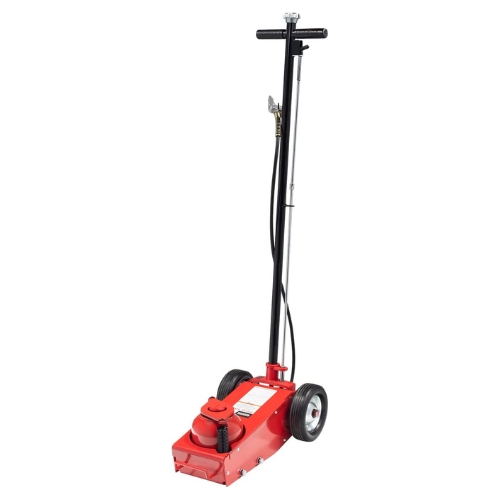

Sunex 6635 22/35 Ton Two-Stage Air/Hydraulic Truck Jack

Sunex 6635 22/35 Ton Two-Stage Air/Hydraulic Truck Jack

• The Sunex 6635 two-stage air/hydraulic truck jack handles a base capacity of 22 ton and extends to 35 ton in telescopic mode. It operates via compressed air for lift and controlled descent, offering rapid response and versatile range.
• Features:
  • Two-stage telescopic ram design allows extension from 22 ton to 35 ton capacity
  • Self-retracting ram ensures smooth lowering without manual reset
  • Overload and bypass safety valves protect against excessive load and overextension

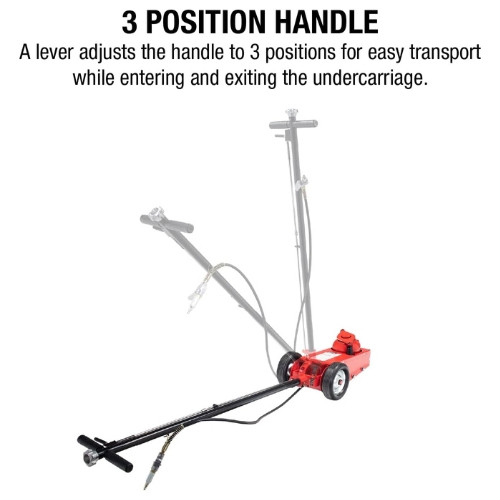

  • Release knob operates independently from handle locking lever for safer descent control

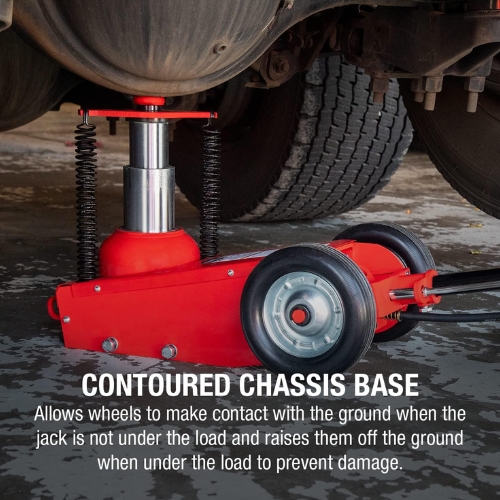

  • Narrow chassis configuration fits between tandem dual wheels on trucks
  • Integrated air motor filter helps protect internal components from contamination
• Specifications:
  • Manufacturer: Sunex Tools
  • Part Number: 6635
  • Capacity: 22 ton normal, extends to 35 ton
  • Minimum Height: 8.625 inch (8?5/8 inch)
  • Maximum Height (with adapter): 19.75 inch
  • Power Raise (stroke): 12 inch
  • Handle Length: 49 inch
  • Chassis Length: 24 inch
  • Material / Construction: Steel frame with telescopic hydraulic and pneumatic components
  • System Compatibility / Application: Ideal for heavy truck, trailer, and bus service where varying load capacity and extended reach are needed
• This jack is also known as Sunex 22/35 ton truck jack, Sunex 6635 telescopic jack, Sunex two-stage air/hydraulic truck jack, and Sunex heavy duty lifting jack.

Sunex’s 6635 jack provides dual capacity in one tool with the reach and flexibility needed for heavy fleet and commercial vehicle service. Its two-stage design and air assist function make it suitable for demanding shop or field work.

Q: How does two-stage operation work on this jack?
A: In its first stage, it lifts at a base 22 ton capacity. When higher lift is needed, the telescopic second stage activates, increasing capacity to 35 ton.

Q: What’s the lowest and highest lift range?
A: The jack begins at a height of 8.625 inch and can reach up to 19.75 inch with adapter extension.

Q: Can it be used in confined spaces between dual wheels?
A: Yes. The narrow chassis design enables placement between tandem dual wheels common to large trucks and trailers.
