Sunex 7752C 1-1/2 Ton Truck Transmission Jack, Adjustable Saddle, 28 inch Travel

Sunex 7752C 1-1/2 Ton Truck Transmission Jack, Adjustable Saddle, 28 inch Travel

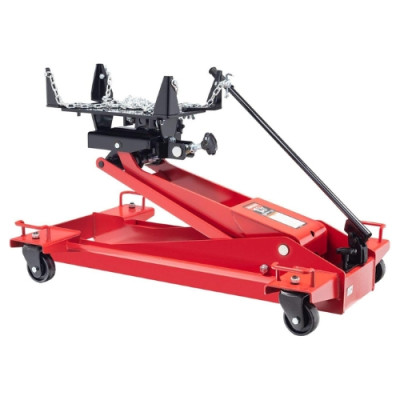

• The Sunex 7752C is a 1-1/2 ton (3,000 lb) truck transmission jack designed for the removal, installation, and transport of heavy duty transmissions. It features a universal adjustable saddle, wide chassis, and safety chains for secure operation.
• Features:
  • Universal adjustable saddle with four tilt brackets for alignment with various transmission pan configurations
  • Two safety chains and adjustment hardware to secure the load
  • Wide chassis for stable load distribution and increased lateral stability
  • Overload and bypass safety valves prevent overloading and ram overextension
  • Pump handle rotates 360degrees for operation from any direction; release valve allows controlled lowering
  • Four grab handles for repositioning the jack in tight spaces
  • Four swivel casters (4 inch diameter) for maneuverability
• Specifications:
  • Manufacturer: Sunex Tools
  • Part Number: 7752C
  • Load Capacity: 1.5 ton (3,000 lb)
  • Maximum Height: 36.62 inch
  • Minimum Height: 8.7 inch
  • Travel (Hydraulic Lift Stroke): 28 inch
  • Saddle Tilt (Fore / Aft): ±10degrees each direction
  • Saddle Tilt (Side to Side): ±10degrees
  • Material / Finish: Steel construction
  • System Compatibility / Application: Designed for heavy duty diesel truck transmission and driveline component service tasks
• Alternate product names include Sunex 7752C transmission jack, Sunex truck trans jack, Sunex 1.5 ton transmission support jack, and Sunex adjustable tilting saddle jack.

Sunex Tools offers the 7752C model to support professional shops in handling heavy truck transmissions safely and efficiently. Its wide chassis, tilt adjustable saddle, and safety features make it well-suited for heavy vehicle service environments.

Q: What is the height range?
A: The jack’s height ranges from 8.7 inch at its lowest to 36.62 inch at maximum extension.

Q: How far can the saddle travel?
A: The hydraulic lift stroke (travel) is 28 inch.

Q: How is the transmission secured?
A: It uses a universal adjustable saddle plus two safety chains and adjusting hardware to securely fasten the transmission.
