TecMate TM522-D2 OptiMate Solar DUO 20W 6-step 12V / 12.8V 1.67A Sealed Solar Battery Saving Charger and Maintainer
TecMate TM522-D2 OptiMate Solar DUO 20W 6-step 12V / 12.8V 1.67A Sealed Solar Battery Saving Charger and Maintainer
- OptiMate Solar DUO 20W, the smart sun powered charger and maintainer for all ‘12V’ batteries – Charger by day, monitor by night!
- Ideal for 12V lead-acid / 12.8V lithium batteries for ATV's, Motorcycles, Jet Ski's, Boats, Cars, and Agriculture Equipment
- The smart charge controller automatically adjusts charge according to battery type and condition – OptiMate Solar DUO’s smart control guarantees longer battery life and more battery power!
- The controller’s fully automatic multi-step program brings the battery safely to full charge – Connect to the battery and OptiMate Solar DUO 20W does the rest, no supervision required!
- Features
- Saves Flat Batteries from as Low as 4V
- Smart Charge Controller, Fully Automatic
- Charging Amps: 1.67A from 20W Panel (Max Average Current), 3.5A Pulse Current
- Indoor / Outdoor Use (-4°F/-20°C)
- Ideal For: STD, AGM & GEL 12V Batteries from 2 - 240Ah & Lithium LFP 12.8V / 13.2 Batteries

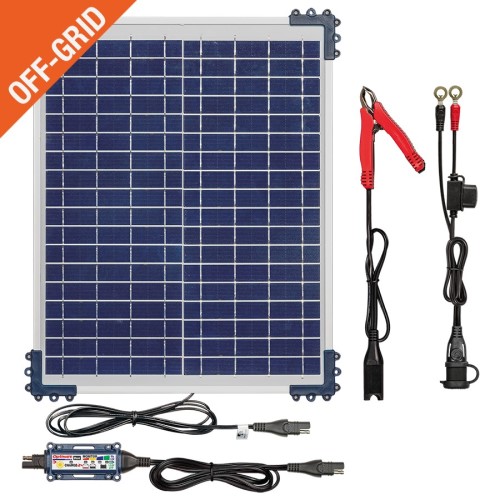

- Includes: Weatherproof Battery Lead, Standard Battery Clip Set & 20W Solar Panel
- Converts low solar energy to efficient pulse charge.
- DAY: Charge & maintain. NIGHT: monitor charge level.
- Safe to leave connected. Full electronic protection.
- Displays battery state of charge.
- Efficient dual conversion.
- Complete 24-7 maintenance.
- Works in any weather!
- Specifications
- Manufacturer: TECMATE
- Brand: Tecmate
- Model: TM-522-2
- Item Weight: 4.98 pounds
- Package Dimensions: L 22.76 x 15.55 x 1.77 inches
- Item model number: TM-522-2
- Manufacturer Part Number: TM-522-2
- Wattage: 20 watts
Question & Answer
Q: What battery voltage can I charge?
The OptiMate Solar DUO is suited for charging 12V lead acid and 12.8V / 13.2V Lithium (LifePO4 / LFP) batteries.
Q: What type of battery can I charge?
OptiMate Solar DUO can charge and maintain the following battery types:
STD: 12V ‘wet’ cell / refillable lead-acid battery. Liquid acid can leak out if battery is turned on its side.
AGM: 12V sealed lead-acid battery, acid is fully contained within the battery. A 12V AGM battery holds a higher charged voltage than
STD lead-acid batteries.
GEL: 12V GEL sealed lead-acid battery, acid is fully contained within the battery. A GEL battery holds similar charged voltages to AGM.
LFP: 12.8V / 13.2V sealed Lithium Ferrous Phospate battery. Lithium batteries contain no acid. A LFP battery holds a higher charged
voltage than AGM / GEL.
Important - OptiMate Solar DUO is suitable ONLY for 4 series cell Lithium Ferrous Phosphate or Lithium Iron Phosphate batteries. DO
NOT ATTEMPT TO CHARGE any other type of Lithium battery

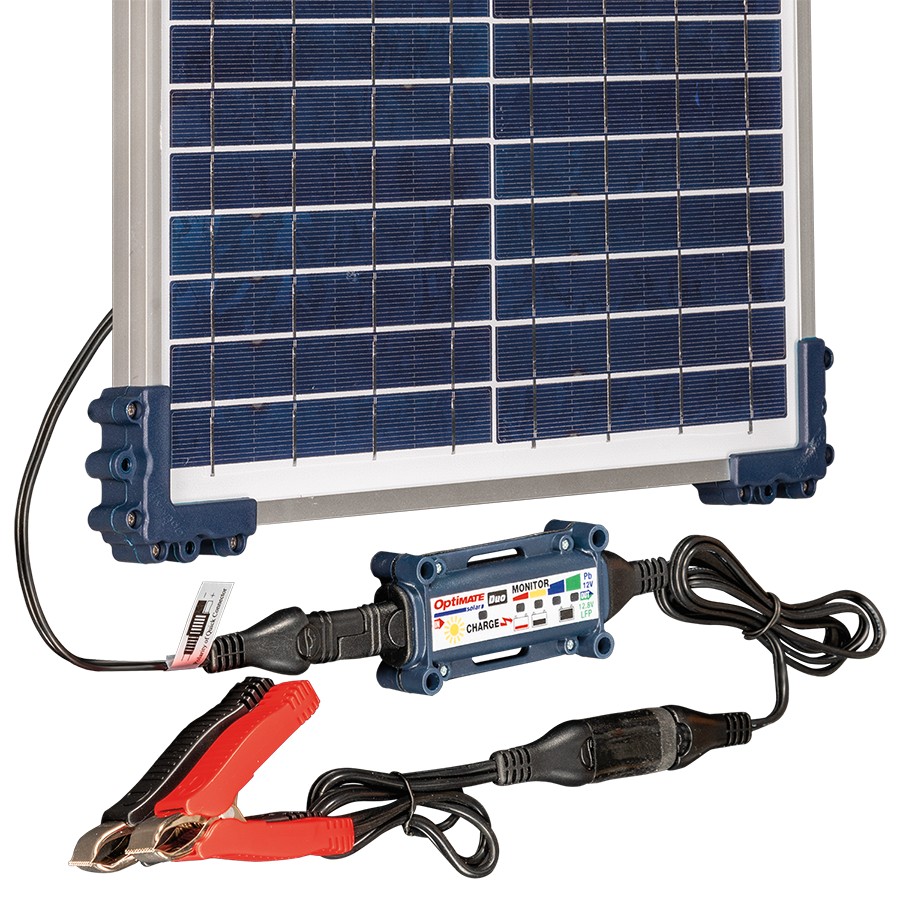

Q: How to connect?
1. Solar panel cable
2. Controller input
3. Controller output cable
4a. O-01 Permanent battery lead
4b. O-04 Battery clips 5. Battery
Q: What are Monitor Mode and Charge Mode?
MONITOR MODE - When the solar panel stops delivering power (sun has gone down in the evening or cloud covers sun) the
OptiMate Solar DUO controller changes to BATTERY MONITOR mode and will now indicate battery charge level every 3 seconds.
LED 2, 3, 4 or 5 indicate battery charge level.
CHARGE MODE - LED #1 lights if the solar panel can deliver charge. LED #1 flashes when charge current is delivered to the
battery. Speed of flashing corresponds to current delivered i.e. fast means high current, slow means low current (cloudy
conditions or battery is not accepting high current).
LED 2, 3, 4 or 5 indicate charge progress whilst CHARGE LED #1 is flashing. If no battery is connected only LED #1 turns on.
Q: When is battery charged?
If the battery is sufficiently charged, LED #4 or 5 will immediately light together with LED #1 (flashing).
Q: When battery needs charge?
If the battery needs further charging LED #2 or LED #3 will light together with LED #1 (flashing).
