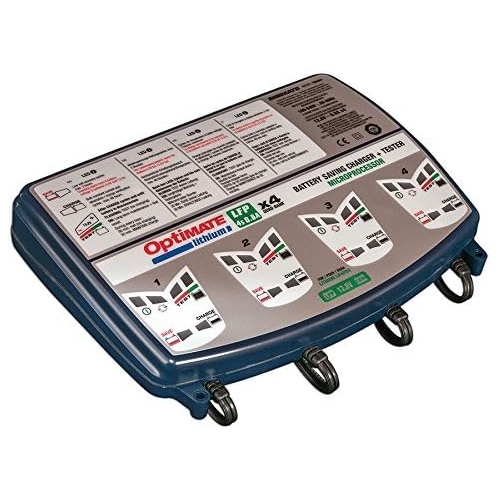

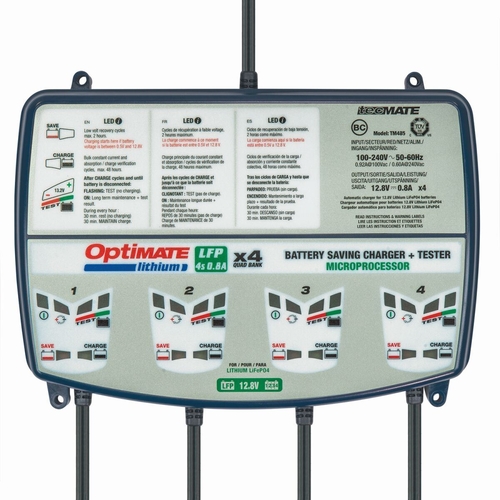

TecMate TM-485 OptiMate Lithium 4-Bank Charger and Maintainer, 8-Step 12.8V, 0.8A Per Bank

TecMate TM-485 OptiMate Lithium 4-Bank Charger and Maintainer, 8-Step 12.8V, 0.8A Per Bank

• TecMate TM-485 OptiMate Lithium is a four bank 0.8A per bank charger maintainer for 12.8V LiFePO4 batteries. It charges and maintains up to four batteries at once with an 8 step program that includes low volt save and BMS reset, in a sealed, wall mountable case for professional use.
• Features:
  • Four independent banks charge or maintain up to four 12.8V LiFePO4 batteries simultaneously to streamline multi battery care.
  • 8 step lithium specific program with low volt save from 0.5V and post charge test to help recover and verify batteries.
  • 0.8A output per bank with automatic control to optimize charge without overcharging.
  • BMS reset support helps wake protected LiFePO4 batteries when voltage is not initially detected.
  • Weather resistant enclosure with wall mounts and long AC and charge leads for fixed bench or showroom setups.
  • Includes dedicated clip leads and ring terminal harnesses so the charger can be connected permanently or temporarily.

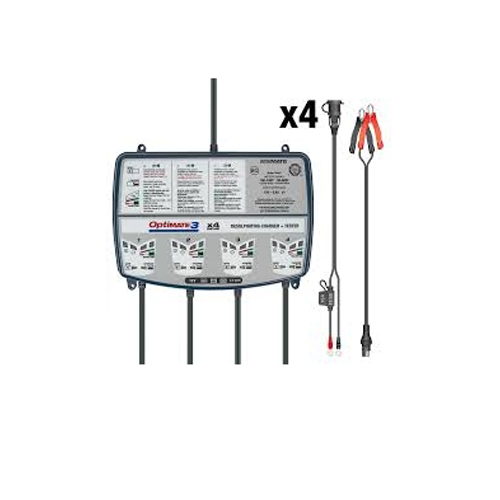

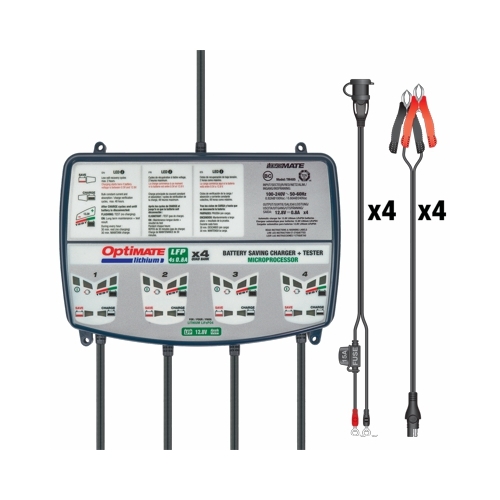

• Includes:
  • TM-485 OptiMate Lithium 4 bank charger main unit
  • Four weatherproof ring terminal battery leads
  • Four standard battery clip lead sets
  • Integrated AC power cord
• Specifications:
  • Manufacturer: TecMate
  • Part Number: TM-485
  • Category: Battery chargers
  • Product Type: Multi bank lithium charger and maintainer
  • Battery Compatibility: 12.8V and 13.2V LiFePO4 batteries
  • Banks and Output: 4 banks, 0.8A per bank
  • Charge Algorithm: 8 step lithium program with low volt save and test
  • Input Power: AC 100 to 240V, 50 to 60 Hz
  • Special Functions: BMS reset support; low volt start from 0.5V
  • Leads and Connections: SAE output with weatherproof ring terminal leads and clip leads
  • System Compatibility / Application: Designed for charging and maintaining LiFePO4 powersports and automotive type batteries in workshops, showrooms, or multi vehicle garages
  • Alternate / Order Code: TECTM-485
  • Quantity and identical item details: Single charger kit with the listed accessories
• The OptiMate Lithium 4 bank charger can also be referred to as lithium battery charger 4 bank, LiFePO4 charger maintainer 0.8A per bank, 12.8V lithium charger, multi bank lithium maintainer, and TM-485 OptiMate charger.

TecMate develops OptiMate battery charging, testing, and maintenance systems for powersports, automotive, marine, and industrial applications, focusing on safe recovery programs and long term battery health for lead acid and lithium technologies.

Q: What batteries can the TM-485 charge?
A: It is designed for 12.8V and 13.2V LiFePO4 batteries and operates as four independent 0.8A chargers, one per bank.

Q: Does the TM-485 include both clip and ring leads?
A: Yes. The kit includes four ring terminal battery leads and four clip lead sets so you can connect permanently or temporarily to each battery.

Q: Can it recover a protected lithium battery that will not accept a charge?
A: The charger supports low volt save from 0.5V and BMS reset functions that can wake many LiFePO4 batteries whose protection has opened due to low voltage.
