Tiger Tool 15032 Pin and Bushing Adapter, For Freightliner Airliner and Peterbilt Low Air Leaf, Requires 15000 Starter Kit

Tiger Tool 15032 Pin and Bushing Adapter, For Freightliner Airliner and Peterbilt Low Air Leaf, Requires 15000 Starter Kit

• Tiger Tool 15032 Pin and Bushing Adapter is an application specific adapter used with the Tiger Tool 15000 Pin and Bushing Starter Kit to remove and install rubber isolated pins and bushings while the suspension stays on the vehicle. It targets Freightliner Airliner and Peterbilt Low Air Leaf applications for faster, safer service.
• Features:
  • Adapter engineered for Freightliner Airliner and Peterbilt Low Air Leaf bushings to ensure correct alignment and efficient press work.
  • Works with the 15000 Pin and Bushing Starter Kit so the suspension can remain on the vehicle, cutting teardown time.
  • Machined from high grade metal with a black oxide finish for durability and corrosion resistance.
  • Supports 10,000 psi hydraulic systems used by the starter kit to deliver the required pressing force.
  • Compatible with specific OE bushing numbers to reduce guesswork during setup and service.
• Includes:
  • 15001-88 Remover for 680-322-01-05
  • 15001-89 Installer for 680-322-01-05
  • 15001-90 3/4-16 custom hex nut

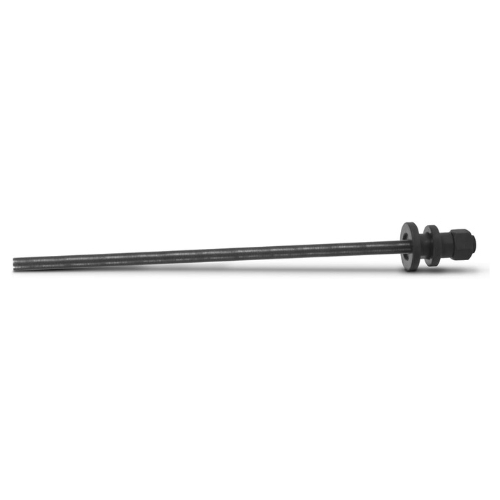

  • 15001-91A 3/4-16 threaded rod, 24 inch
• Specifications:
  • Manufacturer: Tiger Tool
  • Part Number: 15032
  • Product Type / Function: Pin and bushing adapter used with a hydraulic starter kit for suspension service
  • Required System: Tiger Tool 15000 Pin and Bushing Starter Kit with a 10,000 psi hydraulic pump
  • Material / Finish: High grade metal; black oxide finish
  • Compatible Bushings / Fitment: Freightliner 680-322-01-05; Freightliner 680-322-01-50; Mack 43RU297M; Dayton RB211; Gaff 11066; Mercedes A6803220150; NRB233 (see manufacturer list)
  • System Compatibility / Application: Designed for class 6 to 8 transportation trucks and equipment; removes and installs rubber isolated pins and bushings with the 15000 system
  • Packaging Type: Single adapter kit
• The Tiger Tool 15032 Pin and Bushing Adapter can also be referred to as pin and bushing adapter, Freightliner Airliner bushing adapter, Peterbilt Low Air Leaf bushing tool, 15000 starter kit adapter, and suspension bushing removal tool.

Tiger Tool designs and manufactures heavy duty suspension and driveline service tools for commercial fleets and shop technicians, offering application specific adapters and systems to improve accuracy and reduce downtime.

Q: Do I need other components to use the 15032?
A: Yes. The 15032 is an adapter that operates with the Tiger Tool 15000 Pin and Bushing Starter Kit and a 10,000 psi hydraulic pump.

Q: Which bushings does this adapter target?
A: It is specified for Freightliner Airliner and Peterbilt Low Air Leaf applications and matches OE numbers such as 680-322-01-05 and 680-322-01-50, among others listed by the manufacturer.

Q: Does the suspension need to be removed from the vehicle?
A: No. When used with the 15000 Starter Kit, pins and bushings can be serviced with the suspension remaining on the vehicle to save time.
