Tool Aid 65300 In-Line Brake Pad Gauge, Metric Scale, Calibrated for 6 mm Backing Plate

Tool Aid 65300 In-Line Brake Pad Gauge, Metric Scale, Calibrated for 6 mm Backing Plate

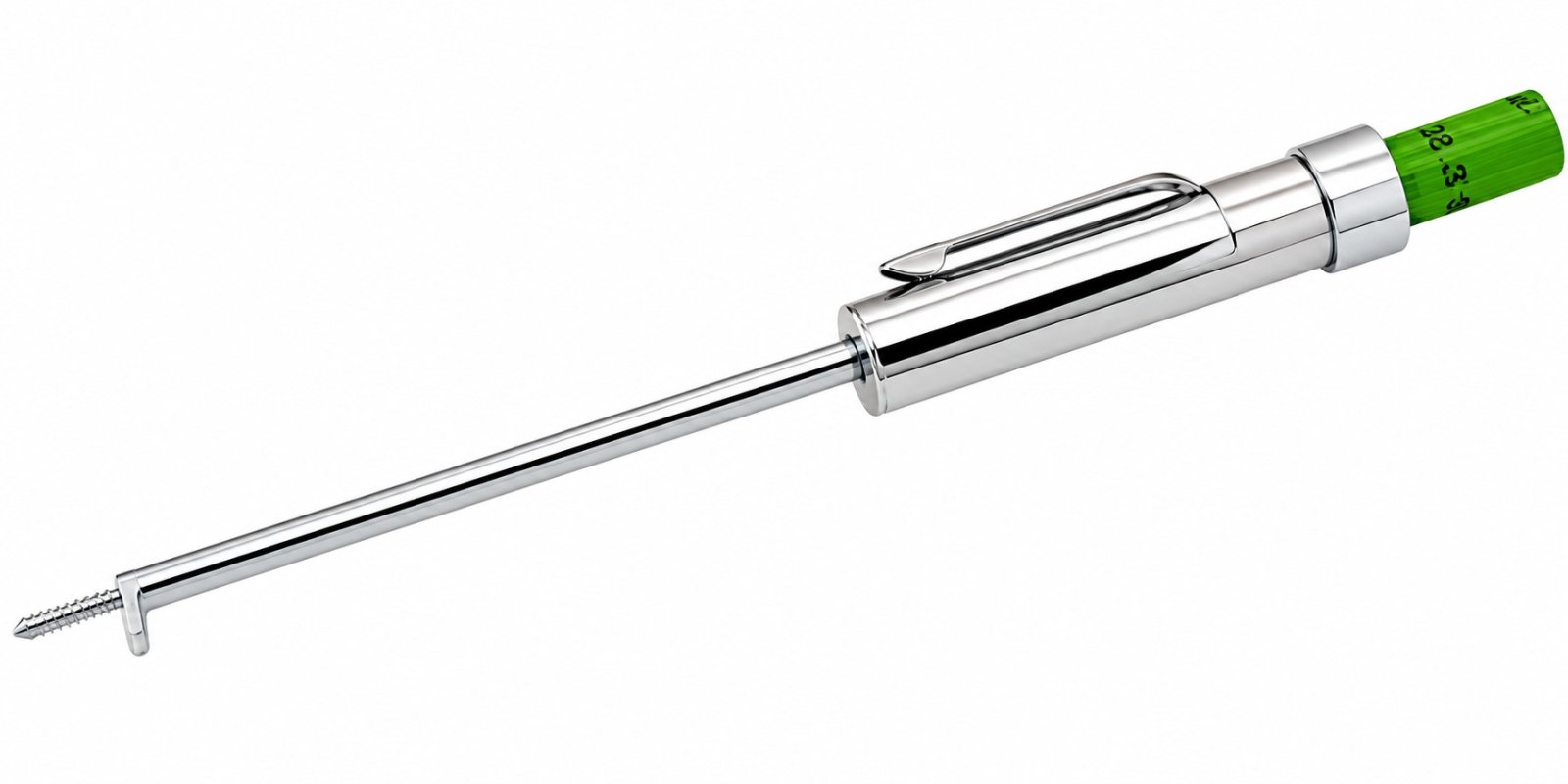

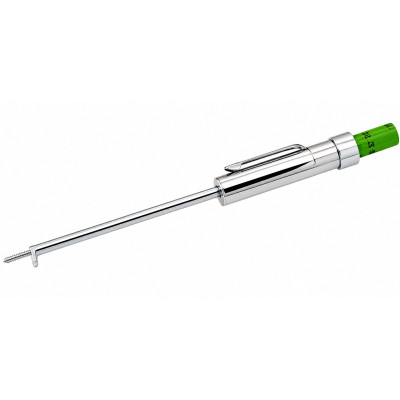

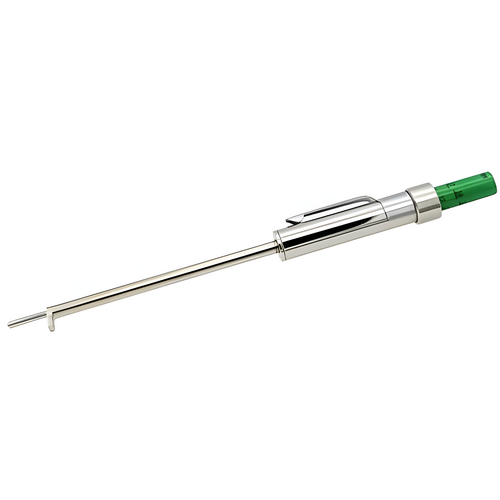

• Tool Aid 65300 is an in-line brake pad gauge designed to measure brake pad thickness on many vehicles without removing the wheels. It uses a metric scale with a color gauge for quick readings and is calibrated for a 6 mm backing plate when checking internal and external brake pads.
• Features:
  • In-line gauge design helps measure brake pad thickness on many vehicles without removing wheels, saving inspection time.
  • Color gauge supports quick at-a-glance readings during routine brake checks.
  • Measures both internal and external brake pads to support more complete brake inspections.
  • Calibrated for a 6 mm backing plate to help convert a gauge reading to brake pad lining thickness.
  • Metric scale supports consistent measurements during service documentation and inspection.
• Specifications:
  • Manufacturer: Tool Aid
  • Part Number: SG65300
  • MPN: 65300
  • UPC: 638570653007
  • Product Type / Function: In-line brake pad gauge
  • Scale: Metric
  • Calibration Reference: 6 mm backing plate
  • Measurement Capability: Internal and external brake pads
  • Reading Method: Color gauge for quick visual reference
  • System Compatibility or Application: Designed to check brake pad thickness on many vehicles using in-line access, often without wheel removal, using a metric gauge calibrated to a 6 mm backing plate
  • Alternate Part Numbers / Cross References: TA65300
• The In-Line Brake Pad Gauge can also be referred to as an in-line brake pad gauge, brake measurement gauge, brake lining thickness gauge, color coded brake pad gauge, and metric brake pad gauge.

Tool Aid manufactures automotive and specialty hand tools and shop aids used across vehicle service and maintenance. The company supplies inspection and service tools for professional technicians in automotive and related industries.

Q: Can this gauge be used without removing the wheels?
A: The in-line design is intended to allow brake pad thickness checks on many vehicles without removing the wheels, depending on access to the pad and rotor area.

Q: Does it measure both inner and outer brake pads?
A: Yes. It is designed to measure both internal and external brake pads to support a more complete inspection.

Q: How do I account for the backing plate thickness?
A: It is calibrated for a 6 mm backing plate. If the backing plate thickness differs, adjust the final lining thickness based on the difference between the backing plate thickness and 6 mm.

Q: Is the scale metric only?
A: Yes. The gauge scale is specified as metric for measuring and recording brake pad thickness.
