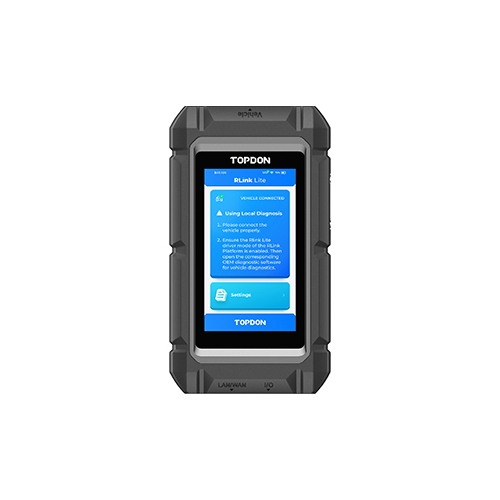

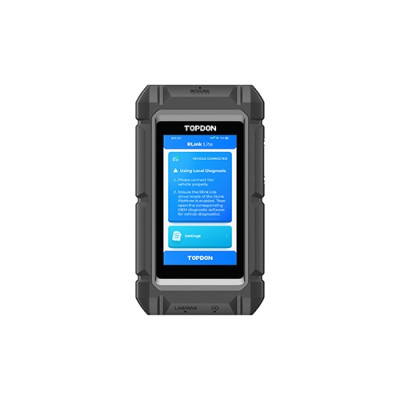

Topdon RLINKLITE RLink Lite J2534 Pass-Thru Programming Device, 5" Touchscreen, D-PDU, RP1210, DoIP and CAN FD

Topdon RLINKLITE RLink Lite J2534 Pass-Thru Programming Device, 5" Touchscreen, D-PDU, RP1210, DoIP and CAN FD

• The RLink Lite is a vehicle communication interface for OEM diagnostics, ECU programming, coding, and active testing with compatible manufacturer software. It combines broad protocol support with USB, Ethernet, and Wi-Fi connectivity for automotive diagnostic and programming applications.
• Features:
  • Compliant with SAE J2534-1, SAE J2534-2, D-PDU, and RP1210 standards.
  • Supports DoIP, CAN, CAN FD, J1850, K-Line, ISO 9141, KWP2000, and UDS communication protocols.
  • RLink Platform provides driver management for integration with compatible OEM diagnostic software.
  • OE software is not included and requires a separate subscription.
• Includes:
  • RLink Lite
  • 6.5' OBD2 Diagnostic Cable
  • 16' Network Cable
  • 5' USB 2.0 Cable
  • 12V DC Power Adapter
  • Quick User Guide
  • Carrying Case
• Specifications:
  • Manufacturer: Topdon
  • Part Number: RLINKLITE
  • Model: RLink Lite
  • Type: J2534 Pass-Thru Programming Device
  • Display: 5" LCD Touchscreen
  • Display Resolution: 854 x 480
  • Processor: 4-Core 1.8 GHz
  • Operating System: Android 11.0
  • RAM: 2 GB
  • Storage: 32 GB
  • Operating Voltage: 6-36V
  • Dimensions: 7.80" x 4.25" x 1.65"
  • PC Interfaces: USB, RJ45 Ethernet, Wi-Fi
  • Standards: SAE J2534-1, SAE J2534-2, D-PDU, RP1210
  • UPC: 810139300069
• The Topdon RLink Lite can also be referred to as J2534 pass-thru programmer, vehicle communication interface, OEM programming interface, ECU programming device, and automotive diagnostic interface.

Topdon develops automotive diagnostic, programming, battery service, thermal imaging, key programming, EV, and ADAS technologies for professional automotive service applications.

Q: Is OEM diagnostic software included with the RLink Lite?
A: No. Compatible OE software requires a separate subscription.

Q: Which major programming standards does the RLink Lite support?
A: It supports SAE J2534-1, SAE J2534-2, D-PDU, and RP1210 standards.

Q: What cables are included with the RLink Lite?
A: It includes a 6.5' OBD2 diagnostic cable, 16' network cable, and 5' USB 2.0 cable.
