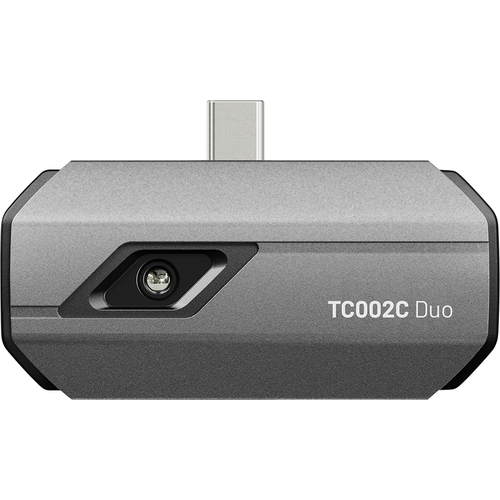

Topdon TC002CDUO TC002C Duo USB-C Thermal Imaging Camera, 256x192 IR, 25 Hz, -20 C to 550 C, iOS Android Windows

Topdon TC002CDUO TC002C Duo USB-C Thermal Imaging Camera, 256x192 IR, 25 Hz, -20 C to 550 C, iOS Android Windows

• Connects to compatible phones, tablets, and Windows computers for thermal inspection and analysis. Applications include automotive inspection, HVAC troubleshooting, electrical diagnostics, heat-loss checks, and other temperature-based inspection work, while the connected device supplies the display and operating power.
• Features:
  • TISR image processing increases the native 256x192 thermal image to 512x384 resolution.
  • Thermal sensitivity is less than 40 mK with 0.1 C temperature resolution.
  • TopInfrared measurement options include dot, line, and plane modes with 11 thermal color palettes.
  • Thermal Imaging and Dual Fusion image modes provide multiple viewing options for inspection work.
• Includes:
  • TC002C Duo Thermal Imaging Camera
  • Quick Start Guide
  • USB-C to USB-C Extension Cable
  • USB-C to Lightning Cable
  • Carrying Case
  • Cleaning Cloth
• Specifications:
  • Manufacturer: Topdon
  • Part Number: TC002CDUO
  • Model: TC002C Duo
  • Connection Type: USB-C
  • Operating Systems: iOS, Android, Windows
  • Infrared Resolution: 256x192
  • TISR Image Resolution: 512x384
  • Measurement Range: -20 C to 550 C
  • Measurement Accuracy: +/-2 C or +/-2%
  • Frame Rate: 25 Hz
  • Thermal Sensitivity: Less than 40 mK
  • Temperature Resolution: 0.1 C
  • Focal Length: 3.2 mm
  • Spectral Range: 8-14 micron
  • Operating Voltage: 5 V
  • Image Modes: Thermal Imaging, Dual Fusion
• The Topdon TC002C Duo Thermal Imaging Camera can also be referred to as USB-C thermal camera, smartphone thermal imager, mobile device infrared camera, automotive thermal imaging camera, and electrical inspection thermal camera.

Topdon develops automotive diagnostic tools, battery service equipment, thermal cameras, key programming tools, EV solutions, and ADAS calibration equipment. Founded in 2017, the company operates a U.S. organization in Fairfield, New Jersey, with warehousing, technical support, sales, and customer service.

Q: Does the TC002CDUO require its own internal battery?
A: No. The camera draws operating power from the connected device.

Q: What software is used with the TC002C Duo?
A: TopInfrared is used for mobile thermal imaging, while TopView provides thermal analysis functions on supported Windows computers.

Q: What temperature measurement modes are available?
A: The TC002C Duo provides dot, line, and plane measurement modes.
