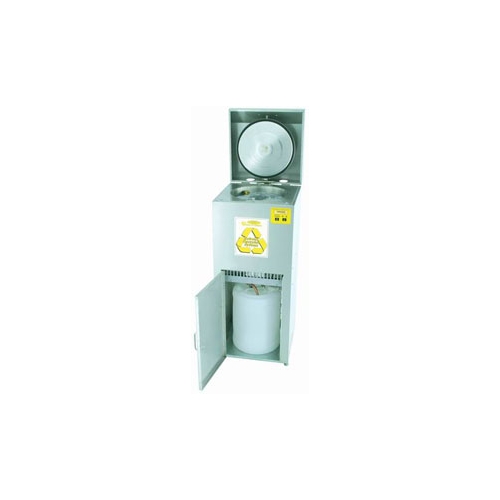

Uni-Ram URS600 220/240V Solvent Recycler, 5-Gallon Capacity

Uni-Ram URS600 220/240V Solvent Recycler, 5-Gallon Capacity

• Uni-Ram URS600 is paint and body shop solvent recycling equipment that separates clean solvent from used solvent by distillation. It uses direct electric heat, an air-cooled condenser, and computer-controlled safety monitoring for solvent recovery in shop environments.
• Features:
  • Direct electric heating and a high-efficiency air-cooled condenser with motor-driven fan.
  • Computer-controlled safety programs monitor tank, condenser, and fan motor temperatures.
  • Automatic pressure relief lid system limits distillation tank pressure to 0.5 to 1.0 psi.
  • ETL certified to UL Standard 2208 and CSA Standard 22.2 No. 30 and No. 88.
  • Distills 5 gallons in about 4 hours.
• Includes:
  • URS600 solvent recycler
  • Manual
  • Standard neoprene lid gasket
  • Two spare liner bags
  • Door handle and 2 screws
  • Solvent outlet tube
• Specifications:
  • Manufacturer: Uni-Ram
  • Part Number: URS600
  • Product Type: Solvent recycler
  • Voltage: 220/240V
  • Current Usage: 6.7 amps
  • Recommended Circuit: 15 amps
  • Capacity: 5 gallons
  • Distillation Tank: Stainless steel
  • Condenser and Fitting: Copper
  • Lid Gasket: Neoprene
  • Solvent Transfer System: No
  • Dimensions: 20" W x 20" D x 45" H
  • Cleaning Process: Distillation by condensation and vaporization
  • Typical Solvents: Paint thinner, lacquer thinner, gun washer solvent, acetone, xylene, and methanol
  • Safety Approval: Class 1, Division 1, Group D and Class 1, Division 2, Group D
• The 220/240V Solvent Recycler can also be referred to as paint solvent recycler, 5-gallon solvent recycler, solvent recovery machine, solvent distillation recycler, and body shop solvent recycler.

Uni-Ram Corporation manufactures environmentally friendly spray gun cleaning equipment and solvent recyclers at its factory and head office in Markham, Ontario, Canada. The company serves spray gun cleaning, part washing, and solvent recovery applications.

Q: What power supply does the URS600 require?
A: The URS600 requires 220/240V AC power, 6.7 amps, and a dedicated 15 amp branch circuit.

Q: What items are included with the URS600?
A: The unit includes a manual, standard neoprene lid gasket, two spare liner bags, door handle with 2 screws, and solvent outlet tube.

Q: Does the URS600 have a solvent transfer system?
A: No. URS600 is a non-EP2 model and uses manual solvent transfer.
