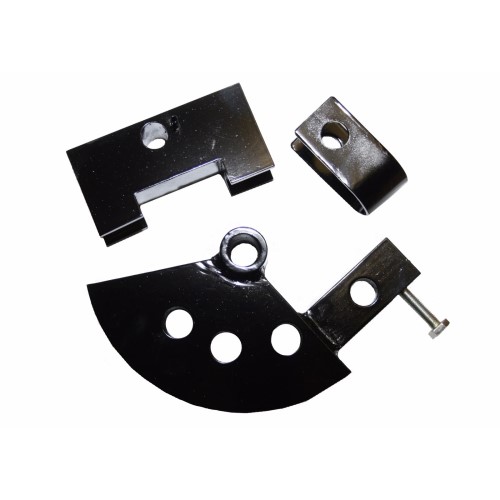

Woodward Fab WFBDT112X5 Tubing Die, 1-1/2" OD, 5" CLR, for WFB2 Bender

Woodward Fab WFBDT112X5 Tubing Die, 1-1/2" OD, 5" CLR, for WFB2 Bender

• This die is designed for Woodward Fab model WFB2 tube/pipe benders; it allows bending tube with 1-1/2 inch outside diameter, using a centerline radius of 5 inches.
• Features:
  • Fits tubing up to 1-1/2 inch outside diameter; suitable for mild steel and other compatible tube materials.
  • 5 inch centerline radius (CLR) ensures smooth bends with minimal distortion on tube edges.
  • Compatible with the Woodward Fab WFB2 bender; sold as replacement die or spare part.
  • Can bend tubes up to 120 degrees; rated for wall thickness range from 0.083 inch to 0.134 inch for mild steel tubing.
• Specifications:
  • Manufacturer: Woodward Fab
  • Part Number: WFBDT112X5
  • Tube Outside Diameter: 1-1/2 inch
  • Centerline Radius: 5 inches
  • Wall Thickness: 0.083 inch minimum, 0.134 inch maximum (for mild steel)
  • Maximum Bend Angle: 120 degrees
  • System Compatibility/Application: Used with Woodward Fab WFB2 tubing/pipe benders for precision tube bending in fabrication, automotive, chassis work, roll-cage building, and other metal-working applications
• The Woodward Fab WFBDT112X5 tubing die can also be referred to as 1-1/2 inch OD die, 5-inch CLR bending die, WFB2 die, replacement tube bending die, Woodward Fab bending tool accessory.

Woodward Fab manufactures bending dies with high-quality steel and precise machining to maintain shape under load. The WFBDT112X5 die delivers reliable bends with consistent radius and minimal deformation when used with compatible tubing and proper wall thickness.

Q: What tube wall thickness is supported?
A: This die supports mild steel tube wall thickness from about 0.083 inch up to 0.134 inch when used with 1-1/2 inch OD tubing.

Q: Can this die form bends beyond 90 degrees?
A: Yes, it is capable of bending up to approximately 120 degrees, though springback and material type should be considered for accuracy.

Q: Will this die fit other Woodward Fab bender models?
A: The WFBDT112X5 is specifically made for the WFB2 bender model; it may not align properly or offer safe use in other bending machines due to differences in die holders and bend geometry.
