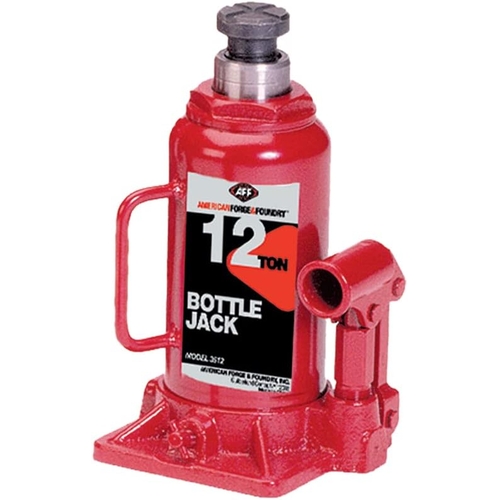

American Forge & Foundry 3512 Bottle Jack, Heavy Duty, 12 Ton Capacity, Manual Centered Pump & Ram
- American Forge & Foundry 3512 Bottle Jack is a heavy duty steel jack designed for heavy automotive, industrial, marine, and agricultural lifting tasks. It features machine hardened steel saddles, a centered pump and ram design, and heat treated piston for balance and precise positioning.
- Features:
- 12 Ton capacity for robust lifting of heavy duty vehicles and equipment.
- Machine hardened steel saddle ensures strong contact and resistance to wear.
- Centered pump and ram with heat treated piston provide balance and easy positioning.
- Drop forged steel frame with chrome plated/powder coated finish for durability and corrosion resistance.
- Compact base of about 5-1/2 inch by 5-1/4 inch for stable placement in tight spaces.
- ASME / PASE certified to PALD 2009 standards for performance and safety.
- Specifications:
- Manufacturer: American Forge & Foundry
- Part Number: 3512
- Product Type: Bottle Jack
- Capacity: 12 Ton
- Minimum Height: 5-3/4 inch
- Low Height (Saddle Retracted): 8-1/2 inch
- Maximum Height: 17 inch
- Lift / Stroke: 5-3/4 inch
- Extension Screw Length: 2-3/4 inch
- Base Dimensions: 5-1/2 inch (length) x 5-1/4 inch (width)
- Weight: approximately 17 lb
- Quantity: Single unit
- The American Forge & Foundry 3512 Bottle Jack, Heavy Duty, 12 Ton Capacity, Manual Centered Pump & Ram can also be referred to as AFF 3512 12-Ton bottle jack, AFF manual bottle jack 3512, AFF centered pump jack, AFF machine hardened saddle jack, AFF steel bottle jack 12-Ton.
American Forge & Foundry manufactures the 3512 Bottle Jack for demanding lifting applications. Its centered pump and ram design plus machine hardened steel saddle provide dependable balance and contact, while the durable steel frame and safety-certified build make it suitable for professional shop use.
Q: What is the fully extended lifting height of this jack?
A: It reaches up to 17 inch maximum height at full lift including the extension screw.
Q: What is the lowest height when retracted?
A: The minimum retracted height is 5-3/4 inch; low height with saddle retracted is 8-1/2 inch.
Q: Are the saddles hardened?
A: Yes, the saddle is made of machine hardened steel for strength and wear resistance.
