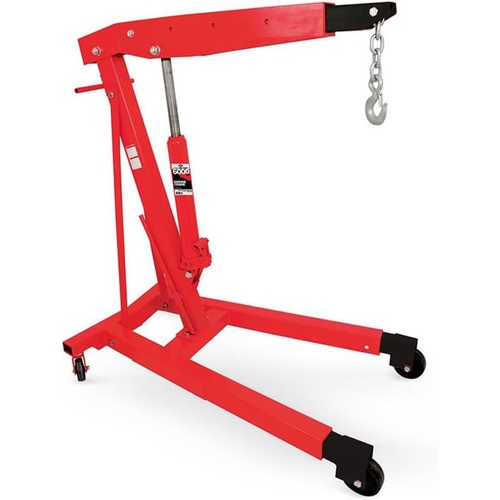

American Forge & Foundry 3584 Engine Crane, Heavy Duty, 3 Ton Capacity
- Manufacturer American Forge & Foundry, Part Number 3584, Engine Crane, Key Specifics manual hydraulic, 3 Ton capacity, four boom positions with varying reach and height
- Features:
- Rated for 3 Ton (6000 lb) maximum lift at shortest boom setting, with reduced capacity at longer reach positions for safe use.

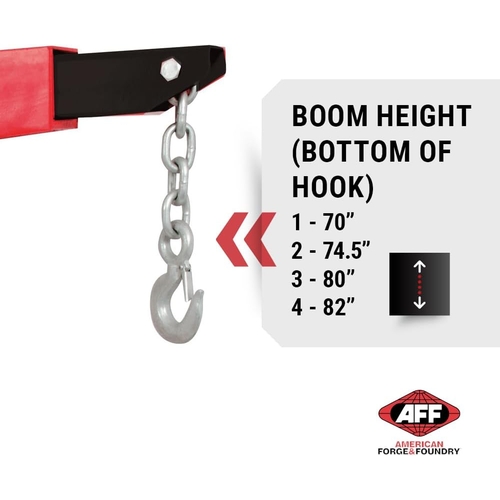

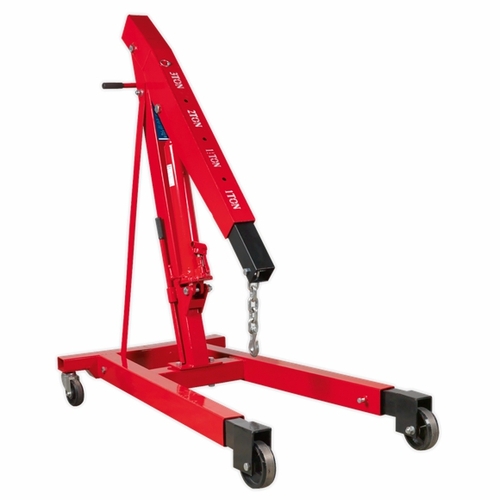

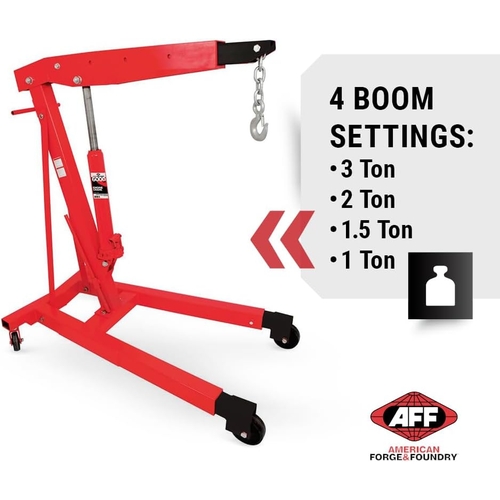

- Four boom settings (3 Ton, 2 Ton, 1.5 Ton, 1 Ton) allow flexibility in reach and lift without changing equipment.

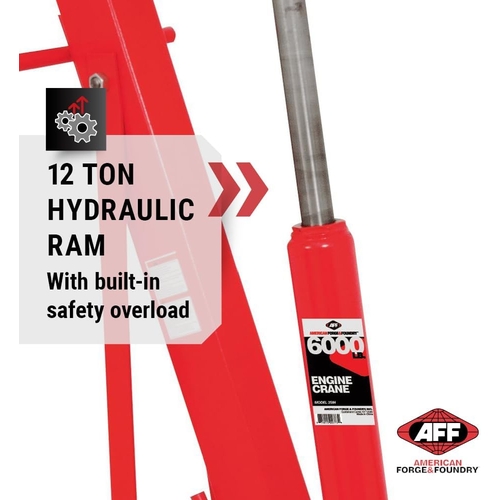

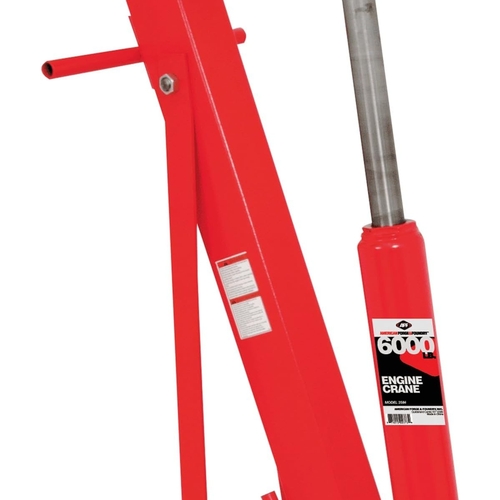

- Hydraulic ram with built-in safety overload bypass protects against misuse beyond rated capacity.

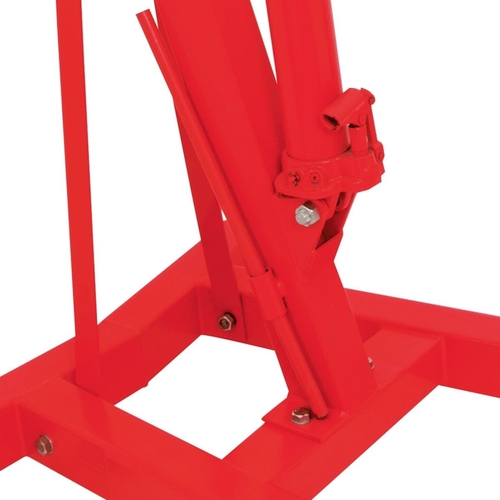

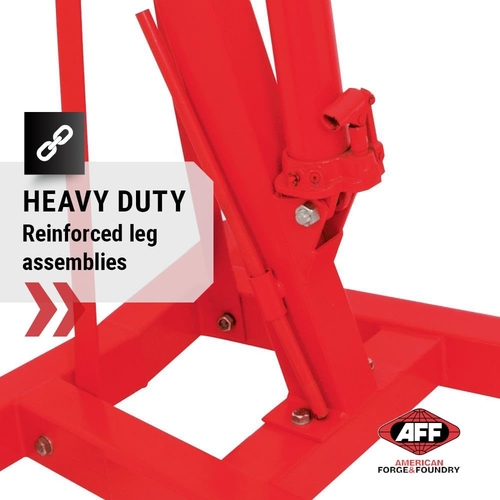

- Heavy gauge reinforced steel legs and boom structure resist twist and bending under load.
- Oversized 4.25 inch rear swivel casters and 6 inch fixed front wheels for mobility over shop floors.
- Wide base dimensions provide stability: rear frame height and width offer support even under heavy loads.
- Specifications:
- Manufacturer: American Forge & Foundry
- Part Number: 3584
- Product Type: Engine Crane
- Maximum Capacity: 3 Ton (6000 lb)
- Boom Positions & Capacity: Position 1 - 3 Ton; Position 2 - 2 Ton; Position 3 - 1.5 Ton; Position 4 - 1 Ton
- Base Width Rear: 33 inch
- Front Legs Width Retracted: 23 inch; Extended: 28.5 inch
- Overall Length Retracted: about 59.4 inch; Extended: about 90.9 inch
- Height of Rear Frame: about 61.5 inch
- Wheel Sizes: Rear swivel casters 4.25 inch; Front fixed wheels 6 inch
- Weight: approx 359 lb
- The American Forge & Foundry 3584 Engine Crane, Heavy Duty, 3 Ton Capacity can also be referred to as AFF 3584 engine hoist, AFF heavy duty engine crane 3 Ton, AFF 6000-lb engine crane, AFF reinforced boom engine hoist, American Forge & Foundry truck engine crane.
American Forge & Foundry builds the 3584 Engine Crane for demanding engine, transmission, differential removal tasks in commercial, fleet, or agricultural settings, combining reinforced steel construction, versatile boom positions, and safety features to handle heavy loads reliably.
Q: What is the highest load this crane can lift?
A: At its shortest boom setting it can lift up to 3 Ton (6000 lb); capacity decreases at longer boom positions to ensure safe leverage.
Q: How many boom positions does it have and what is their reach?
A: It has four positions: 3 Ton (shortest reach), 2 Ton, 1.5 Ton, and 1 Ton (longest reach) with increasing boom length as capacity decreases.
Q: What safety features are built in?

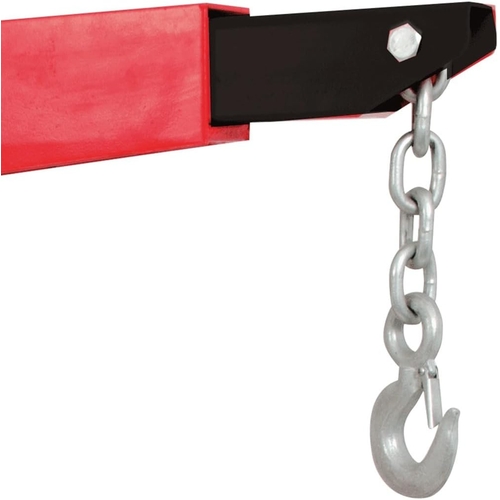

A: It has a hydraulic ram with overload bypass, forged steel hook with safety latch, reinforced legs, and a wide stable base to prevent tipping under load.
