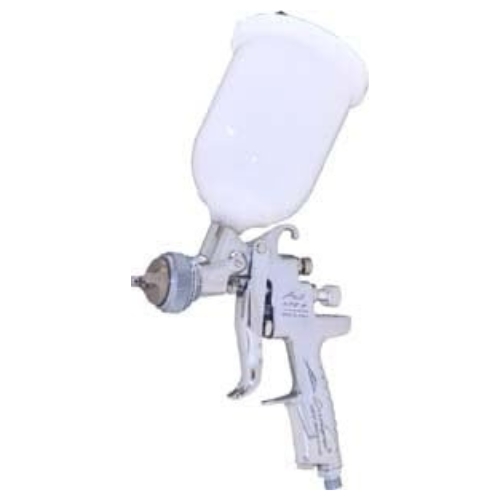

Anest Iwata 9236 AirGunsa HVLP Primer Gun, 1.8 mm, 600 ml Cup
- The Anest Iwata 9236 AirGunsa is a gravity-feed HVLP spray gun configured with a 1.8 mm fluid nozzle and 600 mL plastic gravity cup. Designed for primer, sealer, and filler use, it provides a wide 12-inch spray pattern at a recommended 29 psi with 7.5 CFM airflow.
- Features:
- 1.8 mm fluid nozzle sized for primers and sealer materials.
- All wetted parts made of stainless steel for corrosion resistance and durability.
- Compatible with 3M PPS cup systems for fast color changes.
- Ergonomic design with light balanced body and smooth trigger to reduce fatigue.
- Replacement parts and service kits available through Anest Iwata dealer network.
- Specifications:
- Manufacturer: Anest Iwata
- Part / Model: 9236
- Nozzle / Fluid Tip: 1.8 mm
- Cup Capacity: 600 mL (gravity feed)
- Recommended Pressure: 29 psi (at air input)
- Air Consumption: 7.5 CFM
- Pattern Width: 12 inch
- Wetted Materials: Stainless steel
- System Compatibility: Intended for HVLP primer, sealer, and filler spray application in body shop and refinishing use; suitable for auto, industrial coatings on plastic, metal, filler substrates.
- Quantity: Single spray gun with 600 mL gravity cup assembly
- The Anest Iwata 9236 AirGunsa is also known as 1.8 mm primer gun, HVLP gravity primer gun, AZ3HTE2 9236, stainless wetted parts gun, and AirGunsa 1.8 HVLP spray gun.
Anest Iwata is a global manufacturer of professional spray equipment and air compressor systems, renowned for its precision engineering, high performance, and commitment to delivering superior finishing solutions for automotive, industrial, and fine art applications.
Q: What nozzle size comes standard on the 9236?
A: It’s equipped with a 1.8 mm fluid nozzle, ideal for primers, sealers, and filler materials.
Q: What are the recommended air pressure and airflow?
A: The typical setup calls for around 29 psi air pressure and an air consumption of 7.5 CFM.
Q: Can I use 3M PPS cups with it?
A: Yes, The 9236 is compatible with 3M PPS type cup systems for efficient color changes.
