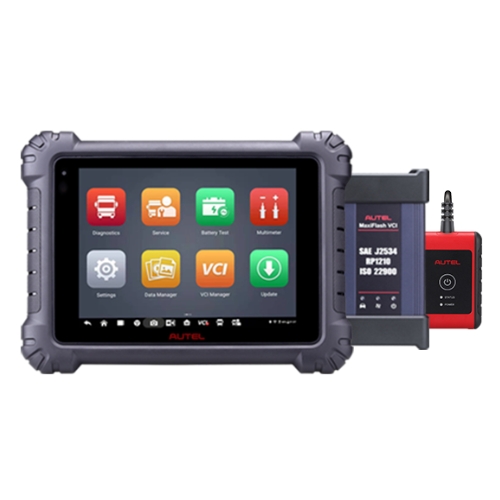

Autel MS909CV Diagnostic Tablet, Aluminum, Commercial Vehicle Wireless J2534 Tool
- The Autel MS909CV Diagnostic Tablet is an aluminum wireless tablet built for commercial vehicle diagnostics. It includes a Bluetooth Wireless Vehicle Communication Interface (VCI) / J2534 pass-through module, supports more than 80 models of light, medium and heavy-duty vehicles, provides ADAS calibrations for Class 3-8 with dynamic/static systems, and performs code reading/erasing, live data plotting, and active tests.
- Features:
- Aluminum housing for rugged durability in shop environments.

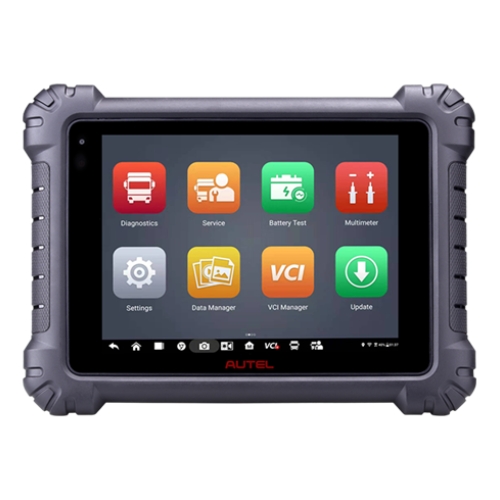

- 9.7-inch touch-screen display (1536 x 2048 resolution) for clear visuals according to Autel specifications.
- Wireless VCI / J2534 pass-thru support for ECU programming and diagnostics.
- Included tools: MaxiBAS B200 tester for battery, starting and charging system with alligator clamps, multimeter and amp clamps.

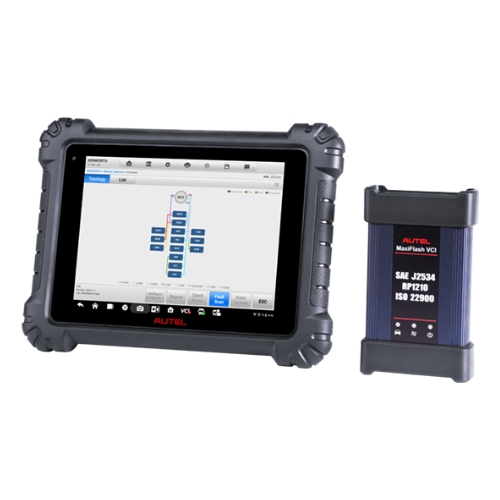

- Advanced diagnostics with module topology mapping, AutoSCAN/VINScan, and ADAS calibration support for Class 3-8 vehicles.
- Specifications:
- Manufacturer: Autel
- Model / Part Number: MS909CV
- Material: Aluminum
- Display: 9.7-inch touchscreen, 1536 x 2048 resolution
- Processor: Qualcomm 660 Octa-core (2.2 GHz Quad-core + 1.8 GHz Quad-core) with 4 GB RAM, 128 GB storage
- Battery: 15,000 mAh lithium-polymer battery
- Connectivity: Dual-band WiFi, Bluetooth 5.0 + BR/EDR, GPS, USB ports, HDMI, SD card support up to 256 GB
- Operating System: Android 10.0
- Vehicle Compatibility: Light, medium, and heavy-duty commercial vehicles; supports ADAS calibration for Classes 3-5 and dynamic calibration for Classes 6-8
- System/Application: Full commercial-vehicle diagnostics including starting, charging, battery health, ADAS calibration, ECU coding and active functional tests
- The Autel MS909CV may also be called commercial vehicle diagnostic tablet, MS909CV wireless scan tool, heavy duty diagnostics tablet, J2534 VCI commercial tool, and Autel tablet for commercial ADAS & full-system diagnostics.
The Autel MS909CV Aluminum Diagnostic Tablet brings high-performance diagnostics, broad vehicle coverage, ADAS calibration capabilities, and rugged wireless design-perfect for commercial workshops handling trucks, buses or heavy equipment.
Q: How many vehicle types does the MS909CV support?
A: It supports diagnostics for over 80 light, medium, and heavy-duty commercial vehicle models.
Q: What is the display specification?
A: It uses a 9.7-inch touchscreen with 1536 x 2048 resolution.
Q: What comes included with the MS909CV?
A: It includes the wireless VCI/J2534 module, MaxiBAS B200 battery/charging system tester with clamps, multimeter, and amp clamp for full diagnostic capability.
