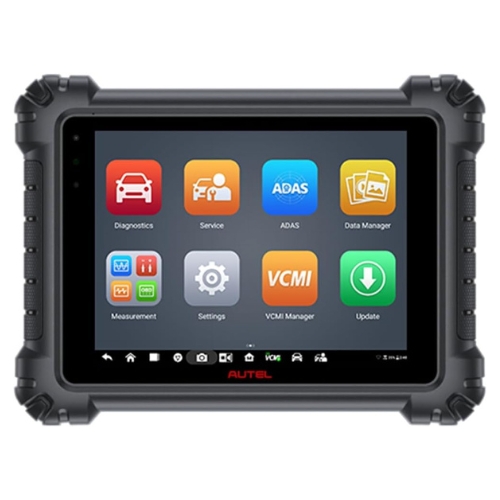

Autel MS919 Diagnostic Tablet, Aluminum, Advanced VCMI 5-in-1 Tool
- The Autel MS919 Diagnostic Tablet is an aluminum tablet powered by an octa-core processor and 128 GB storage, with a 9.7-inch touchscreen. It includes the MaxiFlash VCMI 5-in-1 tool (oscilloscope, waveform generator, multimeter, CAN bus tester, wireless VCI), supports DoIP/D-PDU/Mega CAN protocols, offers dynamic topology mapping, and handles advanced diagnostics and repair guidance.
- Features:

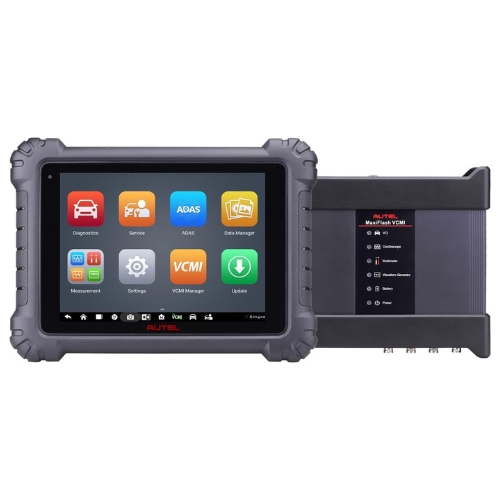

- Advanced VCMI 5-in-1 device combining VCI communications, 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.

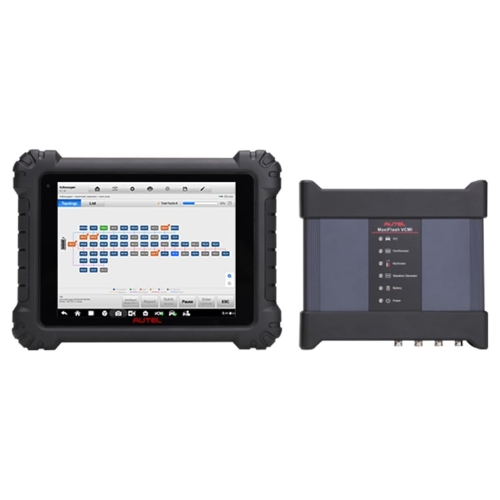

- Dynamic topology module mapping shows system status and module layout onscreen to help locate faults faster.
- Extensive waveform library and preset guides for component testing and oscilloscope usage.
- Front and rear cameras for VIN or license-plate scanning and component location photos.
- High-capacity 15,000 mAh battery supports approximately 8 hours of continuous use.
- Specifications:
- Manufacturer: Autel
- Model / Part Number: MS919
- Material: Aluminum
- Display: 9.7-inch touchscreen, 1536 x 2048 resolution
- Processor: Octa-core (2.3 GHz + 1.7 GHz)
- Memory: 4 GB RAM & 128 GB onboard storage
- Connectivity: Dual WiFi, Bluetooth, USB, support for DoIP / D-PDU / Mega CAN protocols
- Cameras: Rear 16 MP autofocus with flashlight; front camera included
- Battery: 15,000 mAh lithium-polymer; approx. 8 hours continuous use
- Operating System: Android 10
- System/Application: Full-system diagnostics including reading and clearing DTCs, active tests, ECU coding/programming, topology mapping, waveform/oscilloscope testing, and repair guidance
- The Autel MS919 may also be referred to as MaxiSYS MS919 tablet, advanced diagnostic scanner with VCMI, wireless automotive diagnostics tool, ECU programming tablet, and all-systems repair guidance device.
The Autel MS919 Aluminum Tablet offers shop-grade diagnostics with a powerful VCMI kit, high storage, rich protocol support, and long battery life. It is ideal for technicians needing in-depth diagnostics and streamlined workflows.
Q: What is the "Advanced VCMI 5-in-1 Tool" included?
A: It includes a wireless vehicle communication interface (VCI), 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
Q: How long does the battery last?
A: The 15,000 mAh battery delivers about 8 hours of continuous use.
Q: Does it support advanced protocols like DoIP and Mega CAN?
A: Yes, it supports DoIP, D-PDU, Mega CAN, and other modern vehicle network protocols.
