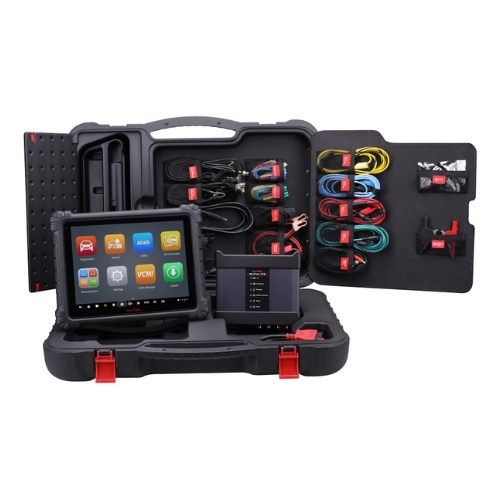

Autel MSUltra MaxiSYS Ultra Diagnostic Tablet, Aluminum, Advanced VCMI 5-in-1 Scanner
- The Autel MSUltra MaxiSYS Ultra Diagnostic Tablet is an aluminum handheld tablet with Advanced VCMI. It combines a 5-in-1 vehicle interface device (VCI, oscilloscope, waveform generator, multimeter, CAN-Bus tester), supports Dynamic Topology Module Mapping and split-screen multitasking, and has large memory and display for in-depth diagnostics across U.S., Asian, and European 1996-newer vehicles.
- Features:
- Aluminum housing for rugged durability and heat dissipation.
- 12.7-inch (2732 x 2048) capacitive touchscreen display enabling clear visuals and split-screen applications.
- Powered by Octa-core processor (2.3GHz + 1.7GHz) and 256GB built-in memory for fast operation and large storage of diagnostics data.
- Advanced VCMI 5-in-1 device that includes 4-channel oscilloscope, waveform generator, multimeter, and CAN-Bus tester functions.
- Oscilloscope preset guides, waveform library, multi-prediction tests, and enhanced protocols like DoIP, D-PDU, Mega CAN.
- Specifications:
- Manufacturer: Autel
- Model / SKU: MSUltra (MaxiSYS Ultra)
- Material: Aluminum
- Display: 12.7-inch 2732 x 2048 capacitive touchscreen
- Processor: Octa-core (2.3GHz quad + 1.7GHz quad)
- Memory: 4GB RAM & 256GB onboard storage
- Battery: 18,000mAh lithium-polymer battery; approximately 8 hours continuous use
- Cameras: Rear 16MP autofocus with flashlight; Front 5MP
- Connectivity: Dual WiFi (802.11 a/b/g/n/ac MIMO), Bluetooth, USB ports, GPS, SD card support up to 256GB
- Operating System: Android 7.0
- Protocol Support: DoIP, D-PDU, Mega CAN
- System/Application: Full-system diagnostics, ECU coding, active tests, ADAS calibration support, module mapping, waveform & electrical testing functions for workshop and fleet use
- The Autel MSUltra may also be called MaxiSYS Ultra tablet, MSUltra diagnostic scanner, full-system VCMI tablet, advanced module mapping tablet, and bi-directional automotive diagnostic tool.
Autel MSUltra MaxiSYS Ultra Diagnostic Tablet brings top-tier diagnostics hardware with Advanced VCMI, large display, strong memory, and built-in tools for oscilloscope, CAN-Bus and waveform testing-built for professional workshops that demand precision and efficiency.
Q: What is the display and memory of MSUltra?
A: It uses a 12.7-inch (2732 x 2048) touchscreen and includes 256GB onboard memory.
Q: What functions does the Advanced VCMI provide?
A: It provides VCI communications, 4-channel oscilloscope, waveform generator, multimeter, and CAN-Bus tester.
Q: What battery life can users expect?
A: Approximately 8 hours of continuous use.
