Autel TBE200 Examiner Scan Tool, Tire & Brake Disc Wear Examiner
- The Autel TBE200 Examiner Scan Tool is a plastics-housed laser-enabled device that measures tire tread depth and brake disc wear without removing wheels. It features dual cameras to document wear and damage, scans Tire Identification Numbers, and displays results via a 1.65-inch AMOLED touchscreen for quick service decisions.
- Features:
- Precision laser measurement for tread depth and brake disc wear with 0.1 mm accuracy.
- Dual cameras: one for macro close-ups and one for zoomable documentation of damage and TIN (Tire Identification Number).

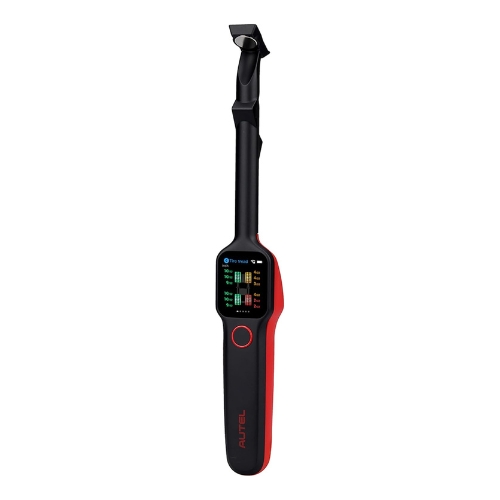

- 1.65-inch AMOLED touchscreen display showing real-time data curves, wear patterns, and graphical status.
- Portable design with internal rechargeable battery (~8 hours) and USB-C / Wi-Fi connectivity.
- Quick mode combining both tread and disc measurement; also uneven wear analysis and maintenance suggestions.
- Specifications:
- Manufacturer: Autel
- Model / SKU: TBE200 Examiner
- Material: Plastic
- Display: 1.65-inch AMOLED capacitive touchscreen
- Processor: 4 x ARM Cortex-A35 @ 1.5 GHz
- Memory: 1 GB RAM; 4 GB onboard storage
- Cameras: 8 megapixel zoomable + 1 megapixel macro camera
- Battery: 3.7 V / 3000 mAh lithium-ion; tested up to ~8 hours continuous use
- Connectivity: USB-C and Wi-Fi
- Measurement Accuracy: 0.1 mm for tread depth and brake disc wear
- Operating Temperature: -10 to 45degreesC
- System/Application: Inspection of tire tread, brake disc wear, DOT / TIN scanning; used in shop and fleet service
- The Autel TBE200 may also be called Tire & Brake Disc Examiner, laser tread depth gauge, brake disc wear check tool, Autel MaxiTPMS TBE200, and tire inspection scanner.
The Autel TBE200 Examiner combines precise measurement, dual-camera documentation, and intuitive display to make tire and brake inspection fast and reliable for service technicians.
Q: What is its tread depth measurement accuracy?
A: Measurements are accurate to 0.1 mm.
Q: How long is the battery life?
A: Up to about 8 hours of continuous use on a full charge.
Q: What display and camera features does it have?
A: It has a 1.65-inch AMOLED touchscreen, plus dual cameras (8 MP zoomable and 1 MP macro) for damage and TIN documentation.
