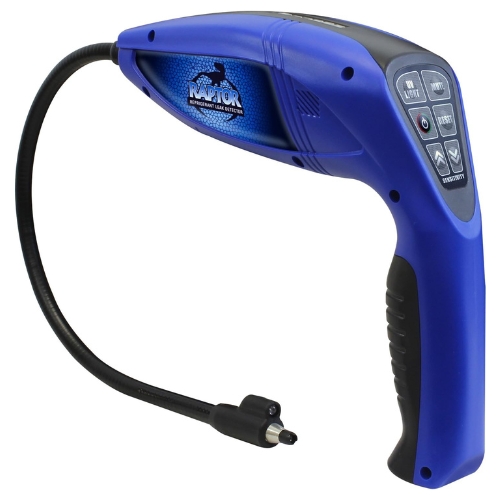

Mastercool 56200 Raptor Refrigerant Leak Detector, UV Blue Light Dual Detection
- The Mastercool 56200 Raptor Leak Detector with UV Blue Light offers dual-mode detection (corona discharge electronic plus UV/blue LED) certified under SAE J1627; includes flexible 16 inch probe, sensor tip, UV safety glasses, blow-molded case and two "C" batteries. Ideal for detecting small leaks in automotive or HVAC/R systems.
- Features:
- Corona discharge electronic sensor with 6 sensitivity levels (15 detection levels) for refined control over detection thresholds.
- Ultra-bright UV/blue LED light built into probe tip to assist leak dye inspection and visual confirmation under UV light.
- Detects leaks as small as 1/10 ounce per year across all common refrigerants (CFCs, HCFCs, HFCs).
- Includes mute function, visual leak level LED indicator, variable frequency audible alarm, reset function, keypad control and battery-test function.

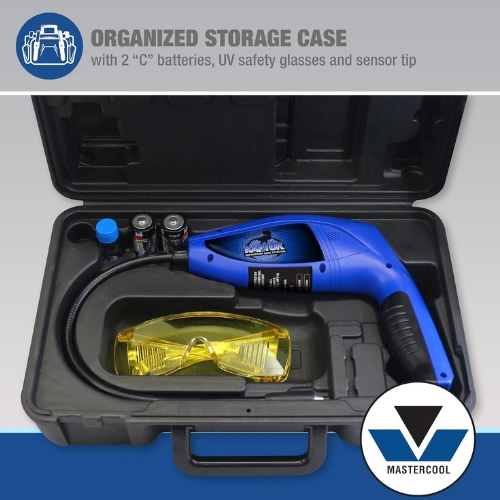

- Includes:
- Raptor Leak Detector unit (56200)
- Flexible 16 inch probe (? 43 cm) with UV/blue LED light in tip
- UV safety glasses for dye inspection under UV light
- Sensor tip (replaceable part)
- Two "C" size batteries (included)
- Blow-molded carrying case
- Specifications:
- Manufacturer: Mastercool
- Part Number: 56200

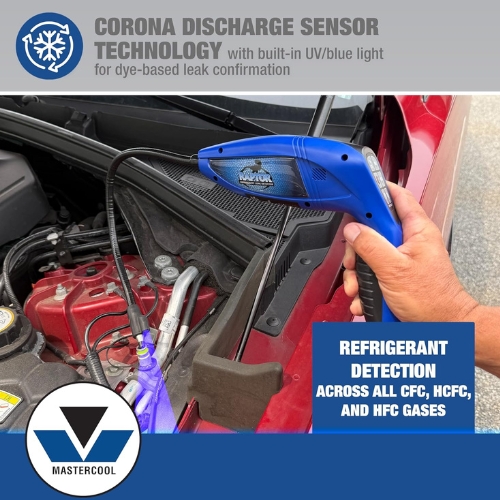

- Sensor Type: Corona Discharge with UV/Blue LED dual detection
- Sensitivity: 6 levels (15 detection thresholds)

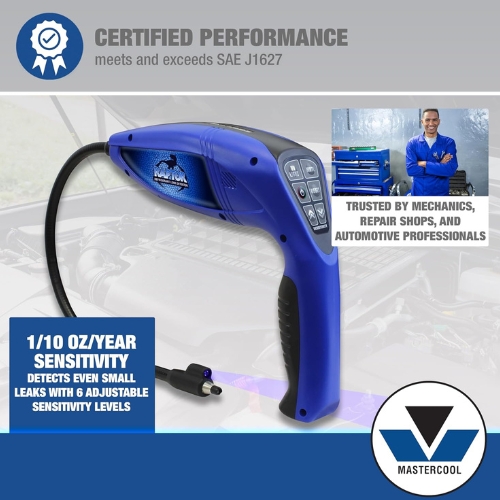

- Leak Detection Limit: down to 1/10 ounce per year
- Refrigerant Compatibility: Detects CFCs, HCFCs, HFC refrigerants
- Standards / Certification: Meets and exceeds SAE J1627
- Probe Length: 16 inches (? 43 cm) flexible probe
- Power Source: 2 "C" size batteries
- System Compatibility: Designed for HVAC/R and automotive leak detection use where both electronic sensing and UV dye inspections are desired; works well for R134a, R1234yf, etc.
- The Mastercool 56200 can also be referred to as Mastercool dual-mode leak detector 56200, Raptor UV/Blue light refrigerant leak detector, corona discharge & UV leak sniffer, 16-inch probe HVAC leak detector, and Mastercool 56200 Raptor Detect-with-UV kit
Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.
Q: Do I need UV dye to use the UV light feature?
A: Yes, the UV/blue LED light lets you see fluorescence if UV-sensitive dye has been added to the refrigerant; the detector’s UV light will not identify leaks on its own without dye.
Q: Can this detector be used on both R134a and R1234yf systems?
A: Yes, it detects those refrigerants using its corona discharge sensor, so it works on both R134a and R1234yf systems.
Q: What is meant by "6 levels of sensitivity, 15 levels of detection"?
A: The unit has six user-selectable sensitivity settings; each sensitivity level has subdivisions (total 15 thresholds) to fine-tune detection sensitivity for small vs larger leaks.
