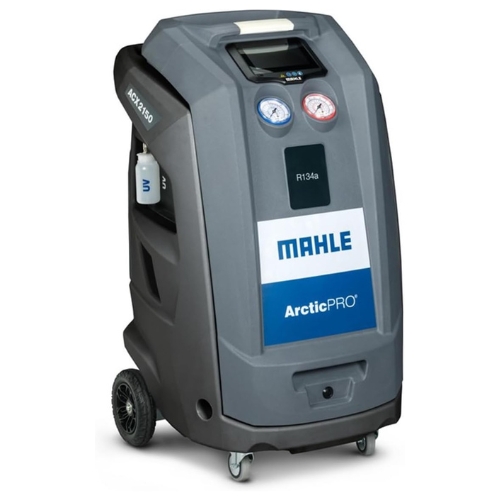

Mahle ACX2150 Refrigerant Handling System, 7 inch
- The Mahle ACX2150 is a fully automatic R134a refrigerant recovery, recharge and recycling service machine; it features a 7-inch capacitive touch LCD display, intuitive user interface, integrated automatic oil and UV dye injection, wireless software updates, and optional refrigerant identifier.
- Features:
- Automatic oil system management including weighing recovered oil and automatically injecting correct amount of oil for precise maintenance.
- UV dye injection built in for leak detection to allow visual verification of system integrity.
- 7 inch capacitive touch color LCD display with intuitive menu, plus a hinged service door and visible LED status indicator for ergonomic usage and easy visibility across the workshop.
- Fully automatic operation with SAE J2788 and SAE J2099 certification, achieving approximately 95 percent recovery performance and ±0.5 ounce charging accuracy at ambient temperatures.
- Specifications:
- Manufacturer: Mahle
- Part Number: 460-80445-00 (ACX2150)
- Refrigerant: R134a only
- Compressor: 3/8-HP
- Charging Cylinder Capacity: 30 lb
- Filter-Drier Capacity: 150 lb
- Hose Length: 9 ft
- Vacuum Pump: dual-stage 2 CFM vacuum pump
- Operating Temperature Range: 50degrees to 122degrees F (10degrees to 50degrees C)
- Power Supply: 120 VAC, 60 Hz, drawing 12 amps
- Certifications: SAE J2788, SAE J2099, UL 1963

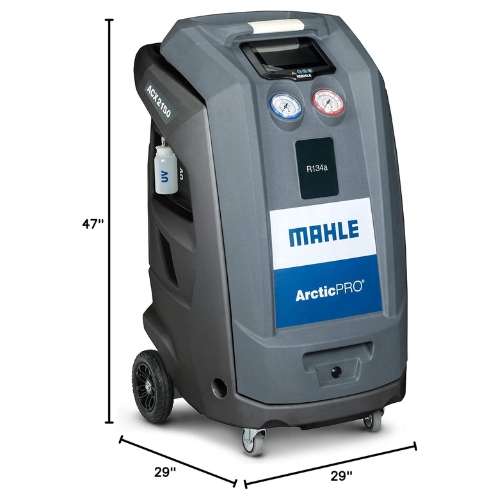

- Dimensions: 47 in height x 29 in width x 29 in depth ( 119 cm x 74 cm x 74 cm)
- System Compatibility: Designed for automotive service shops servicing R134a systems; supports recovery, recycling, recharge workflows; optional identifier prevents contamination; suitable for use with UV dye detection.
- The Mahle ACX2150 can also be referred to as Mahle ACX2150 R134a service machine, Mahle ArcticPRO recovery/recharge recycler, UV dye-injecting ACX2150 unit, touch screen AC service equipment, Mahle ACX2150 shop AC machine.
Mahle is a global manufacturer of engine systems, filtration, thermal management, electrics, and aftermarket components for both combustion and electric mobility.
Q: Does it detect refrigerant type automatically?
A: The ACX2150 optionally supports a refrigerant identifier that verifies the refrigerant being serviced to avoid mixing or contamination.
Q: What is the recovery performance at moderate ambient temperatures?
A: At around 70 to 75 degreesF (21 to 24 degreesC), the unit achieves about 95 percent recovery of R134a within 30 minutes.
Q: What kind of display and user interface does it have?
A: It includes a 7 inch color capacitive touch LCD screen with an intuitive interface, LED status indicator, and hinged service door for ease of maintenance.
