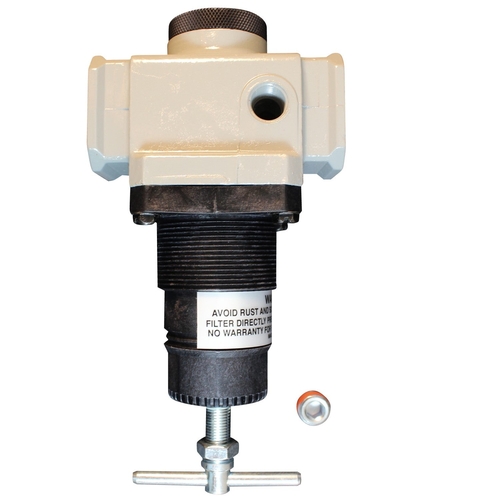

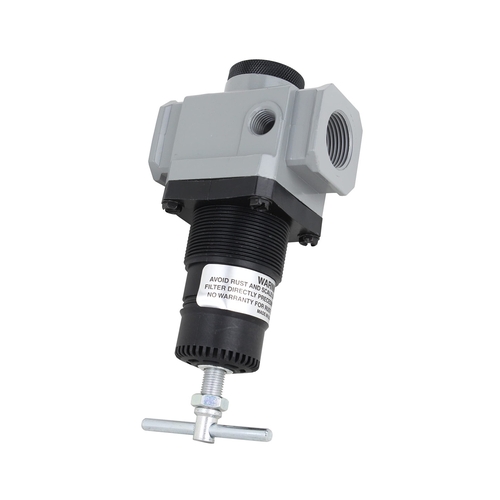

Milton 1026-8 High-Pressure Relief Regulator, 3/4" NPT Midsize, 250 PSI, 220 SCFM
- The Milton 1026-8 High-Pressure Relief Regulator provides stable downstream air pressure through a balanced piston design, delivering consistent control for heavy-duty pneumatic systems up to 250 PSI and 220 SCFM.
- Features:
- Relieving-type regulator maintains consistent downstream pressure under variable input conditions
- 3/4 inch NPT midsize inlet offers high flow capacity in a compact design
- Offset gauge ports allow easy installation of gauges or secondary supply lines
- Durable aluminum die-cast body with Buna-N diaphragm ensures long service life
- Rated for 220 SCFM flow at 100 PSI for demanding pneumatic applications
- Specifications:
- Manufacturer: Milton Industries
- Part Number: 1026-8
- Thread Size: 3/4 inch NPT
- Maximum Inlet Pressure: 250 PSI
- Maximum Flow: 220 SCFM at 100 PSI
- Offset Gauge Ports: Two 1/4 inch NPT ports (one plug included)
- Body: Aluminum die-cast
- Diaphragm: Buna-N
- Operating Temperature Range: 40 degreesF to 120 degreesF
- Type: High-pressure relieving regulator
- Also known as high-pressure air regulator, 3/4 inch NPT midsize regulator, relief-type pneumatic regulator, heavy-duty regulator, and Milton 1026-8 air regulator.
The Milton 1026-8 High-Pressure Relief Regulator is engineered for reliability and efficiency, making it a trusted choice for industrial and automotive pneumatic systems requiring stable high-pressure control.
Q: What is the maximum flow capacity?
A: This regulator handles up to 220 SCFM at 100 PSI, suitable for high-demand pneumatic systems.
Q: Can I attach a gauge to this regulator?
A: Yes, it features two offset 1/4 inch NPT ports, one of which can be fitted with a gauge, while the other comes with a plug.
Q: What type of regulator is it?
A: It is a relieving-type regulator, designed to maintain stable downstream pressure by venting excess air when needed.
