Fluke 177 True-RMS Digital Multimeter, 1000 Volt AC DC Range, CAT III 1000V CAT IV 600V Safety

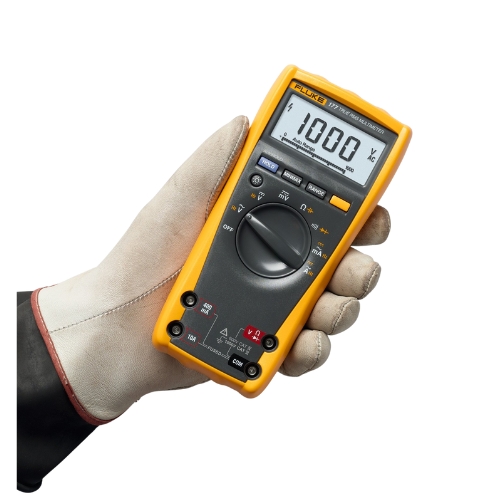

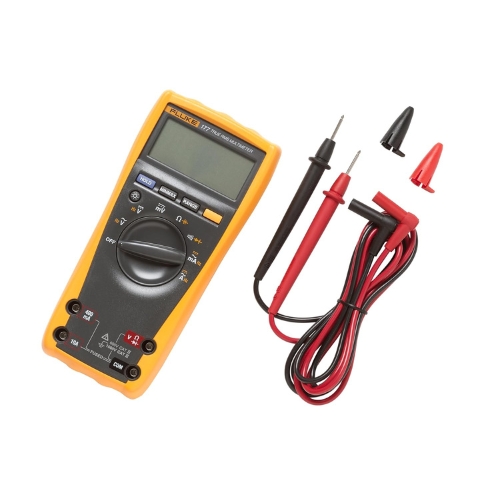

- The Fluke 177 Digital Multimeter is a plastic-cased tool for advanced electrical diagnostics. It offers True-RMS measurement of AC and DC voltage up to 1000 volts, frequency, capacitance, resistance, continuity, and diode testing. It supports both manual and auto ranging, includes a backlit display with analog bar graph, Min/Max/Average hold, and comes with test leads and installed 9-volt battery.
- Features:
- True-RMS voltage and current measurements to capture accurate readings on non-linear loads.
- Backlit LCD with analog bar graph improves visibility and allows observation of signal trends.
- Min/Max/Average recording and Auto Hold / Display Hold functions to monitor changing signals over time.
- Safety ratings of CAT III 1000 volts and CAT IV 600 volts, designed for use in demanding environments.
- Specifications:
- Manufacturer: Fluke Corporation
- Model / SKU: 177
- Material: Plastic housing
- Voltage AC/DC Range: Up to 1000 volts
- Current Range AC/DC: Up to 10 amps (with overload protection)
- Resistance Range: Up to 50 megaohms
- Capacitance Range: Up to 10,000 microfarads
- Frequency Range: AC input signal up to 100 kHz
- Continuity Test: Audible beeper; diode test included

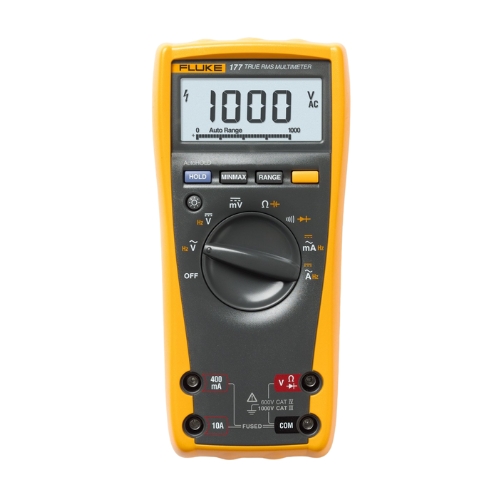

- Display: 6000-count resolution, with analog bar graph and backlight
- Operating Environment: -10degreesC to +50degreesC

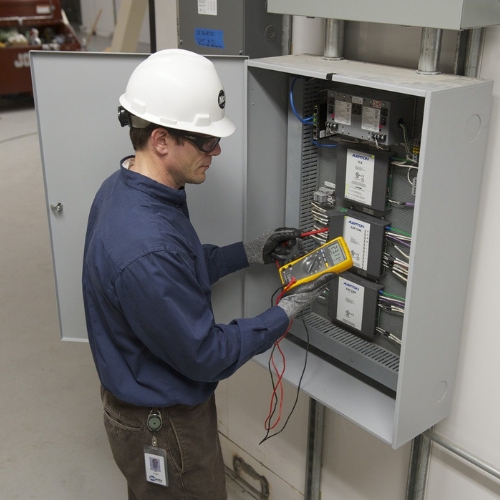

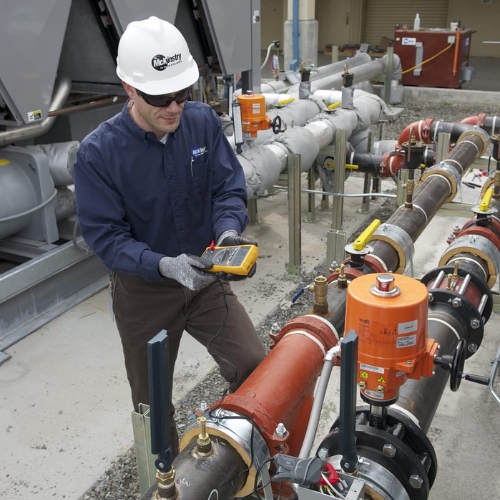

- System/Application: Professional electrical and electronic diagnostics, field service, industrial and maintenance use
- The Fluke 177 may also be called Fluke 177 True-RMS Multimeter, Fluke 170-Series 177, Industrial Digital Multimeter 177, Fluke 177 AC/DC TRMS Tester, and Fluke 177 Backlit Multimeter.
The Fluke 177 Plastic True-RMS Digital Multimeter combines accuracy, durability, and safety in one handheld tool, ideal for technicians requiring reliable measurements of voltage, current, and more in both electrical and electronic systems.
Q: What is the AC/DC voltage range?
A: It measures up to 1000 volts on both AC and DC.
Q: Does it have functions for frequency and capacitance?
A: Yes. It supports frequency measurement up to 100 kHz and capacitance up to 10,000 microfarads.
Q: What safety category ratings does it have?
A: It is rated CAT III 1000V and CAT IV 600V.
