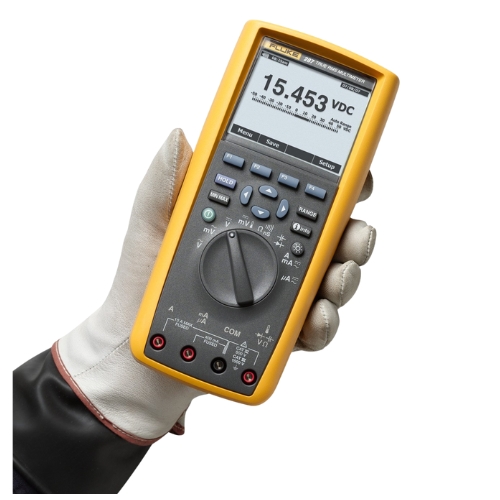

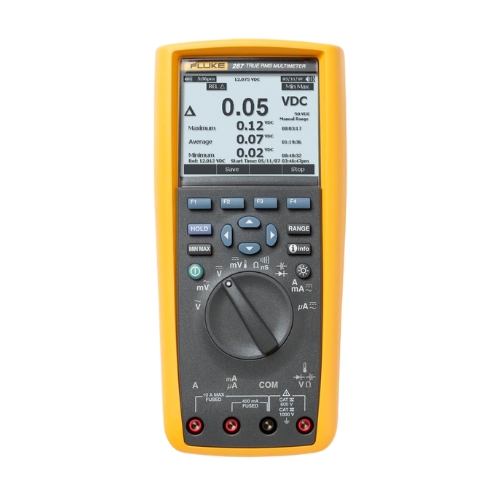

Fluke 287 True-RMS Electronics Logging Multimeter, TrendCapture Logging, 1000 Volt 10 Amp Measurement Range
- The Fluke 287 True-RMS Electronics Logging Multimeter is designed for advanced diagnostics and troubleshooting. It combines precise measurements with built-in TrendCapture logging to graph data directly on the meter, helping users identify anomalies without a PC. It measures AC/DC voltage up to 1000 volts, current up to 10 amps, resistance, frequency, capacitance, and temperature with high accuracy.
- Features:
- True-RMS AC/DC voltage and current measurements with bandwidth up to 100 kHz for non-linear loads.
- TrendCapture data logging with memory for approximately 15,000 events, viewable on the meter display.
- Large 50,000-count ¼ VGA display with white backlight and multiple measurement sets visible at once.
- Min/Max/Average and peak capture to track signal fluctuations and fast transients.
- Selectable AC input filters and relative mode to remove test lead resistance.
- Specifications:
- Manufacturer: Fluke Corporation
- Model / SKU: 287
- Material: Plastic housing
- Voltage Range AC/DC: up to 1000 volts
- Current Range AC/DC: up to 10 amps
- Resistance Range: up to 500 megaohms
- Capacitance Range: up to 100 millifarads
- Frequency Range: up to 999.99 kHz
- Temperature Measurement: -200 to 1350 Celsius
- Display: 50,000-count LCD with bar graph and backlight
- Logging Memory: Up to 15,000 recorded events
- Safety Rating: CAT III 1000V, CAT IV 600V
- System/Application: Electronics troubleshooting, industrial diagnostics, and long-term monitoring
- The Fluke 287 may also be referred to as Fluke 287 Logging Multimeter, Fluke 287 Electronics Multimeter, Fluke 287 TrendCapture Meter, Fluke 287 High Precision DMM, and Fluke 287 Data Logging Multimeter.
The Fluke 287 Plastic True-RMS Electronics Logging Multimeter delivers accurate measurements and powerful data logging capabilities, making it ideal for advanced troubleshooting, design verification, and maintenance in electronic and industrial applications.
Q: What is the maximum voltage and current range?
A: The Fluke 287 measures up to 1000 volts AC/DC and up to 10 amps of current.
Q: Does it include built-in logging features?
A: Yes, it features TrendCapture logging, capable of storing approximately 15,000 events viewable directly on the meter.
Q: Can it measure temperature?
A: Yes, it supports temperature measurement from -200 to 1350 Celsius with appropriate probe.
