Lisle 69200 Test Lead Kit for Lisle Relay Test Jumpers 56810 and 60610
- The Lisle 69200 test lead kit, manufactured by Lisle Corporation, includes adapter leads and wire assemblies designed to connect the relay test jumper kits-specifically Lisle part numbers 56810 and 60610-to a multimeter for diagnostic testing.
- Features:

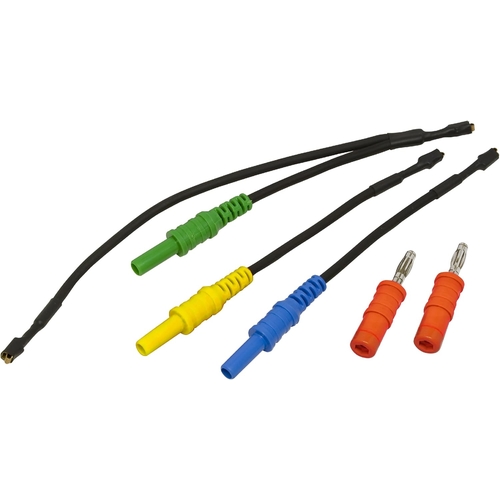

- Includes two terminal-to-banana tip wires, two pin tip-to-banana plug adapters, and one terminal-to-banana tip wire with jumper wire and test port

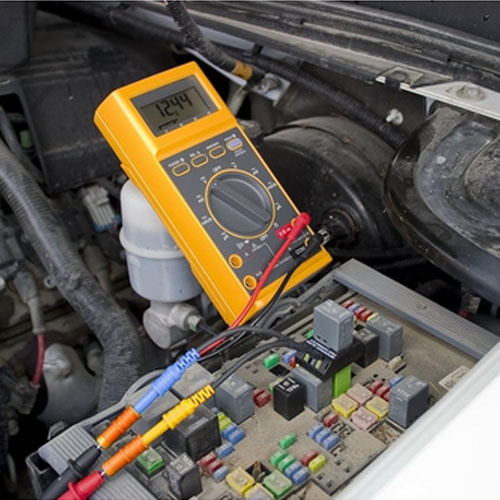

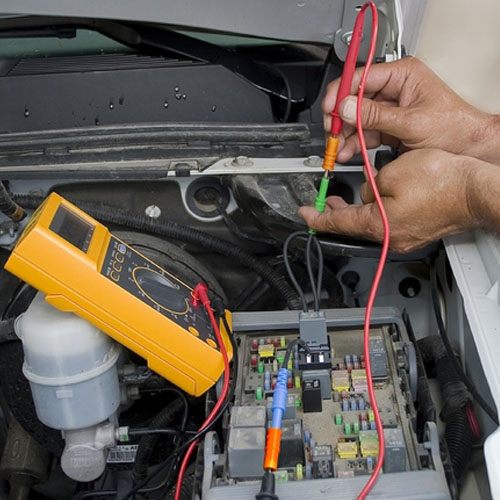

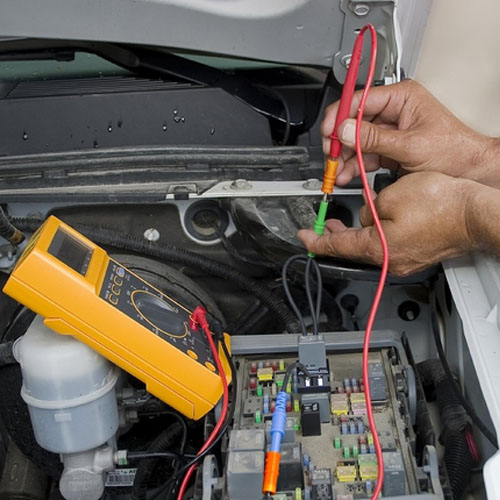

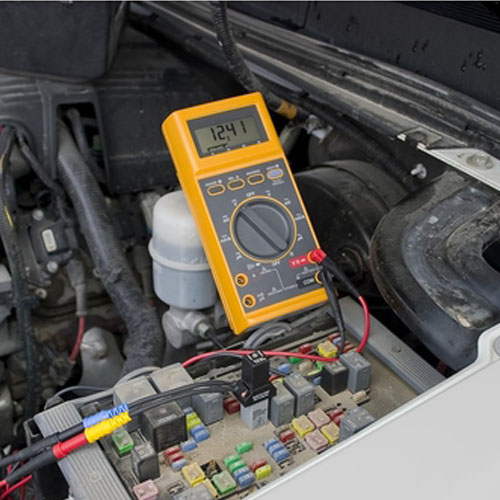

- Jumper wire closes relay circuit between common and open terminals and provides voltage test port or clamp-on amp meter access
- Compatible only with Lisle relay test jumper kits 56810 and 60610 for secure and accurate connection
- Specifications:
- Manufacturer: Lisle Corporation
- Part Number: 69200
- Product Type: Test lead kit for relay test jumpers
- Includes: Two terminal-to-banana tip wires; two pin tip-to-banana plug adapters; one terminal-to-banana tip wire with jumper wire and test port
- System Compatibility: Specifically designed for use with Lisle relay test jumper kits 56810 and 60610
- Also referred to as multimeter lead kit for relay testing, relay jumper test leads for 56810/60610, banana plug adapter kit for relay diagnostics.
Lisle Corporation offers the 69200 test lead kit as a precision adapter assembly crafted exclusively for connecting Lisle relay jumper kits 56810 and 60610 to multimeters, providing reliable relay circuit testing and diagnostics.
Q: Which relay test jumper kits is this lead kit compatible with?
A: It is compatible exclusively with Lisle relay test jumper kits part numbers 56810 and 60610.
Q: What components are included in the kit?
A: The kit includes two terminal-to-banana tip wires, two pin tip-to-banana plug adapters, and one terminal-to-banana tip wire with a jumper wire and test port.
Q: What functionality does the jumper wire provide?
A: The jumper wire connects the common to the open terminal to close the relay circuit and includes a test port for voltage measurement or to clip on an amp meter.
