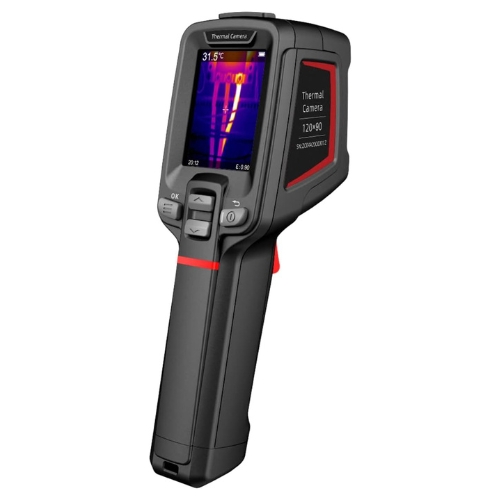

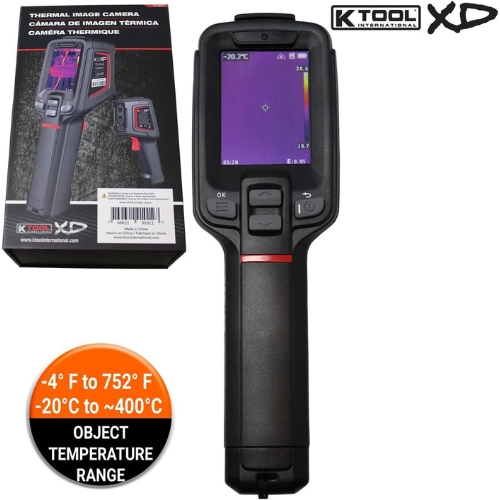

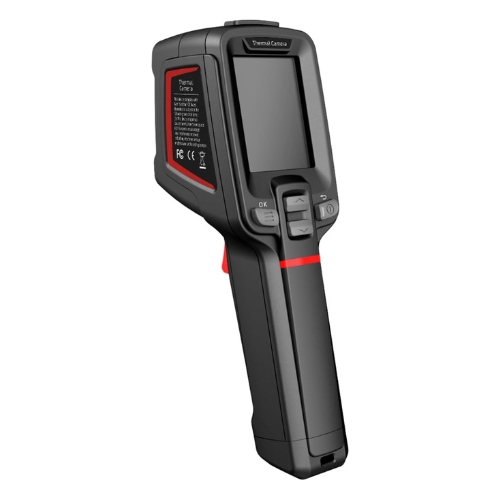

K-Tool International XD275 Thermal Image Camera, 2.4 Inch LCD Display, 120 x 90 IR Resolution, -4 to 752 F Temperature Range, 16 GB microSD Card
- K-Tool International XD275 thermal image camera is a handheld diagnostic imager for automotive, industrial, HVAC, and home inspection work. It pairs a 2.4 inch color LCD with a 120 x 90 infrared sensor and a -4 to 752 F temperature range, plus six color palettes and 25 Hz refresh. This is a standalone tool, not a replacement part.
- Features:
- 120 x 90 at 17 micrometer IR resolution with 25 Hz frame rate captures clear thermal detail to speed troubleshooting

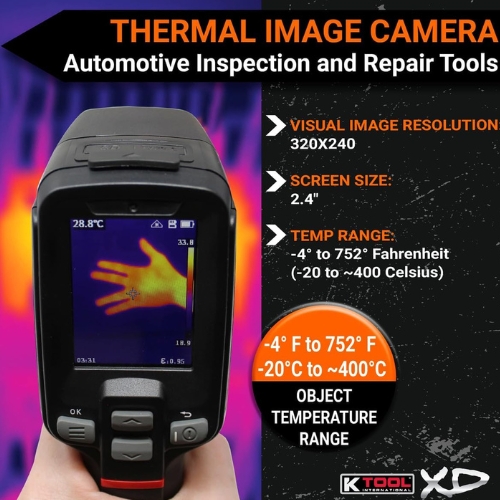

- 2.4 inch, 240 x 320 color LCD provides easy viewing of hot and cold patterns in the bay or on site
- -4 to 752 F temperature range covers common diagnostic needs in engines, exhaust, HVAC, and electrical panels
- Six color palettes, including White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, and Rainbow 2, improve contrast for different materials
- 8 plus hour operating time with approximately 2 hour fast charge supports a full day of inspections
- General purpose thermal imager for multiple systems; not a replacement part or vehicle specific component
- Includes:
- Thermal image camera (XD275)
- 16 GB microSD card
- USB C cable
- Wrist strap
- Specifications:
- Manufacturer: K-Tool International
- Part Number: XD275
- Display: 2.4 inch color LCD, 240 x 320 pixels
- IR Sensor Resolution: 120 x 90 at 17 micrometer
- Frame Rate: 25 Hz
- Temperature Range: -4 to 752 F (-20 to 400 C)
- Palettes: White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, Rainbow 2
- Battery Life and Charging: 8 plus hour operating time; approximately 2 hour fast charge
- Storage and Transfer: 16 GB microSD card included; USB C data transfer; capacity for over 90,000 stored images
- Laser and Capture: Trigger operated laser pointer and image capture
- System Compatibility or Application: Handheld thermal imaging for automotive, industrial, HVAC, and home inspection diagnostics; not a replacement part
- The Thermal Image Camera can also be referred to as thermal imager, infrared camera, IR camera, thermal inspection camera, and handheld thermal imaging camera.
K-Tool International supplies diagnostic and shop equipment for professional service environments. Model XD275 combines a handheld thermal imager, long battery life, and multiple palettes to deliver clear, actionable heat maps for faster fault finding and documentation.
Q: What temperature range does the XD275 measure?
A: It measures from -4 to 752 F, suitable for common automotive, HVAC, and electrical checks within that range.
Q: What accessories are included for storage and transfer?
A: A 16 GB microSD card, a USB C cable, and a wrist strap are included for image storage, data transfer, and carry convenience.
Q: How many color palettes are available?
A: Six palettes are available: White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, and Rainbow 2.
