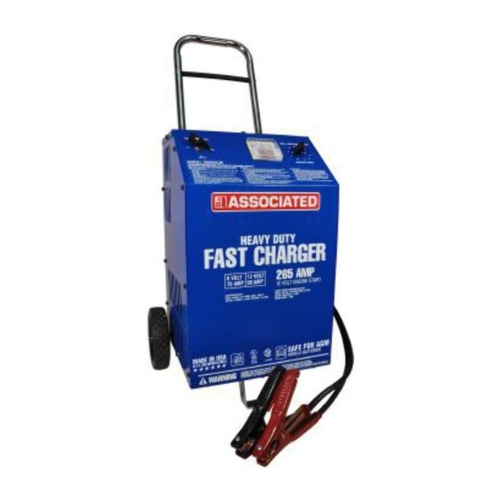

Associated 6009AGM Battery Charger, Steel Wheeled Fleet Charger, 6/12 Volt 70/60/2 Amp Continuous with 265 Amp Crank Assist
- The Associated 6009AGM Battery Charger is a steel wheeled charger designed for 6 and 12 volt battery systems. It offers continuous charge settings of 70 amps @ 6 volts, 60 amps @ 12 volts, and 2 amps trickle mode, plus a 265 amp crank assist at 12 volts. It also includes an AGM-safe 12 volt setting and Stop/Go polarity indicator.
- Features:
- Steel construction provides durability and long life in heavy duty shop or fleet environments.
- Stop/Go light for visual polarity check before engaging clamps to prevent reverse connection damage.
- 12V Safe for AGM mode protects advanced battery types during charging.
- Heavy duty, insulated clamps and leads designed to handle high current starter assist.
- Robust housing and ventilation suitable for continuous shop or fleet use.
- Specifications:
- Manufacturer: Associated Equipment
- Part Number / Model: 6009AGM
- Material: Steel
- Continuous Charge Currents: 70 amps @ 6 volts; 60 amps @ 12 volts; 2 amps trickle mode
- Crank Assist: 265 amps @ 12 volts
- Supported Battery Types: Standard lead-acid and AGM
- Cable and Clamps: Insulated clamp leads suitable for high current starter assist
- System/Application: Heavy-duty battery charger with fast charge and crank assist for automotive and fleet service
- The Associated 6009AGM can also be referred to as fleet charger model 6009AGM, AGM Safe Fast Battery Charger, 6/12V high output charger, steel wheeled starter assist charger, and 265A crank charger.
The Associated 6009AGM Steel Fleet Charger delivers high output continuous charge, strong crank assist, and safe AGM compatibility, making it a powerful solution for shops, fleet bays, or wherever fast reliable battery service is needed.
Q: What are the continuous current rates for the 6009AGM?
A: It provides 70 amps at 6 volts, 60 amps at 12 volts, and 2 amps for trickle (float/trickle mode).
Q: What is the crank assist rating?
A: The crank assist is 265 amps at 12 volts.
Q: Is there an AGM-safe setting?
A: Yes, it includes a "12V Safe for AGM" setting to protect AGM batteries during charging.
