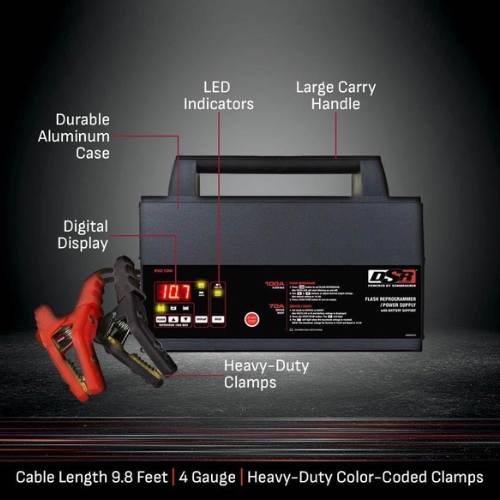

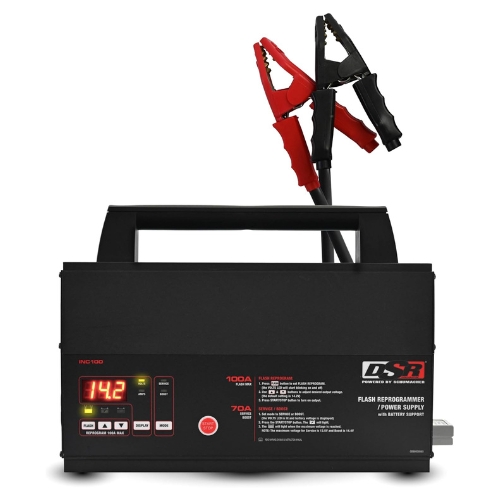

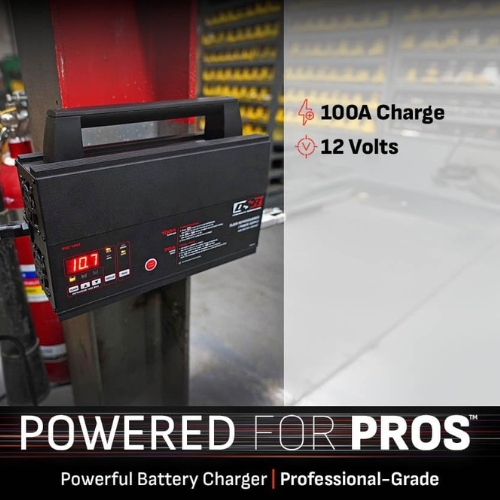

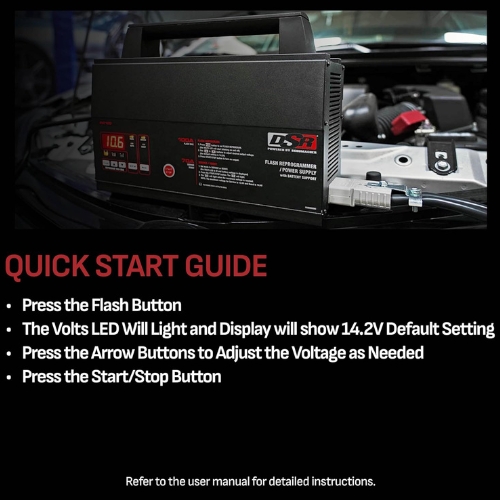

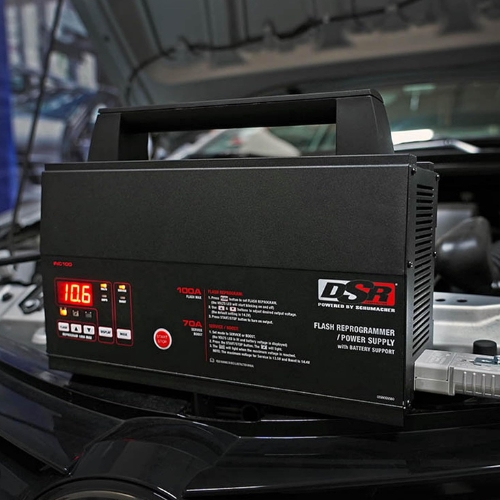

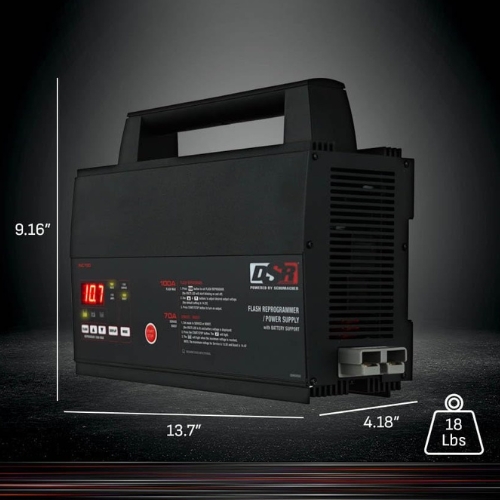

Schumacher INC100 100 Amp Power Supply / Automatic Battery Charger, Aluminum Enclosure
- The Schumacher INC100 is a 4-in-1 automotive power supply and battery charger that provides stable voltage for ECM/ECU reprogramming, battery maintenance, boost charging, and diagnostic work. It outputs up to 70 A continuous, with peak capability of 100 A.
- Features:
- Selectable DC voltage output between 13.0 V and 14.8 V to match service, flash, or boost modes
- Service mode holds battery voltage to prevent draw-down during long-duration vehicle service or diagnostics
- Boost / Flash reprogram mode delivers high current (up to 100 A peak) for ECU flashing or recovering weak batteries
- Microprocessor control for precise voltage regulation and safety protection
- Heavy-duty clamps and interchangeable output cables for flexible installation
- Specifications:
- Manufacturer: Schumacher Electric
- Model / Part Number: INC100
- Input Voltage: 120 V AC, 15 A continuous, 24 A intermittent
- Output Voltage: 12 V DC (adjustable 13.0-14.8 V)
- Output Current: 70 A continuous; 100 A peak (short-term)
- Modes: Service, Boost / Flash, Normal Charge
- Battery Types Supported: Standard, Calcium, AGM, Start-Stop, Gel cell
- Cooling: Dual temperature-controlled fans
- Enclosure: Aluminum housing with mounting brackets
- Application / System Compatibility: Suitable for ECU reprogramming, battery maintenance, diagnostics, and support in professional shop environments
The Schumacher INC100 is engineered for professional workshops requiring stable, high-current power for ECU flashing and battery support. Its adjustable output, service mode, and boost capability make it a versatile tool in advanced diagnostic environments.
Q: Can it maintain voltage during ECU flashing?
A: Yes - its service mode stabilizes voltage to prevent battery draw-down during programming.
Q: What is the boost capability?
A: It can supply up to 100 A in short bursts for flash reprogramming or jump-start assistance.
Q: Which battery types does it support?
A: It supports standard lead-acid, calcium, AGM, start-stop, and gel cell batteries.
