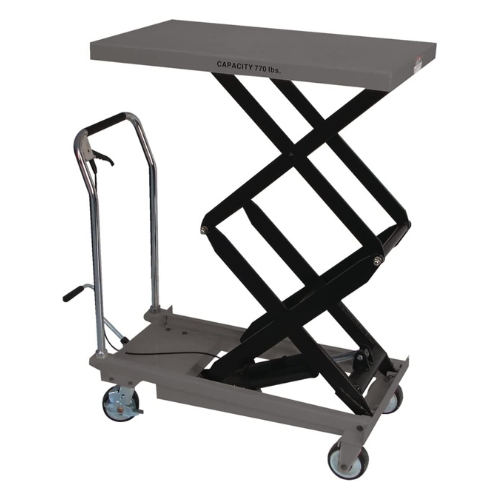

Jet 140778 DSLT-770 Double Scissor Lift Table, Steel, 770 lb Capacity
- The Jet 140778 DSLT-770 Double Scissor Lift Table is a heavy-duty steel lift table designed for material handling in shops, warehouses, and factories. It provides a 770 lb load capacity, a maximum lift height of 51.1 inches, and a hydraulic foot pump system for efficient lifting and lowering.
- Features:
- Hydraulic foot pump for controlled, hands-free lifting and lowering.
- Overload protection ball valve prevents exceeding rated capacity.
- Top-stroke release valve avoids overextension of the cylinder.
- Durable steel frame and table construction ensures long service life under heavy loads.
- Four 5-inch wheels (two swivel with brakes, two fixed) provide mobility and secure positioning.
- Specifications:
- Manufacturer: Jet Tools
- Part Number: 140778 (Model DSLT-770)
- Material: Steel
- Capacity: 770 lb
- Minimum Height: 13.6 inches
- Maximum Lift Height: 51.1 inches

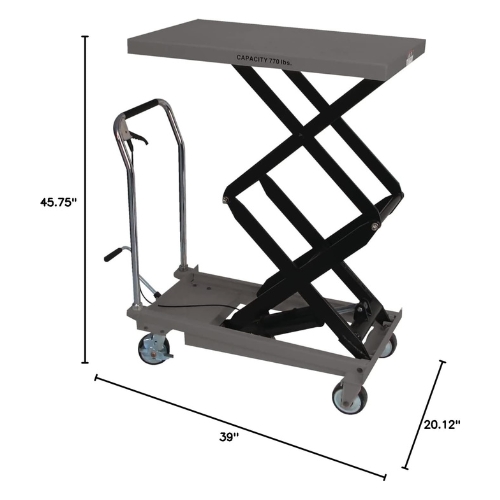

- Table Size: 35.6 inches x 20.1 inches
- Overall Length: 45.8 inches
- Handle Height: 39 inches
- Wheel Diameter: 5 inches
- System Compatibility/Application: Designed for lifting, transporting, and positioning heavy loads in material handling, shop, and industrial environments
- The Jet 140778 DSLT-770 is also referred to as the Jet Double Scissor Hydraulic Lift Table or Jet 770 lb Hydraulic Lift Table.
The Jet 140778 DSLT-770 Double Scissor Lift Table combines a robust steel frame, precise hydraulic lifting, and safety features such as overload and top-stroke protection. With smooth-rolling wheels and a 770 lb capacity, it is ideal for material handling in industrial and workshop environments.
Q: What is the lifting range of this table?
A: The table lowers to 13.6 inches and raises to a maximum height of 51.1 inches.
Q: How is the lift operated?
A: The table is operated with a hydraulic foot pump for raising and a controlled release valve for lowering.
Q: What type of wheels are included?
A: The table includes two fixed and two swivel wheels, with brakes on the rear wheels for secure placement.
