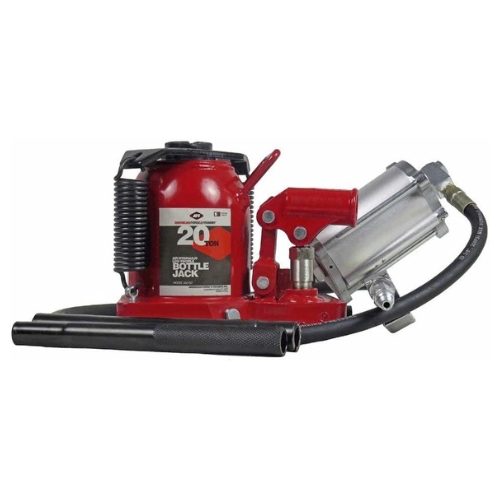

AFF 5621SD Air and Hydraulic Bottle Jack, Heavy-Duty Steel, 20-Ton Capacity, Low Profile 7.01"-12.76"
- The AFF 5621SD is a heavy-duty steel air and hydraulic bottle jack with a 20-ton lifting capacity, designed for low profile applications. It features a welded tank and frame, reinforced base, and dual operation (air or manual), making it suitable for heavy trucks, fleet maintenance, and industrial equipment in confined spaces.
- Features:
- Low profile design with a minimum height of 7.01 inches for use under low-clearance vehicles.
- Maximum lift height of 12.76 inches with a 3.35 inch stroke range.
- Welded tank and frame provide strength and reliability under demanding conditions.
- 1-1/8 inch thick steel base ensures stability even on uneven shop floors.

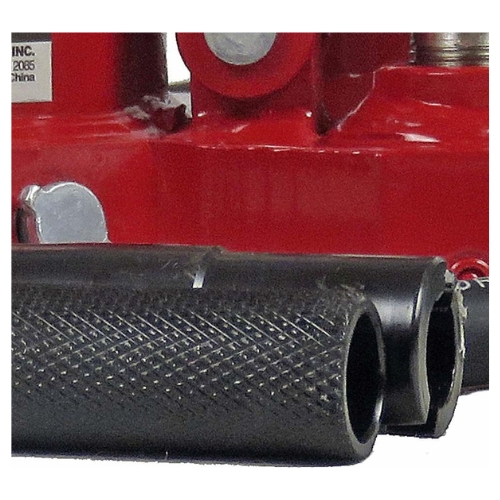

- Operates with shop air or manually using the included handle for flexibility.

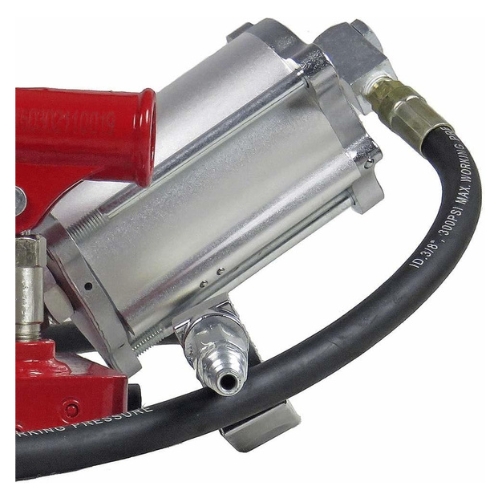

- Hose connection with swivel improves positioning during operation.
- Specifications:
- Manufacturer: AFF (American Forge & Foundry)
- Part Number: 5621SD
- Material: Steel
- Capacity: 20 tons
- Low Height: 7.01 inches
- Maximum Height: 12.76 inches
- Lift Stroke: 3.35 inches
- Base Dimensions: 5.70 x 9.00 inches
- Base Thickness: 1-1/8 inches
- Weight: 36 pounds
- System Compatibility/Application: Ideal for lifting heavy-duty trucks, buses, farm, and industrial equipment where low clearance operation is required
- The AFF 5621SD may also be referred to as a 20-Ton Super Duty Low Profile Air and Hydraulic Bottle Jack or Heavy-Duty Steel Low Clearance Bottle Jack.
The AFF 5621SD combines durable steel construction with a low profile design for use in tight clearance environments. Its dual operation system and reinforced structure make it a reliable solution for lifting heavy vehicles and equipment in demanding shop and field applications.
Q: What is the minimum clearance required for use?
A: The AFF 5621SD requires at least 7.01 inches of clearance to fit under a vehicle.
Q: What is the maximum lift height of this jack?
A: It lifts up to 12.76 inches with a total stroke of 3.35 inches.
Q: Does this jack work without air supply?
A: Yes, it includes a manual handle for use when shop air is not available.
